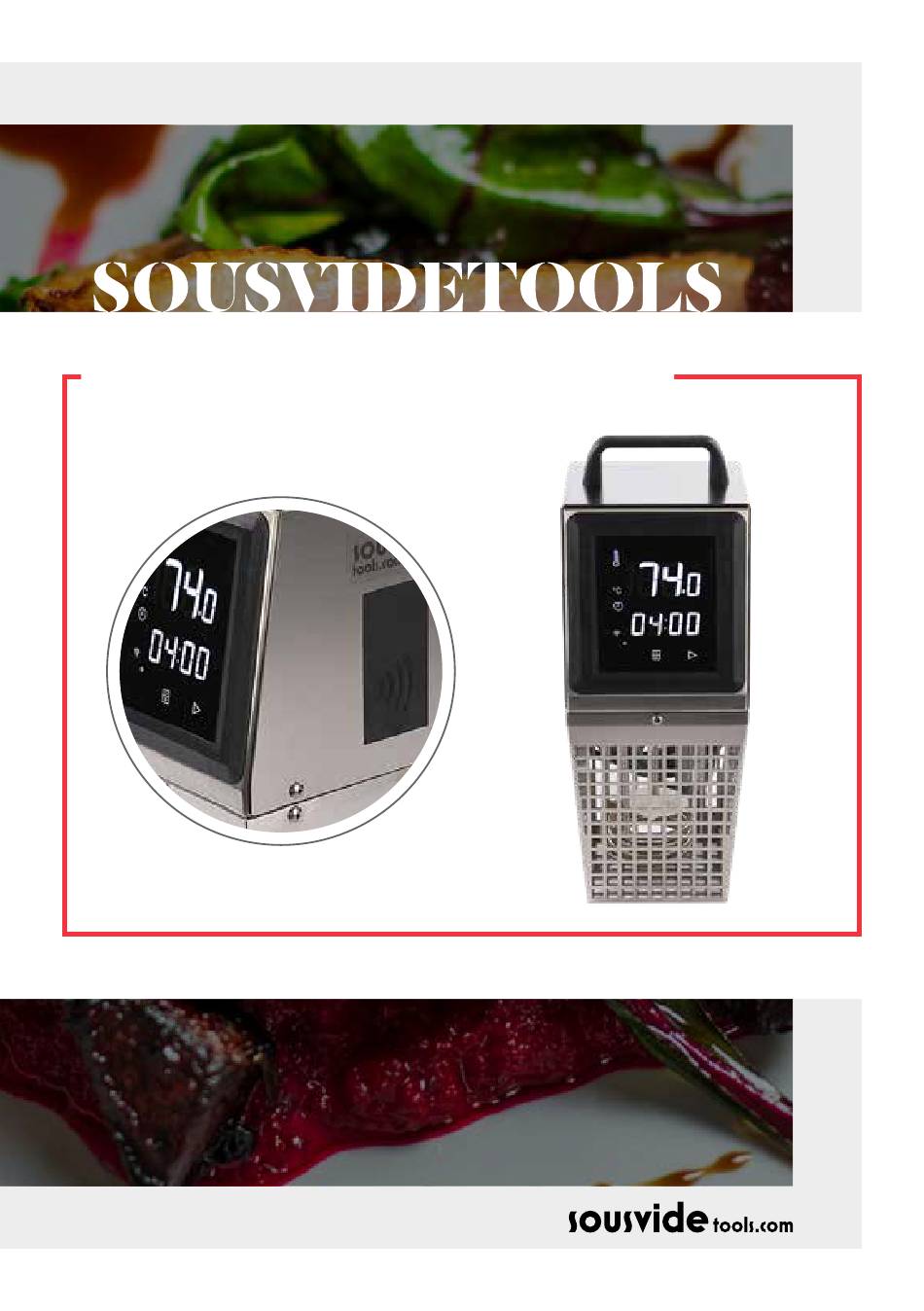

- Page 1 PLATINUM 2. 0 T HE RMA L C IRCU LATO R SVT-01008 I SVT-01008EU USER GUIDE...
-
Page 2: I M P O Rta N T - R E A D B E F O R E U S E
Please read this user manual carefully before using the appliance. GENERA L PR E C AU TIO NS • The SousVideTools Platinum 2.0 Thermal Circulator may be used only by trained staff familiar with the ® safety information given in this manual. -
Page 3: General Description
GENERA L D E SCR IPTI ON The SousVideTools Platinum 2.0 Thermal Circulator is designed and fabricated specifically to guarantee that: ® • all its parts are stable and robustly constructed; • it is easy to handle with its integral handle, which makes it easy to move and transport; • the heating is temperature regulated to high precision;... -
Page 4: Technical Data
TECHNI C AL DATA Citing the "Model", "Serial number" and "year of Manufacture" of the machine facilitates our technical service in responding to your requests. A = Product code and name E = Weight B = Power supply F = Amperage C = International Protection G = Serial number D = Motor frequency... - Page 5 TECHNI C AL DATA Fig. no. 3 - Dimensions and clearances Model Units SVT-01008 Power watt 2000 Power supply 230V/50Hz Temperature °C / °F 2 4÷99,9 °C / 75,2÷199,9 °F A x B 118 x 120 C x D 152 x 176...
-
Page 6: Dis Po S In G O F Pac Kagi Ng
IN STAL L AT IO N POSITIONING The SousVideTools Platinum 2.0 Thermal Circulator has been designed to be used with normal cooking tanks ® (1/1 or 2/1 H. 200, as shown in fig. 5), and in general with tanks of capacity up to 43 litres and a maximum depth of 200mm. -
Page 7: Wiring Diagram
WIRING DIAGRAM Fig. no 6 USING T HE M AC HINE It is good practice to first load the bags containing the product to be cooked and only then complete filling of the tank with water, so as to avoid exceeding the maximum allowed level. Fill the water to no more than the maximum level, and add some vinegar to prevent scale and deposits building up, to the amount of 1/2 cup per 40 litres of water. - Page 8 CONTROLS TOUCH SCREEN DISPLAY: displays the temperature in °C / °F, the time, the 10 preset programs and whether the heating element is on or not. All these values can be edited on the display itself. START button: hold down for 3 seconds to start the cooking cycle. The button flashes during the cycle.
-
Page 9: Pro G Ra M T Ypes
PRO G RA M T YPES To access the touch-screen display function, check that the master switch is set to ON, that the desired unit of measurement for the temperature has been set (°Celsius or °Fahrenheit), and make sure that you have filled or added water to the tank up to the maximum level indicated on the sides of the machine. The Platinum 2.0 operates in two modes: manual cooking, with the cooking temperature and time set manually;... -
Page 10: Pos S Ib Le Er Ro R S
POS S IB LE ER RO R S The Platinum 2.0 can display the following error codes: H2O Low: the alarm signals that the level of the water in the tank is too low. The machine will emit a buzzer. TO RESET IT, ADD WATER INTO THE TANK;... -
Page 11: Maintenance
MAINTE NAN CE Before servicing the machine, pull its plug out of the power socket to isolate the machine completely from the rest of the system. POWER CABLE Check the condition of the cable regularly and call the SERVICE CENTRE if it needs replacing. SCRAPPI NG &... - Page 12 Gastronomy Plus LTD UK: Central Barn, Claughton Business Park, Hornby Road, Claughton, Lancaster, LA2 9JX 0800 678 5001 01524 770 060 enquiries@sousvidetools.com www.sousvidetools.com EU: c/o ProductIP BV Authorized Representative Dept. Galvanistraat 1, 6716 AE Ede, Netherlands...
