Summary of Contents for Kaysun KSDA-35 DVR14

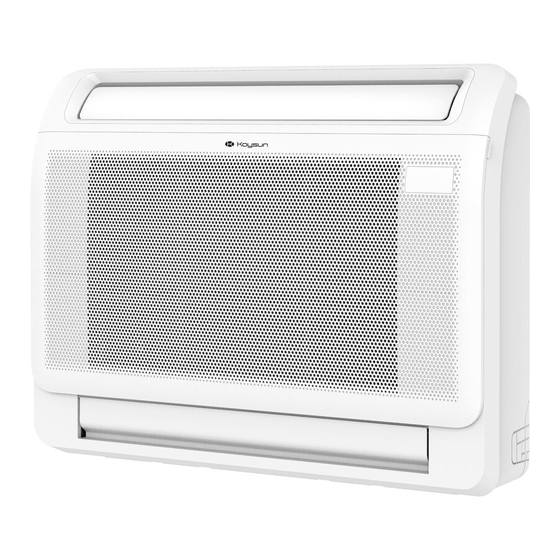

- Page 1 TECHNICAL MANUAL Double Flow Console KSDA-35 DVR14 KSDA-52 DVR14 KSD-35 DR14 KSD-52 DR14 KUE-35 DVR13 KUE-52 DVR13 Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Page 1. Specifications ....................3 Model Reference General Specifications Dimensional Drawings Centre of Gravity Electrical Wiring Diagrams Refrigerant Cycle Diagrams Air Velocity and Temperature Distributions Capacity Tables Capacity Correction Factor for Height Difference Noise Criterion Curves Electrical Characteristics 2. -
Page 3: Specifications
Specifications Contents Model Reference ....................4 General Specifications ...................5 Dimensional Drawings ..................7 Centre of Gravity ....................10 Electrical Wiring Diagrams ..................11 Refrigerant Cycle Diagrams ................15 Air Velocity and Temperature Distributions ............16 Capacity Tables ....................18 Capacity Correction Factor for Height Difference ..........24 Noise Criterion Curves ..................25 Electrical Characteristics ..................27... -
Page 4: Model Reference
1. Model Reference Refer to the following table to determine the specific indoor and outdoor unit model number of your purchased equipment. Indoor Unit Model Outdoor Unit Model Capacity (Btu/h) Power Supply KSD-35 DR14 KUE-35 DVR13 1Phase, 220-240V~, 50Hz KSD-52 DR14 KUE-52 DVR13 ... -
Page 5: General Specifications
2. General Specifications Indoor model KSD-35 DR14 KSD-52 DR14 Outdoor model KUE-35 DVR13 KUE-52 DVR13 Power supply (Indoor ) V- Ph-Hz 220-240-1-50 220-240-1-50 Power Supply (Outdoor) V-Ph-Hz 220-240-1-50 220-240-1-50 Max. input consumption 1850 2950 Max. current 13.5 Model ZKFP-13-8-136 ZKFP-13-8-136 Insulation class Indoor fan motor IP rating... - Page 6 Number of rows Tube pitch(a)x row pitch(b) 21x22 21x22 Fin spacing Outdoor coil Fin type (code) Hydrophilic aluminum Hydrophilic aluminum ɸ 7,Inner groove tube ɸ 7,Inner groove tube Tube outside dia.and type Coil length x height x width 745*504*22 860*504*44 Number of circuits Outdoor air flow m3/h...
-
Page 7: Dimensional Drawings
3. Dimensional Drawings Indoor Unit Page 7 ... - Page 8 Outdoor Unit KUE-35 DVR13 Page 8 ...
- Page 9 KUE-52 DVR13 Page 9 ...
-
Page 10: Centre Of Gravity
4. Centre of Gravity KUE-35 DVR13 KUE-52 DVR13 Page 10 ... -
Page 11: Electrical Wiring Diagrams
5. Electrical Wiring Diagrams Indoor unit Abbreviation Paraphrase Yellow-Green Conductor CAP1 Indoor Fan Capacitor Indoor Fan PUMP PUMP LIVE NEUTRAL TO CCM Comm.Bus Central Controller Indoor Room Temperature Coil Temperature of Indoor Heat Exchanger Super High Speed High Speed Page 11 ... - Page 12 KSD-35 DR14, KSD-52 DR14 16022700003468 CODE PART NAME ROOM TEMP.SENSOR PIPE TEMP.SENSOR :This symbol indicates the elementis optional,the actual shape CN12 CN42 CN81 CN23 CN19 shall prevail. L_IN CN15 BLACK MAIN BOARD N_IN YELLOW(WHITE) CN32 CN18 1(L) 2(N) INDOOR UNIT Wi-Fi OUTDOOR UNIT CN1 CN3...
- Page 13 Outdoor Unit Abbreviation Paraphrase CAP1, CAP2, CAP3,CAP4 Capacitor FAN1 Outdoor Fan Motor Contactor CT1, CT2 AC Current Detector COMP Compressor L-PRO, K2 Low Pressure Switch/Shorting Stub High Pressure Switch/Shorting Stub TRANS Power Transformer 10KΩ RESISTANCE/Outdoor Ambient Temperature 10KΩ RESISTANCE/Coil Temperature of Condenser 2-Way Terminal/4-Way Terminal 3-Way Terminal Terminal...
- Page 14 KUE-35 DVR13, KUE-52 DVR13 Page 14 ...
-
Page 15: Refrigerant Cycle Diagrams
6. Refrigerant Cycle Diagrams Pipe Size (Diameter:ø) Piping length (m/ft) Elevation (m/ft) mm(inch) Model Additional Refrigerant Liquid Rated Max. Rated Max. 9.52(3/8) 6.35(1/4) 5/16.4 25/82 10/32.8 12g/m (0.13oz/ft) 12.7(1/2) 6.35(1/4) 5/16.4 30/98.4 20/65.6 Page 15 ... -
Page 16: Air Velocity And Temperature Distributions
7. Air Velocity and Temperature Distributions Discharge Angle 70°(Upper)/ 0°(Lower) Cooling airflow velocity distributions Cooling temperature distributions Page 16 ... - Page 17 Discharge Angle 20°(Upper)/ 0°(Lower) Heating airflow velocity distributions Heating temperature distributions Page 17 ...
-
Page 18: Capacity Tables
8. Capacity Tables Cooling ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 3.71 3.72 3.75 3.78 3.90 3.96 3.96 3.99... - Page 19 3.78 3.78 3.81 3.84 3.96 3.96 3.96 3.99 4.06 4.06 4.06 4.06 4.31 4.31 4.31 4.31 0.74 0.85 0.98 1.00 0.58 0.69 0.78 0.88 0.51 0.61 0.70 0.79 0.34 0.42 0.51 0.60 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68...
- Page 20 ID WB 16.0 18.0 19.0 22.0 INDOOR (℃) OUTDOOR AIRFLOW DB(℃) ID DB (CMH) 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 23.0 25.0 27.0 29.0 (℃) 5.24 5.25 5.25 5.31 5.51 5.60 5.60 5.60 5.63 5.63 5.63 5.63...
- Page 21 5.44 5.44 5.50 5.56 5.72 5.72 5.72 5.72 5.84 5.84 5.84 5.84 6.22 6.22 6.22 6.22 0.72 0.82 1.00 1.00 0.57 0.67 0.76 0.98 0.50 0.59 0.69 0.77 0.34 0.42 0.50 0.59 1.04 1.04 1.04 1.04 1.04 1.04 1.04 1.04 1.03 1.03 1.03...
- Page 22 Heating [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -15.0...
- Page 23 [SI_Unit] HEATING PERFORMANCE AT INDOOR DRY BULB TEMPERATURE TC:TOTAL CAPACITY IN KILOWATTS (KW) PI:TOTAL POWER IN KILOWATTS (KW) INDOOR OUTDOOR AIRFLOW (CMH) Indoor Conditions (DB °C ) Indoor Conditions (DB °C ) DB(°C) 16.0 20.0 22.0 24.0 16.0 20.0 22.0 24.0 -15.0 4.30...
-
Page 24: Capacity Correction Factor For Height Difference
9. Capacity Correction Factor for Height Difference Capacity (Btu/h) Pipe Length (m) Cooling 0.973 0.948 0.936 Indoor Upper than Outdoor 0.995 0.983 0.958 0.945 Height difference 1.000 0.988 0.963 0.950 H (m) 1.000 0.988 0.963 0.950 Outdoor Upper than Indoor 0.988 0.963 0.950... -
Page 25: Noise Criterion Curves
10. Noise Criterion Curves 10.1 Indoor Unit Notes: -Sound measured at 1.5m away from the noisiest location of the unit. -Data is valid at free field condition -Data is valid at nominal operation condition -Reference acoustic pressure OdB = 20µPa -Sound level will vary depending on a range of factors such as the construction -(acoustic absorption coefficient) of particular room in which the equipment is installed. - Page 26 10.2 Outdoor Unit Note: H= 0.5 × height of outdoor unit Notes: -Sound measured at 1.0m away from the center of the unit. -Data is valid at free field condition -Data is valid at nominal operation condition -Reference acoustic pressure OdB=20µPa -Sound level will vary depending on arrange off actors such as the construction (acoustic absorption coefficient) of particular room in which the equipment is installed.
-
Page 27: Electrical Characteristics
11. Electrical Characteristics Capacity (Btu/h) Phase 1-phase 1-phase Frequency and Voltage 220-240V, 50Hz 220-240V, 50Hz Oudoor Unit Power Power Wiring (mm 3×1.5 3×2.5 Circuit Breaker/ Fuse (A) 20/16 20/16 Weak Electric Signal)(mm Indoor/Outdoor 4×1.0(4x2.5 with auxiliary 4×1.0(4x2.5 with auxiliary Connecting Wiring Strong Electric Signal(mm electric heater) electric heater) -
Page 28: Product Features
Product Features Contents Operation Modes and Functions ................29 Abbreviations ....................29 Safety Features ....................29 Display Function ..................29 Fan ......................29 Cooling Mode .....................29 Heating Mode (Heat pump models) .............30 Auto Mode ....................32 Drying Mode ....................32 Forced operation Function ................32 1.10 Timer Function ....................32 1.11 Sleep Function .....................32 1.12 Auto-Restart ....................33 1.13 8°C Heating ....................33... - Page 29 1. Operation Modes and Functions activated and the indoor fan will operate after a period of setting time or the louver is in place. • If the unit is in heating mode, the indoor fan is Abbreviation regulated by the anti-cold wind function. Unit element abbreviations Compressor preheating Preheating is automatically activated when T4 sensor is...
- Page 30 Fan Mode 1) In cooling mode, the indoor fan operates continuously. The fan speed can be set to 1%-100%, or low, When fan mode is activated: medium, high and auto. • The outdoor fan and compressor are stopped. 2) Auto fan action in cooling mode: •...
- Page 31 1.5.5 Evaporator Temperature Protection • Off: Compressor stops. • Decrease: Decrease the running frequency to the lower level per 1 minute. • Hold: Keep the current frequency. • Resume: No limitation for frequency. Heating Mode(Heat Pump Units) 1.6.1 Compressor Control ΔTE1=0 1) Reach the configured temperature 2) Auto fan action in heating mode:...
- Page 32 Drying Mode the indoor and outdoor motor will cease operation, the defrost light of the indoor unit will turn on, and the “ ” symbol is displayed. • In drying mode, AC operates the same as auto fan in cooling mode. •...
- Page 33 1.15 Silence time is reached, the timer LED switches off and the unit running mode remains unchanged. • Press “Silence” on the remote control to enable the • The timer uses relative time, not clock time SILENCE function. While this function is active, the compressor frequency is maintained at a lower level 1.11 Sleep function than F3.
- Page 34 Installation Contents Accessories ........................35 Installation Overview ..................37 Location Selection ....................38 Indoor Unit Installation ..................39 Outdoor Unit Installation ..................41 Drainage Pipe Installation ...................42 Refrigerant Pipe Installation ................43 Vacuum Drying and Leakage Checking ..............44 Additional Refrigerant Charge ................45 Engineering of Insulation ...................46 Engineering of Electrical Wiring ................47 Test Operation .....................47...
-
Page 35: Accessories
Accessories Name Shape Quantity Remote controller Battery (some models) Wired remote controller(some models) Manual Air freshening filter (some models) Soundproof/insulation sheath (some models) Heat insulation pipe 6(depending on Anchor models) 6(depending on Mounting plate fixing screw models) Copper nut Hook Drain joint (some models) Seal ring (some models) Magnetic ring (wrap the electric wires S1 &... - Page 36 Transfer connector(Φ12.7-Φ15.9)/(Φ0.5in-Φ0.63in)(Packed with the indoor unit) NOTE: Pipe size may differ from appliance to appliance. To meet different pipe size requirements, sometimes (on some models) the pipe connections need a transfer connector installed on the outdoor unit . Transfer connector(Φ6.35-Φ9.52)/(Φ0.25in-Φ0.37in)(Packed with the indoor unit) NOTE: Pipe size may differ from appliance to appliance.
-
Page 37: Installation Overview
1. Installation Overview Installation Order Install the indoor unit Install the outdoor unit Install the drainpipe Evacuate the refrigeration Connect the wires Connect the refrigerant system pipes Perform a test run Page 37 ... -
Page 38: Location Selection
2. Location selection Unit location selection can refer to installation manual. DO NOT install the unit in the following locations: • Where oil drilling or fracking is taking place. • Coastal areas with high salt content in the air. • Areas with caustic gases in the air, such as near hot springs. -
Page 39: Indoor Unit Installation
3. Indoor Unit Installation NOTE: It is recommended to fx it on the wall according to the hanging hole indicated by the arrow on the mounting 3.1 Service space for indoor unit plate. Mounting plate must be installed horizontally. ≥100mm Mounting plate Tapping screw... - Page 40 open the piping cover plate. Two buckles Refrigerant pipe Drain-pipe Power cord NOTE: In order to drain smoothly, the position of the drain pipe must refer to the above figure when discharging the right pipe. • Installation with skirting line 2.
-
Page 41: Outdoor Unit Installation
4. Outdoor unit installation(Side deforming. Discharge Unit) Do not touch the fan with hands or other objects. Do not lean it more than 45, and do not lay it sidelong. Service space for outdoor unit Make concrete foundation according to the specifications of the outdoor units. -
Page 42: Drainage Pipe Installation
5. Drainage Pipe Installation For Vertical drainage pipe (The following table is for reference) Install the drainage pipe as shown below and take measures against condensation. Improperly installation Reference could lead to leakage and eventually wet furniture and Allowable value of inner belongings. -
Page 43: Refrigerant Pipe Installation
6. Refrigerant Pipe Installation Maximum length and drop height Ensure that the length of the refrigerant pipe, the number of bends, and the drop height between the indoor and • The correct installation will not cause converse outdoor units meets the requirements shown in the water flow and the slope of the branch pipes can be following table. -
Page 44: Vacuum Drying And Leakage Checking
• 4.Cut the selected pipe with pipe cutter Be sure to use two spanners and proper torque to fasten the nut, too large torque will damage the • Make the section flat and smooth. bellmouthing, and too small torque may cause leakage. -
Page 45: Additional Refrigerant Charge
8. Additional Refrigerant Charge and keep vacuum pump running for 1hour (vacuum degree of vacuum pump shall be reached -755mmHg). • After the vacuum drying process is carried out, the additional refrigerant charge process need to be 2. If the vacuum degree of vacuum pump could not reach performed. -
Page 46: Engineering Of Insulation
9. Engineering of Insulation insulation and cause easy aging of the material. Insulation of drainage pipe Insulation of refrigerant pipe 1. Operational procedure of refrigerant pipe 1. Operational procedure of refrigerant pipe insulation insulation Select the suitable pipe → insulation (except joint section) Cut the suitable pipe →... -
Page 47: Engineering Of Electrical Wiring
10. Engineering of Electrical Wiring 11. Test Operation 10.1 Highlights of electrical wiring 11.1 The test operation must be carried out installation after the entire installation has been completed. • All field wiring construction should be finished by qualified electrician. •... - Page 48 Drainage Test a. Ensure the drainpipe flows smoothly. New buildings should perform this test before finishing the ceiling. b. Remove the test cover. Add 2000ml of water to the tank through the attached tube. c.Turn on the main power switch and run the air conditioner in COOL mode.
