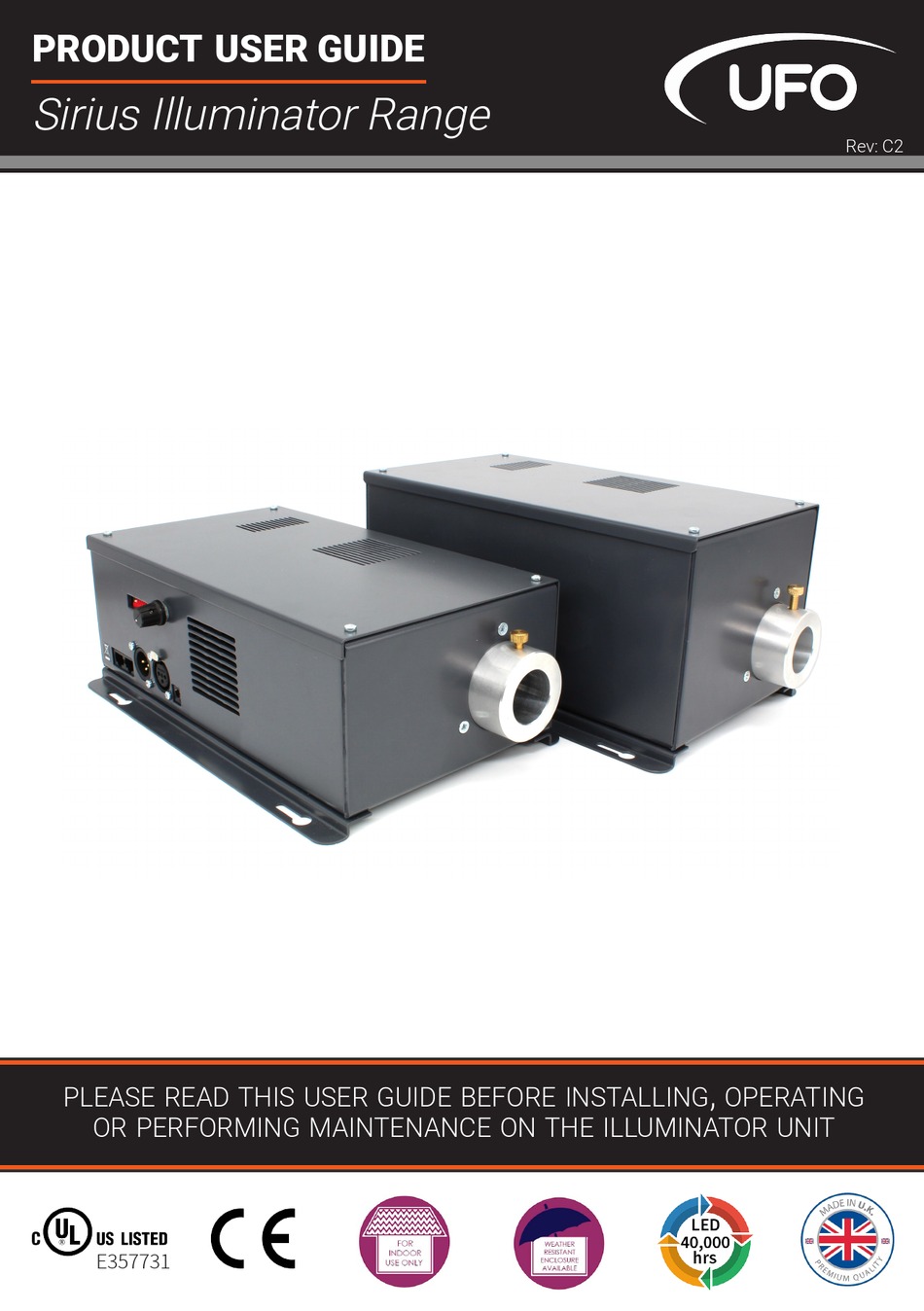

PRODUCT USER GUIDE
Sirius Illuminator Range
Rev: C2
,
PLEASE READ THIS USER GUIDE BEFORE INSTALLING
OPERATING
OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT
E357731

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirius SIRCW and is the answer not in the manual?

Questions and answers

Summary of Contents for UFO Sirius SIRCW

  • Page 1 PRODUCT USER GUIDE Sirius Illuminator Range Rev: C2 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
  • Page 2 INTRODUCTION Thank you for purchasing this UFO illuminator/luminaire. To ensure that the illuminator is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit. Please keep this User Guide for future reference. This User Guide is laid out in three sections...
  • Page 3: Model Types

    7.5rpm - channel 1 (receiving) 8. Sensor - 0-10v decorative wheel control, snap colors and adjustable speed from stop up to 7.5rpm - channel 1 (receiving) 9. 0-10V dimming – channel 2 (receiving) - two versions, standard and emergency light UFO LIGHTING...
  • Page 4 INTRODUCTION MODEL TYPES CONT Model Description UFOSIRCW White light LED ­ 5500K ­ manual, DMX or 0­10V dimming UFOSIRSW White light LED ­ 5300K ­ manual, DMX or 0­10V dimming UFOSIRNW White light LED ­ 4000K ­ manual, DMX or 0­10V dimming UFOSIRWW White light LED ­...
  • Page 5: Installation

    The wall mounting brackets are supplied as a pair - one left and one right hand. Position the brackets over the holes that have been left empty by the rubber feet and fix in place with the removed screws. The illuminator can now be fixed to the mounting surface. UFO LIGHTING...
  • Page 6 INSTALLATION CONNECTION FOR LOCAL MANUAL OPERATION There are 2 connections required – the fiber port and the mains supply cable. The fiber port should be connected first. Connect and secure the fiber optic connector into the collar and secure using the M5 locking screw. Connect the PSU to the DC input jack socket on the illuminator, and connect the IEC plug to the PSU.
  • Page 7 Always “daisy chain” a DMX universe. Never use a T joint in a DMX universe unless using an approved interface. It is always recommended that the last illuminator output in the DMX universe or cable run be terminated with a 120 ohm resistor across DMX+ and DMX-. UFO LIGHTING...
  • Page 8: Operation

    OPERATION FOR 0-10 V OPERATION CONNECTION There are 3 connections required – the fiber port, the mains supply cable and the 0-10V cable. The fiber port should be connected first. Connect and secure the fiber optic connector into the aluminium collar and secure using the M5 locking screw. Connect the PSU to the DC input jack socket on the illuminator, and connect the IEC plug to the PSU.
  • Page 9: Manual Operation

    (see table below) using the push button manual motor control on the side panel. Note: When manually selecting stop (switch position 6) the decorative wheel will stop instantly on a random color (color wheel) or a random section of the twinkle wheel Switch Position Speed (RPM) Stop UFO LIGHTING...
  • Page 10: Dmx Operation

    OPERATION MANUAL OPERATION DECORATIVE COLOR WHEEL CONTROL WITH SENSOR During normal manual decorative operation the illuminator can be dimmed from 0 to 100% using the manual dimming control and the motor can be controlled from stop to 4 speeds (see table below) using the push button manual motor control on the side panel.
  • Page 11 Addresses are additive ­ for example, switches 2,5,7 on = address 082 Alternatively use the online calculator from link below: http://www.sabretechnology.co.uk/calc.asp WHITE LIGHT DIMMING The illuminator can be dimmed on DMX channel 1 and controlled on DMX channel 3 as detailed in Table A. DMX Channel 2 is redundant. UFO LIGHTING...
  • Page 12 OPERATION DMX OPERATION DECORATIVE COLOR OR TWINKLE WHEEL CONTROL NO SENSOR For this configuration of a decorative wheel without sensor: • The Twinkle wheel is solid with no cut out segment. The wheel in motion will give a continu- ous twinkle effect. When stopped the wheel will remain in front of the LED array giving an ob- structed white light output •...
  • Page 13 Yellow ­ snap to color (color 2) Decorative wheel White ­ snap to color (color 1) Decorative wheel 128­188 Decorative wheel 189­255 Fast to slow rotation ctr clockwise LED and fan 0­250 LED and fan on LED and fan 251­255 LED and fan off UFO LIGHTING...
  • Page 14 OPERATION DMX OPERATION SIRIUS DMX CHANNELS TABLE C Each Sirius occupies 3 DMX channels as detailed below: Channel Function Value Description Dimming 0­255 From off at 0 to bright at 255 Wheel at stop at cut out Twinkle wheel segment giving full white light Varying backwards and forward Twinkle wheel 1­255...
  • Page 15 Minimum light output ­ normal Minimum Light dimming control Maximum light output ­ normal 0Maximum Light dimming control Note: In this configuration when the mains supply to the 0-10V controller fails, the illuminator will illuminate fully as an emergency light. UFO LIGHTING...
  • Page 16 OPERATION 0-10 V OPERATION DECORATIVE COLOR OR TWINKLE WHEEL CONTROL NO SENSOR Once the Sirius illuminator has been set up and connected as detailed above the illuminator decorative wheel can be controlled with a receiving 0-10V signal from stop at 0V to 7.5rpm at Note: For this configuration the twinkle wheel is solid without a cut out segment.
  • Page 17: Maintenance Log

    MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. UFO LIGHTING...
  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Probable Cause(s) Remedy Mains supply off Check supply and reinstate Unit is dead ­ no light output and Loose mains plug Check plugs PSU power Plug blown fuse (UK) Check fuse & replace if necessary indicator is out PSU failed Replace PSU Unit is dead ­...
  • Page 19: Technical Specification

    Min Ambient Temperature ­10°C Max Ambient Temperature +45°C Material Aluminium Finish Grey powdercoat White light ­ 278mm x 152mm x 127mm / 2.22kg Dimensions (L x W x H) / Weight Decorative ­ 278mm x 152mm x 127mm / 2.41kg UFO LIGHTING...
  • Page 20 INSTALL United Kingdom • United States • Germany • Europe • Universal Fiber Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
