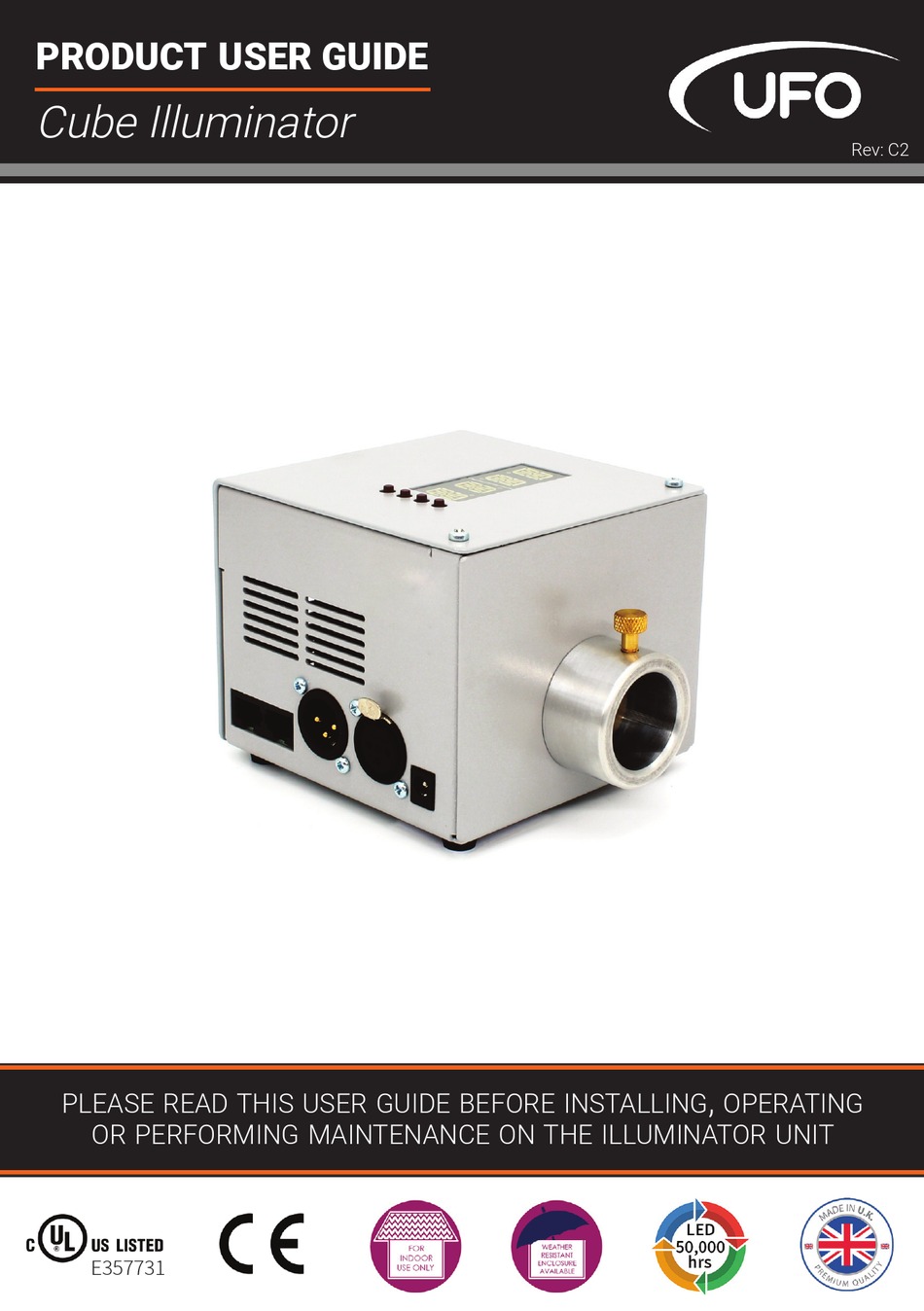

- Page 1 PRODUCT USER GUIDE Cube Illuminator Rev: C2 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
- Page 2 INTRODUCTION Thank you for purchasing this UFO illuminator/luminaire. To ensure that the illuminator is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit. Please keep this User Guide for future reference. This User Guide is laid out in three sections...
- Page 3 If no light is produced consult the troubleshooting section. If DMX control is required, connect up the DMX control cables to the XLR sockets on the rear of the illuminator. The pin out details for the plugs are shown right. UFO LIGHTING...
- Page 4 INSTALLATION CONNECTIONS As well as the standard XLR connectors for DMX connection, the Cube is also fitted with RJ45 connectors which also offer DMX capability. Details of these are below: Pin No: White White White White Color Orange Blue Green Brown Orange Green...
- Page 5 DMX cables. The Master color sequences are controlled by a RF remote control and again the Slave will mimic the Master illuminator. DMX MODE In this mode the illuminator (set to DMX) can be controlled either by another Cube in Master mode or by a DMX controller. UFO LIGHTING...
- Page 6 OPERATION CUBE REMOTE CONTROL UNIT Description Details Comments Power 2 x AAA batteries Measured in free space, may be attenuated by Range 30 metres obstructions or other RF devices Frequency 2.4GHz Approved for use in UK, USA and Europe BATTERIES With the illuminator powered up as described above, remove the rear cover on the remote control...
- Page 7 Light Source will “blink” 9 times indicating that the Remote Controller is unmatched from the Light Source. Note: More than one Light Source controlled by one Remote Controller will eventually run out of sync with each other (color cycle mismatch UFO LIGHTING...
- Page 8 OPERATION REMOTE CONTROL MODES AND FUNCTIONS Mode Brightness Speed Comment Touch color ring then Static white Adjustable Non adjustable mode + to enter this mode at any time Color ring control. Touch White and col Adjustable Non adjustable color ring to enter this ors mixed mode at any time All colors fade...
- Page 9 Note: Where a illuminator has more than one remote control, reduction in operating range may be experienced when both (or multiple) remote controls are used simultaneously. Description Date Max Range Controller 1 Controller 2 Controller 3 Dead Areas UFO LIGHTING...
- Page 10 OPERATION PROGRAMMING CUBE USER GUIDE...
- Page 11 OPERATION PROGRAMMING UFO LIGHTING...
- Page 12 OPERATION STANDALONE OPERATION Prog Function Effect Color 1 White Color 2 Color 3 Green Color 4 Blue Color 5 Yellow Color 6 Cyan Color 7 Magenta Snap color change between Display color for adjustable time (display colors 1,2,3,4,5,6,7 timer) and then snap to next color Snap color change between Display color for adjustable time (display colors 2,3,4,5,6,7...
- Page 13 OPERATION DMX CHANNEL OPERATION The Cube DMX occupies 6 DMX channels as detailed below. Channel Function Values 0225 Green 0225 Blue 0225 White 0225 Redundant LED & Fan 0250 on / 251255 off MAINTENANCE Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when.
- Page 14 TROUBLESHOOTING Problem Probable Cause(s) Remedy Main supply off Check supply and reinstate Illuminator dead, LED indicator on PSU Loose mains plug Check plug not illuminated PSU faulty Replace PSU Unit dead – LED Loose DC plug Check plug indicator on PSU illu minated, LCD display PSU faulty Check PSU output / replace PSU...
- Page 15 Mains Running Current 0.2A @240Vac Mains Voltage VA rating 50VA External PSU Type Meanwell, 24V, 2.5A, 60W Fan Type Sunon, 60mm, 10dBA RF Remote Frequency 2.4GHz RF Remote Range 30m, depending on environment RF Remote Power 2 x AAA batteries (supplied) UFO LIGHTING...
- Page 16 United Kingdom • United States • Germany • Europe • Universal Fiber Optics Ltd Universal Fiber Optic Lighting USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
