USER MANUAL

Induction Cooker

Model No. BIA64CG-BIA64CG-F

V2 May 2022

Table of Contents

Need help?

Do you have a question about the BIA64CG and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BIA64CG

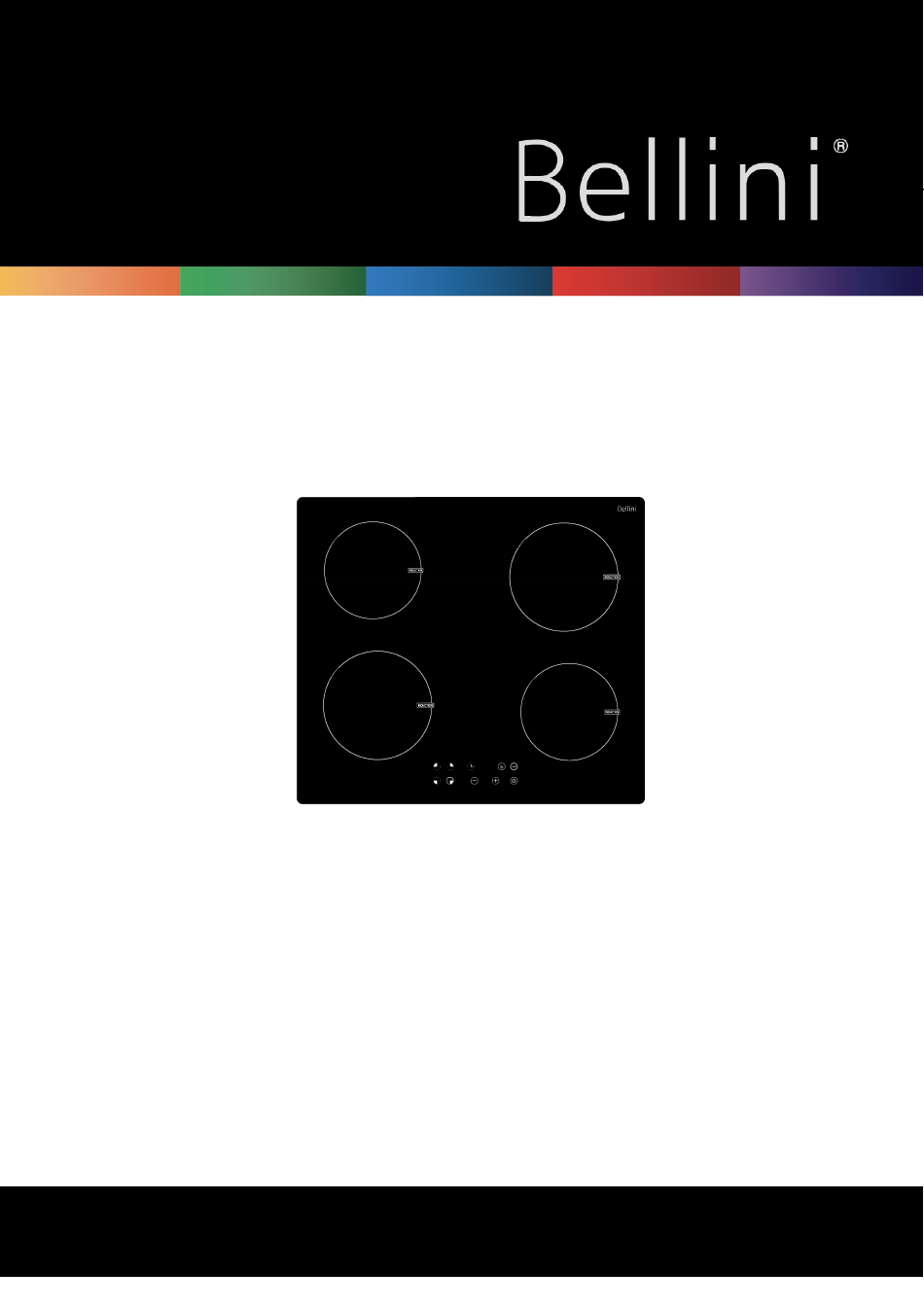

Page 1 USER MANUAL Induction Cooker Model No. BIA64CG-BIA64CG-F GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust www.belliniappliances.com.au V2 May 2022 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust www.belliniappliances.com.au...
Page 2 Thank you. Thank you for choosing Bellini Appliances. Bellini prides itself on ‘affordable living’ making sure there is not compromise in your favorite room..The Kitchen. This product will carry a 3 year in home warranty. For all warranty and technical queries please phone:...
Page 3: Table Of Contents
Contents Safety warnings…………………………………………………..…………………………..2~4 Description of the appliance…………………………………………………………...5~11 Installation …………………………..………………………..…….…..……..……..………12~16 Before using the new hob……………………………………………………..………..17~18 Care and cleaning………………………………………………………………………..19~20 Troubleshooting…………………..………………………………………………………..21~22 Failure display and inspection …………..……………………………………………22 Technical Specification ……………..…………………………………………………….23...
Page 4: Safety Warnings
Safety Warnings Please read the following instructions carefully before using the appliance. Installation Electrical Shock Hazard ·Disconnect the appliance from the mains electricity supply before carrying out any work maintenance on it. ·Connection to a good earth wiring system is essential and mandatory. ·Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
Page 5 providing full disconnection from the power supply. ·WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. ·Failure to install the appliance correctly could invalidate any warranty or liability claims.
Page 6 ·The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. ·Failure to use caution could result in injury or cuts. Important safety instructions ·Never leave the appliance unattended when in use.
Page 7: Description Of The Appliance
understand the hazards involved. ·Children shall not play with the appliance. Cleaning and user maintenance shall not be mad by children without supervision. ·WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.

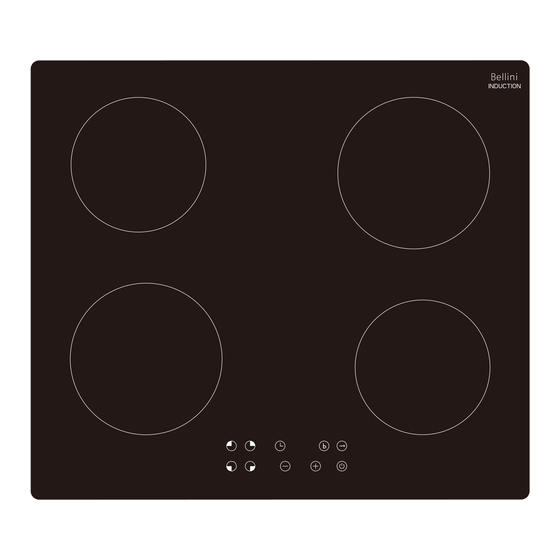

Page 8 1.ON/OFF 2.Child lock 3. Power / Timer regulating control 4.Booster control 5. Timer control 6. Heating zone selection control 7.Timer display Instruction No. Reference Description ON/OFF: Turn ON or OFF the appliance. CHILD LOCK: Touch it one time to lock (display show “Lo”) and long press it for a while to unlock.
Page 9 The bottom left burner. The bottom right burner. Display: It shows power level, error code and hob status. Timer display Using your Induction Hob To Start Cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the state of standby mode.
Page 10 2. Turn the cooking zone off by scrolling down to ‘0’. Make sure the display shows ‘0’. 3. Turn the whole cooktop off by touching the ON/OFF control. 4. Beware of hot surface “H” lights up on the power display to indicate that a particular zone is very hot and should not be touched.
Page 11 · You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). · When the controls are locked, all the controls except the ON/OFF control are disabled. - To lock the controls Touch the key lock control. The timer indicator will show ‘Lo’. - To unlock the controls 1.
Page 12 2. Touch timer key, ‘10’ will show in the timer display and ‘0’ will flash. 3. Set the time by touching the ‘-’ , ‘+’ control of timer. 4. Touch timer control again, then ‘1’ will flash. 5. Set the time by touching the ‘-’ , ‘+’. 6.
Page 13 1. When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks. 2. Once the countdown timer expires, the corresponding zone will switch off.
Page 14: Installation
Heat setting Suitability - delicate warming for small amounts of food - melting chocolate, butter, and foods that burn quickly. 1 - 2 -gentle simmering - slow warming -reheating 3 - 4 -rapid simmering -cooking rice 5 - 6 -pancakes -sauteing 7 - 8 -cooking pasta...
Page 15 D(mm) A(mm) B(mm) X(mm) BIA64CG/-F Under any circumstance, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. Prepare the cut as indicated (see installation dimensions).
Page 16 A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Installing the hob WARNING Risk of cutting. Be careful of cutting edges. Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with space requirements.
Page 17 The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Put a towel or cloth on the work surface. Place the hob face down on the protected surface. Apply the strip seal, supplied with the hob, which is for sealing it onto the work surface.
Page 18 Applicable cabinet material: wood, marble resin etc. A steam cleaner is not to be used. This hob can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.
Page 19: Before Using The New Hob
If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. If the appliance is being connected directly to the mains supply, an omnipolar circuit-breaker must be installed with a minimum gap of 3mm between the contacts.
Page 20 Using the Touch Controls · The controls respond to touch, so you don’t need to apply any pressure. · Use the ball of your finger, not its tip. · You will hear a beep each time a touch is registered. ·...
Page 21: Care And Cleaning
however use pans with smaller diameters than this limit. Care and Cleaning The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you. What? How? Important!
Page 22: Troubleshooting
induction glass cooktops, but the glass, they may be difficult to beware of hot cooking zone remove or even permanently surfaces: damage the glass surface. ·Cut hazard: when the safety 1. Switch the power to cooktop cover is retracted, the blade in a off at the wall.
Page 23 qualified technician. The touch controls The controls are locked. Unlock the controls. See section are unresponsive. ‘Using the hob’ for instructions. The touch controls There may be a slight film Make sure the touch control are difficult to of water over the controls area is dry and use the ball of operate.
Page 24: Failure Display And Inspection
display. for induction cooking. The induction hob Centre the pan and make sure cannot detect the pan that its base matches the size of because it is too small for the cooking zone. the cooking zone or not properly centered on it. The induction hob Technical fault.
Page 25: Technical Specification
Technical Specification Model identification BIA64CG/-F Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 6000W Product Size D x W x H (mm) 590×520×60 Building-in Dimensions A x B (mm) 560×490 Bottom left: 18.0 cm For circular cooking zones or area: diameter of useful Top left: 16.0 cm...
Page 26 Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees. Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company’s specifications.
Page 27 The Australian consumer law requires the following statement with this product Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Page 28 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty. If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent’s traveling...
Page 29 DO NOT SEND IN THIS WARRANTY Fill out the following details and file with your purchase invoice. RETAIN & FILE WITH YOUR RECEIPT Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.
