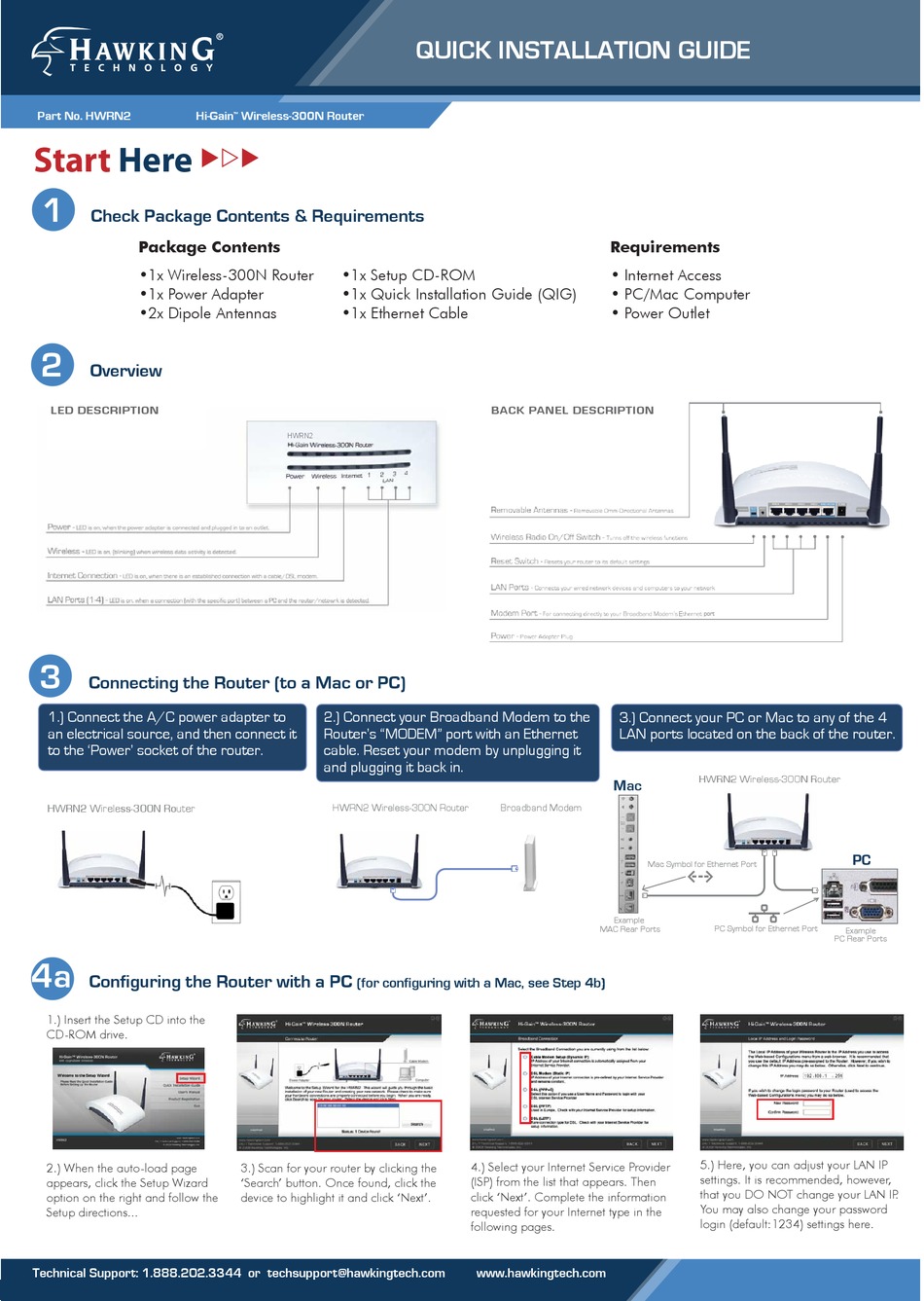

Hawking HWRN2 Quick Installation Manual

Part No. HWRN2 Hi-Gain
Start Here

1
Check Package Contents & Requirements

Package Contents

•1x Wireless-300N Router
•1x Power Adapter
•2x Dipole Antennas
2

Overview

LED DESCRIPTION
3

Connecting the Router (to a Mac or PC)

1.) Connect the A/C power adapter to
an electrical source, and then connect it
to the 'Power' socket of the router.
HWRN2 Wireless-300N Router
4a

Configuring the Router with a PC

1.) Insert the Setup CD into the
CD-ROM drive.
2.) When the auto-load page
appears, click the Setup Wizard
option on the right and follow the
Setup directions...
Technical Support: 1.888.202.3344 or techsupport@hawkingtech.com
Wireless-300N Router
TM
•1x Setup CD-ROM
•1x Quick Installation Guide (QIG)
•1x Ethernet Cable
HWRN2
2.) Connect your Broadband Modem to the
Router's "MODEM" port with an Ethernet
cable. Reset your modem by unplugging it
and plugging it back in.
HWRN2 Wireless-300N Router
(for configuring with a Mac, see Step 4b)
3.) Scan for your router by clicking the
'Search' button. Once found, click the
device to highlight it and click 'Next'.
QUICK INSTALLATION GUIDE
BACK PANEL DESCRIPTION
Broadband Modem
4.) Select your Internet Service Provider
(ISP) from the list that appears. Then
click 'Next'. Complete the information
requested for your Internet type in the
following pages.
www.hawkingtech.com
Requirements
• Internet Access
• PC/Mac Computer
• Power Outlet
E
port
3.) Connect your PC or Mac to any of the 4
LAN ports located on the back of the router.
HWRN2 Wireless-300N Router
Mac
Mac Symbol for Ethernet Port
Example
PC Symbol for Ethernet Port
MAC Rear Ports
5.) Here, you can adjust your LAN IP
settings. It is recommended, however,
that you DO NOT change your LAN IP .
You may also change your password
login (default:1234) settings here.
PC
Example
PC Rear Ports
