Summary of Contents for Redvision RVIP Series

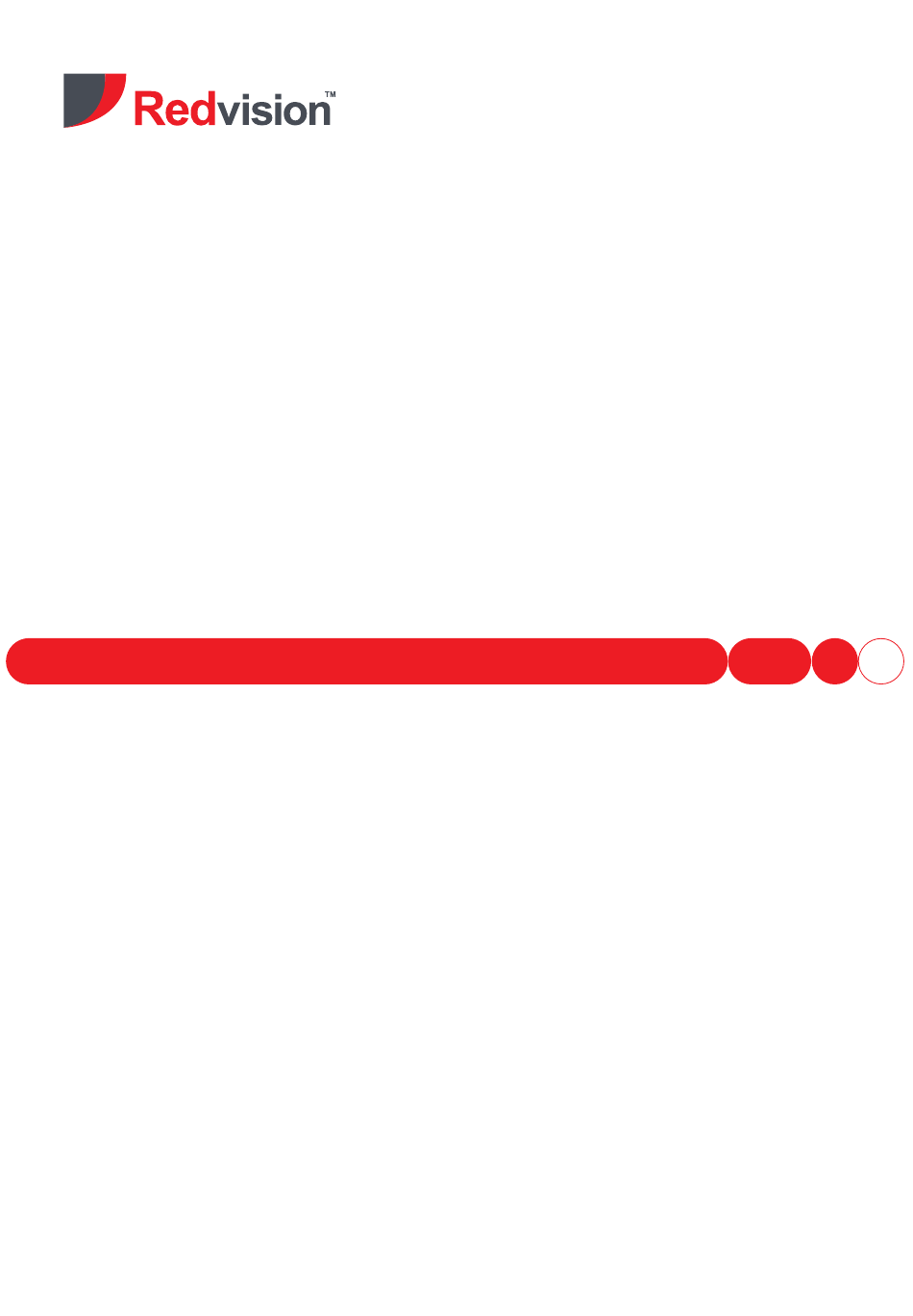

- Page 1 X-IP-SERIES X-IP-SERIES USER MANUAL Products Covered: RVIP-SERIES PTZ Positioning Camera RVIP-PSU Power Supply RVIP-PSU-ALM16 Power Supply with Alarm Module RVIP-PSU-ALM16-W PSU with Wireless PIR module [RVIP v1.2] © 2015 Redvision CCTV Limited. All rights reserved.
-
Page 2: Table Of Contents
3.1.2 RVIP-PSU INTERNAL CONNECTIONS 3.1.2.1 MAINS POWER INPUT 3.1.2.2 CAMERA CONNECTION 3.1.2.3 NETWORK CONNECTION 3.1.3 FUSE PROTECTION REDVISION IP POWER SUPPLY WITH ALARM MODULE (RVIP-PSU-ALM) 3.2.1 SUPPLY VOLTAGE 3.2.1.1 INPUT VOLTAGE 3.2.1.2 OUTPUT VOLTAGE 3.2.2 RVIP-PSU-ALM INTERNAL CONNECTIONS 3.2.2.1 MAINS POWER INPUT 3.2.2.2... - Page 3 X-IP-SERIES USER MANUAL WEB INTERFACE HOME 6.1.1 CAMERA 6.1.1.1 VIEW CAMERA 6.1.1.1.1 LIVE STREAMING 6.1.1.1.1.1 STREAMING OFF 6.1.1.1.1.2 PLAY STREAM 1 6.1.1.1.1.3 PLAY STREAM 2 6.1.1.1.1.4 PLAY STREAM 3 6.1.1.1.2 CONTROLS POPUP PRESET POSITIONS 6.2.1 EDIT PRESETS PATROL TOURS 6.3.1 RUN/STOP TOUR 6.3.2 EDIT TOUR...
- Page 4 X-IP-SERIES USER MANUAL WEB BROWSER CONFIGURATION JAVASCRIPT VIDEO STREAMING PLUGIN TECHNICAL SPECIFICATION WARRANTY INFORMATION...
-
Page 5: Installing The Camera Head
X-IP-SERIES USER MANUAL INSTALLING THE CAMERA HEAD PTZ CONFIGURATION – CONVERTING BALL CAMERA TO DOME CAMERA The RVX Series can be mounted as a dome or ball PTZ configuration. To convert the dome to ball PTZ remove the M4 button head screws with 2.5mm allen key provided. See FIG A below. FIG B MOUNTING ORIENTATION OBSERVE THE FOLLOWING PRECAUTIONS WHEN INSTALLING: 1. -
Page 6: Bracket Types
X-IP-SERIES USER MANUAL ATTACHING CAMERA TO THE BRACKET: See Fig C & D below 1. Remove Mount Cover Plate. 2. Fully unscrew Hand Lock Nut. 3. Offer Camera to Bracket. The Mounting Boss orientation is important and should match the picture in FIG C & D below. i.e The Flat Edge should be positioned to the rear and the Retaining Lugs engaged in the Boss Cut Outs. -
Page 7: Power Supply Installation & Setup
MUST BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. Camera Warranty is void unless it is installed using one of the following Redvision power supplies and a Redvision supplied fly lead (Composite cable): Using the wrong type of 3rd party PSU could compromise safety and damage the camera unit. -
Page 8: Redvision Ip Power Supply (Rvip-Psu)
NOTE: Signal names depend on context, TxN (Transmit Data Negative) for the camera is RxN (Receive Data Negative) for the PSU or Alarm Unit. The Redvision Power Supply (part code: RVIP_PSU) outputs 24V DC & is supplied in a weather proof ABS box rated IP67. REDVISION IP POWER SUPPLY (RVIP-PSU) 3.1.1... -
Page 9: Camera Connection
X-IP-SERIES USER MANUAL 3.1.2.2 CAMERA CONNECTION 6 Way Terminal Block PIN NO. PCB IDENT WIRE COLOUR SIGNAL Blue PSU TxN / Camera RxN Blue / White PSU TxP / Camera RxP Orange PSU RxN / Camera TxN Orange / White PSU RxP / Camera TxP Black NOTE: Signal names depend on context, TxN (Transmit Data Negative) for the camera is RxN... -
Page 10: Redvision Ip Power Supply With Alarm Module (Rvip-Psu-Alm)
X-IP-SERIES USER MANUAL REDVISION IP POWER SUPPLY WITH ALARM MODULE (RVIP-PSU-ALM) ALARM/WASH/ AUX RELAY OUTPUTS WARRANTY & SAFETY NOTICE: DISCONNECT ALL POWER BEFORE OPENING OR WORKING ON THE CAMERA CONNECTION RVIP-PSU-ALM16 POWER SUPPLY ALARM INPUTS UNIT WITH EMBEDDED ALARM CARD. THIS PROTECTS HIGH... -
Page 11: Network Connection
X-IP-SERIES USER MANUAL 3.2.2.3 NETWORK CONNECTION RJ45 SOCKET This socket is a typical Ethernet 100BASE-T type, for connection of a 'Cat 5' cable, wired to the T568A or T568B scheme. The typical wire colours noted below are of the T568B scheme. The camera supports automatic polarity and automatic crossover (Auto MDI/MDIX) to simplify installation cabling. -
Page 12: Fuse Protection
X-IP-SERIES USER MANUAL 3.2.3 FUSE PROTECTION PCB IDENT DESCRIPTION * F1 Mains input fuse 3.15A - Anti Surge* Camera fuse 3.15A - Fast Blow 3.2.4 ALARM CONFIGURATION SWITCH SETTINGS Switches S1 & S2 are used to configure each alarm input channel as Normally Open (N.O.) or Normally Closed (N.C.) POSITION SWITCH S1 SWITCH S2... -
Page 13: Rvip-Psu-Alm-W Internal Connections (Additional)
X-IP-SERIES USER MANUAL The Redvision Wireless Card is compatible with the Redvision Wireless PIR, Luminite Genesis Range and the Redwall Wireless Transmitter Module Part Code WF434T, (wireless enabled Redwall PIRs). For the main specification and connection information for the WIRELESS ALARM PSU (RVIP-PSU-ALM-W), refer to diagram. -
Page 14: Camera Setup
Local Link IP Address = 169.254.69.65 NOTE: The Redvision IP Camera Discovery Tool can be used to calculate Local Link default addresses from a camera MAC address or Serial Number. OTHER THIRD PARTY DOWNLOADS ARE AVAILABLE, SUCH AS ‘ANGRY IP’: http://www.angryip.org/download... -
Page 15: Lan Connection Without Local Dhcp Server
X-IP-SERIES USER MANUAL 4.1.3 LAN CONNECTION WITHOUT LOCAL DHCP SERVER Due to the large number of variations possible in the network structure, it is difficult to predict if the camera will be contactable using the Local Link IP address in a given network. The simplest solution in this case is to use the 'Direct Cable Connection' method below to configure the camera for a fixed IP address in a useable range (consult local IT support) before connecting the camera directly to the local network. -
Page 16: User Account Configuration
The RVIP dome will accept control via the network in the form of Common Gateway Interface queries. This is intended for use by third party devices to provide a dedicated interface channel. Consult Redvision CCTV for further information and the proprietary software development kit. - Page 17 X-IP-SERIES USER MANUAL WEB INTERFACE The layout of functions in the web interface is as follows :- • Home • Camera View Camera Live Streaming Controls Configure camera Preset Positions Edit Presets Patrol Tours Edit Tours • Alarms View Alarms Live Alarms Enable Live Update Update Interval...
- Page 18 X-IP-SERIES USER MANUAL 6.1.1.1.2 CONTROLS POPUP Open a floating controls window for PTZ control of the camera. PRESET POSITIONS Speed limit controls the speed at which the camera moves to preset positions under user control. Movement during tours and for alarms is configured separately. 6.2.1 EDIT PRESETS Edit preset information for selected preset:...
- Page 19 X-IP-SERIES USER MANUAL ALARMS If any RVIP-ALM board or RVIP-ALM-W wireless alarm is fitted, alarms may be viewed and configured through the dome’s web interface. 6.4.1 VIEW ALARMS Live and historic alarms may be viewed on this page. Note that the displayed status will be that of the moment the page was loaded.
- Page 20 X-IP-SERIES USER MANUAL 6.5.2 CAMERA PROFILES This section selects which set of camera settings to use for the default 'day' and 'night' mode. See the 'Camera Profiles' section for more information on the use of profiles. Day Night switching may be performed manually, e.g. via the web interface or by the use of 'special' preset selection, or according to the camera metered light level.
- Page 21 X-IP-SERIES USER MANUAL CAMERA PROFILES The RVX camera uses “Camera profiles” to store many imaging settings which can be applied on demand. This allows the user to set and apply optimum configurations for a variety of operating conditions quickly and easily. The camera can switch between any two profiles in “Day mode”...
- Page 22 X-IP-SERIES USER MANUAL • AF Sensitivity - In 'LOW' sensitivity mode, the camera requires a larger focus error before triggering an auto-focus action - this prevents the camera from continuously refocussing ('focus hunting') in certain situations. • Aperture (Edge/Sharpness Enhance) – Select the degree of edge enhancement (sharpness) the camera applies to the video image.
- Page 23 CRCcheck.exe file and follow the prompts to select the binary image file to be checked. After a few moments, a message should appear as below:- If the number calculated does not match, DO NOT upload the file to the camera, contact Redvision for a replacement upgrade file.
- Page 24 VIDEO STREAMING PLUGIN In order to view the live video streams embedded in the web browser, Redvision CCTV uses 'VLC media player', a free, open source media player which is available for most common systems at http://videolan.org Download and install the media player application for your system type.
- Page 25 X-IP-SERIES USER MANUAL In Firefox, select Tools > Add-ons from the menu bar. In the search box, enter VLC, then select 'VLC Web Plugin' and install it. At this point, direct the web browser to the camera web interface and select Camera > ViewCamera > Live Streaming > Play Stream 1 This should display the camera live video after a short delay.
- Page 26 X-IP-SERIES USER MANUAL TECHNICAL SPECIFICATION CAMERA Image sensor Sony 1/3" CCD Model FCB-EH7500 Optical zoom Digital zoom Horizontal resolution 1920px (1080p) / 1280px (720p) Angle of view ~ 2.3 to 63.7deg. Focal Length 4.3mm to 129mm (f1.6 to f4.7) Min illumination 0.35 lx (1/30 sec ICR OFF) 0.002lx (1/4sec ICR ON) TELEMETRY...
- Page 27 WARRANTY INFORMATION Redvision CCTV Limited (Redvision) warrants the buyer that the product will, on the date of shipment be free from defects in material & workmanship and will conform to Redvision’s specifications provided to the buyer. If any defect in material or workmanship appears in the product, Redvision will at its option, either repair or replace the defective product without charge at Redvision’s...
- Page 28 X-IP-SERIES USER MANUAL X-IP-SERIES...
