Redvision VEGA 2010-PW Installation Manual

Rugged camera housing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™
VEGA
Rugged Housing
2010-PW Model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA 2010-PW and is the answer not in the manual?

Questions and answers

Related Manuals for Redvision VEGA 2010-PW

Summary of Contents for Redvision VEGA 2010-PW

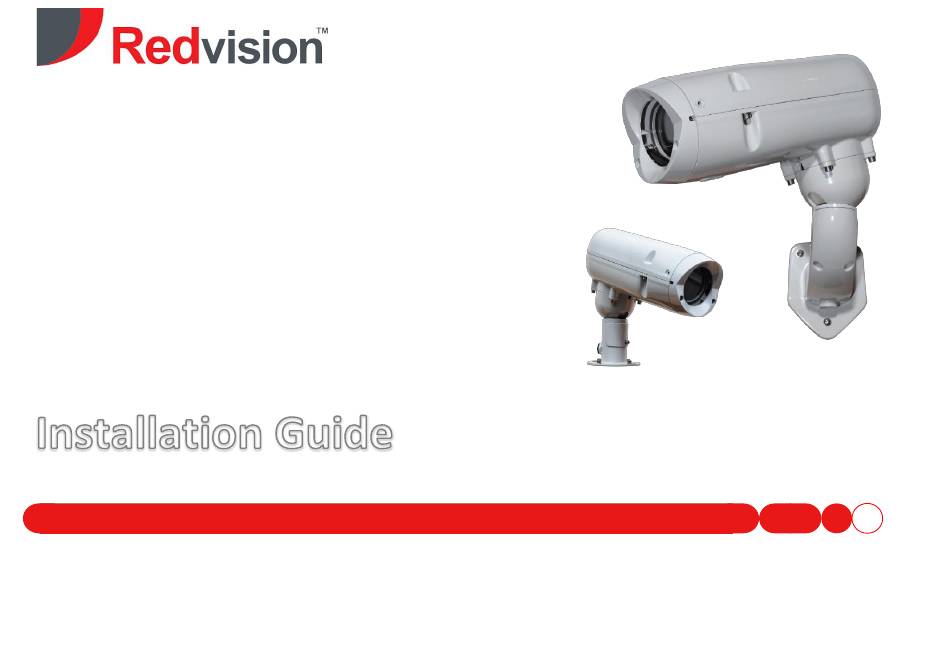

  • Page 1 ™ VEGA Rugged Housing 2010-PW Model...
  • Page 2 Redvision CCTV Ltd. Alpha House Blacknest Road Blacknest Alton Hampshire GU34 4PX Sales & Technical Support: +44 (0) 1420 448 448 sales@redvisioncctv.com techsupport@redvisioncctv.com IP Network Models ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 3: Table Of Contents

    5.41 Wiper control settings 5.50 JP6 Aux control connections 5.60 User pass-through connections 5.61 Refitting the Housing cover 6.0 VEGA Range and Accessories 7.0 Warranty Information ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 4: Introduction

    Version 1.5 June 2019 1.0 Introduction Thank you for choosing the Redvision VEGA™ rugged camera housing; designed for use in exposed outdoor locations. The Vega™ range of products offers rugged enclosures with features from simple empty enclosure, to intelligent wiper and auxiliary control, with a variety of power supply options. Please study this guide thoroughly before installing, maintaining or using the product.

  • Page 5: Safety

    7. This product incorporates an automatic heating element; located underneath the housing window. This element will become very hot, touching the element could result in burns or injury. Avoid contact with the heating element! ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 6: Parts Supplied/ Available

    3: Bracket locking bar (optional, must be ordered separately) 4: Accessory connecting wires If parts appear to be missing or damaged this should be reported immediately to your supplier. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 7: Specifications

    Weight 4.2 Kg (no camera fitted, incl. wall bracket) Mounting options Standard: Wall bracket with cable managed entry PED: Cable managed pendant/pedestal bracket with 4” PCD ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 8: Installation

    (20mm threaded for conduit). A screw cap is supplied for this access point, in the event it is not used. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 9 14mm size); the other a standard gland. Ensure that the rubber O-rings remain on the screws when loosening. Removing the Pivot Ball assembly Cable Glands revealed, Split-gland on left 4 Allen bolts Fig 3 Fig 4 Complete split-gland assembly ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 10 (Fig 6). • Pass the cable(s) into the arm and through the cable access hole (16mm ᴓ), into the Pivot ball assembly (Fig 7): Fig 7 ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 11 (Fig 9) Fig 8 Fig 9 Grub screw for fixing Locking ring in place Using the optional wrench bar to tighten the lock ring ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 12 Fix, pass the cable(s) through; attach the housing body; position the housing and tighten the lock ring as described in section 3.2, figs 8 & 9. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 13: Fitting The Camera Into The Housing

    Fig 12 • Next, loosen the 3 Allen bolts securing the Housing cover (Fig 13): Unscrew the 3 Allen bolts securing the housing cover Fig 13 ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 14 Take care to ensure that the earth strap is not trapped when refitting the housing cover. Fig 14 Earthing strap bonding the cover to the housing base ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 15 Wiper mechanism Wiper motor Heater module (Type may change) Camera mount plate CHAT™ Interface Fig 15 Keep wiper drive gear, shaft and belt clear of obstructions! ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 16 Version 1.5 June 2019 4.2 Housing interior and parts The 2010-PW is fitted with the Redvision CHAT™ interface board (Fig 16, below), which provides connection for: Power/ Data/ RS-485 control/ Wash & Wipe control. The CHAT™ board accepts the following voltages:...
  • Page 17 The baseplate itself can also be inverted, allowing 4 different heights in total. This allows for a wide variety of cameras and lens combinations to be used, whilst still retaining full vision through the window without obscuration. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 18 It will not power the camera. A separate 12VDC output (1.8A) is provided for this function. The flying Cat 5e lead is for camera data connection only. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 19: Interface Board Connections

    The CHAT™ interface board provides the following inputs and outputs: CHAT™ Interface board – Camera side Fig 18: CHAT™ interface board with User connections outlined in red. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 20: Power And Data Connections

    Please use the connecting leads provided. 5.21 PoE+ (802.3at) connection: Data only (to IP camera) PoE+ Input Fig 19 CHAT™ board, showing PoE+ (802.3at) input & data output ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 21: 12Vdc/24Vac Connection

    A 2-line connection is provided for RS-485 data control of the CHAT™ board. Please observe standard RS-485 installation practice when using this input. When using with 3 party controllers/encoders: Data B Data A ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 22: Dip Switch Settings

    Note: All DIP switch settings must be made whilst the housing is powered OFF. The CHAT™ board will read the settings on power-up. If DIP switches are changed whilst powered up, simply power-cycle the housing and the new settings will apply. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 23: Rs-485 Protocol Settings

    ON (1). 5.33 SW1 switch settings (Baud Rate): UP = OFF (0) DOWN = ON (1) Baud 19200 9600 4800 2400 Fig 21 SW1 Baud rate settings ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 24: Sw2 Camera Id Settings

    Vega 2010-PW Installation Guide Version 1.5 June 2019 5.40 SW2 Settings (Camera ID): Switches 1-8 set the unique camera ID address: UP = OFF (0) DOWN = ON (1) ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 25 Vega 2010-PW Installation Guide Version 1.5 June 2019 ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 26: Wiper Control Settings

    DIP switches 6,7 & 8 accordingly. If the power supply to the VEGA™ is cycled, a new RS-485 command will need to be sent to start the auto-wipe timer again. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 27: Jp6 Aux Control Connections

    Wires 3 & 4 provide a wash relay output (voltage-free), controlled by sending Preset 87 to the board. • Wires 5 & 6 provide an alarm relay output (voltage-free), controlled by sending Preset 88 to the board. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.

  • Page 28: User Pass-Through Connections

    4mm Allen screws on the front bezel; ensuring the gasket seal, cover and bezel are fitted flush and evenly all round. Your Vega™ 2010-PW housing is now ready to use. Take care to ensure that the earth strap is not trapped when refitting the housing cover. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 29 Available in 2MP, 4MP and 4K resolutions, wall or ped versions. 12VDC or PoE power. Contact Redvision Sales Team on +44 (0) 1420 448 448 for further information. ©Redvision CCTV Ltd. 2018 Content subject to change without prior notification. All rights reserved.
  • Page 30 DAMAGE. THE REPLACED PRODUCT SHALL BECOME REDVISION’S PROPERTY. In no event shall Redvision be responsible for de-installation or reinstallation of the product or for the expenses thereof. If it is determined that product is not defective, the buyer shall pay Redvision all costs of handling, inspection, repairs and transportation at Redvision’s then prevailing rates.
