TEP-1010-BSW / TEP-1560-BSW
Quickstart Guide
1

Safety Precautions

Thank you for purchasing a TechNexion TEP series device. This installation guide will be helpful in the installation, wiring and inspection of your TechNexion HMI. Before
using the product, please read this guide to ensure correct use. You should thoroughly understand all safety precautions before proceeding with the installation, wiring,
and operation. Place this instruction sheet in a safe location for future reference. The following suggestions will help you.
1.1

Storage and Installation

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet,
allow it to dry completely.
• Do not use or store the device in dusty or dirty areas. Its parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
! • Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device. This product is designed for specific applications and needs to be installed by qualified personnel.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not paint the device. Paint can clog the parts and prevent proper operation.
• Unauthorized modifications or attachments could damage the device and may violate regulations governing radio devices.
1.2

Wiring

•Make sure that the available power source matches the required input power of the device. Failure to observe this caution may result in electric shock or fire.
•Do not power the unit by DC input when you apply power over the PoE (RJ45).
1.3

Maintenance and Inspection

• Do not touch any internal or exposed parts of the device as electrical shock may result.
• Do not open the device while power is on. Otherwise electrical shock may result.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Be sure the ventilation holes are not obstructed during operation. Otherwise malfunction may result due to bad ventilation or overheating.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.
2

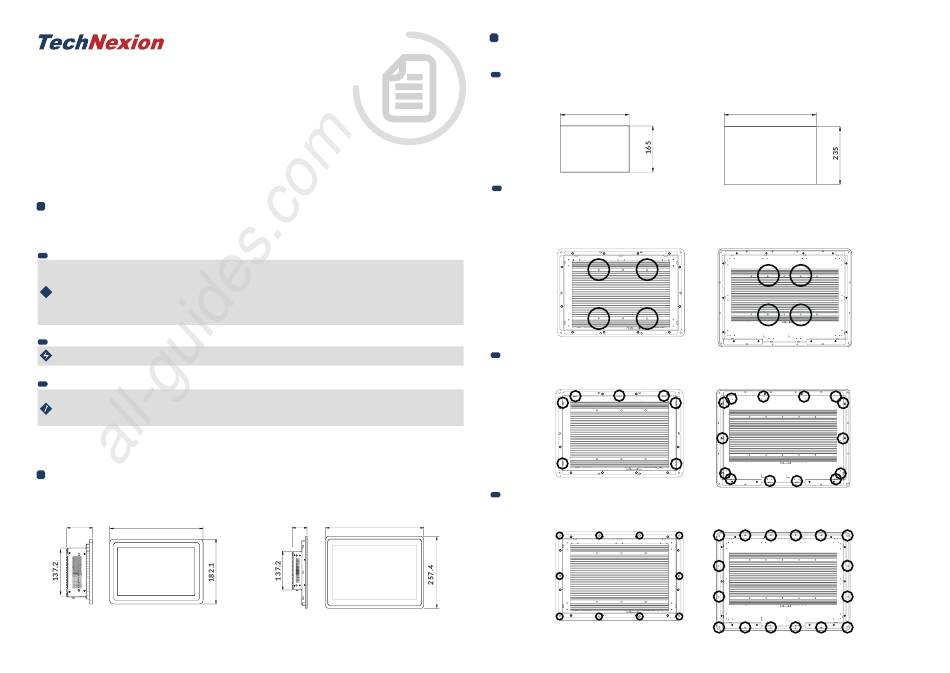

Dimensions

TEP-1010-BSW
75 263.5
Unit : mm
1
All manuals and user guides at all-guides.com
TEP-1560-BSW
62 407.1
3

Installation Instructions

This section describes the mounting procedures for TEP series device. The material in the mounting area must provide sufficient strength for support of this HMI.
3.1

Cut-out Dimensions

TEP-1010-BSW
246
Unit : mm
3.2

VESA Mounting

This device is compatible with VESA MIS-D Standard 100*100mm. There are 4 VESA MIS-D (M4) mounting holes on the rear side of the device. M4 screws with at least
6mm head-to-tip length are required to secure this device.
TEP-1010-BSW
3.3

Rear Mounting

There are 7 (TEP-1010-BSW) / 14 (TEP-1560-BSW) mounting clips required for rear mounting.
TEP-1010-BSW
3.4

Surface Mounting

There are 10 (TEP-1010-BSW) / 16 (TEP-1560-BSW) mounting holes (M4) on the rear side of the device required for surface mounting. M4 screws with at least 6mm
head-to-tip length are required to secure this device.
TEP-1010-BSW
TEP-1560-BSW
375
TEP-1560-BSW
TEP-1560-BSW
TEP-1560-BSW
