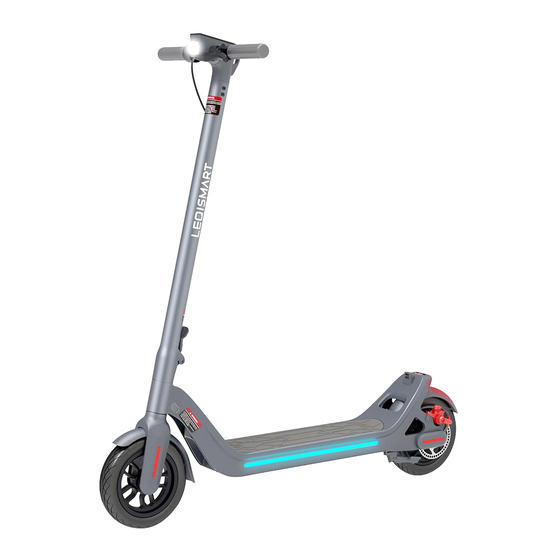

- Page 1 ELECTRIC SCOOTER A8 USER MANUAL More Information Visit www.leqismart.com...
-
Page 2: Table Of Contents
Packing list................. 2 Parameters................3 Assembly................3 Charger Your Scooter............4 How To Ride..............5 Folding.................. 6 Unfolding................6 LEQISMART APP..............7 Safety Precautions.............. 8 Cleaning And Storage........... 12 Tire Inflation Maintenance..........12 Battery Maintenance............12 Environmental Protection..........13 After-sales Service............. 14 Non-warranty Rule.............. -
Page 3: Function
Function Accelerator Handlebar Folding Hook Brake Lever Hook Fixing Buckle Front Tube Motor Unit Folding Handle Atmosphere Light Charging Port Function mode: Cruise mode, pedestrian mode, fault prompt, light, Bluetooth, Lock. Gear mode: The maximum speed limit is 6 km/h for L gears, 15 km/h for M gears and 25 km/h for H gears. -
Page 4: Parameters
Parameters Model Net weight 15.5 KG Expanded size 112.4×44×118 CM Applicable age Applicable height 130~200 CM Maximum load 100 KG Maximum speed 25 KM/H Mileae About 40 KM Gradeability About 15% Protection grade IPX5 Charging time About 5.5 H Over-charge, Over-temperature, Over-discharge, BMS management Over-current, Short circuit, Over-voltage Brake system... -
Page 5: Charger Your Scooter
Charge Your Scooter 1. The indicator light of the charger turns green when connected the charger to the power supply. 2. Inserting the charging plug, and the indicator light will turns from green to red. 3. After charging, the indicator light turns from red to green. Open the rubber flap Plug the power adapter Fasten the rubber flap... -
Page 6: How To Ride
How To Ride 1. Press the switch button 2. Stand with your right foot to turn on the scooter and on the pedal and thrust check the battery level. If against the ground with your the battery level is too low, left foot. -
Page 7: Folding
Folding Turn off the scooter, press the red safety lock, and release the folding handle; fold the front tube clamp, align the folding hook and put it into the hook fixing buckle; lift the front tube and confirm whether it is fastened firmly. Unfolding Remove folding hook from hook retaining buckle,straighten the front tube, close the folding handle until there is a “click”... -
Page 8: Leqismart App
Scan QR code with your mobile phone, or search "LEQISMART " in the Application market, download and install the APP. If the LEQISMART APP has been installed on your mobile phone, make sure that the APP is the latest. STEP 1 Press the button to turn on the scooter and turn on the Bluetooth function of the mobile phone. -
Page 9: Safety Precautions
Safety Precautions 1. Please carefully read the user manual, which will assist in explaining the basic working principles and provide tips on how to best enjoy your scooter experience. 2. Please wear all appropriate safety and protective gear as previously mentioned in the User Manual before operating the scooter. - Page 10 recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or slippage. 17. Do not attempt to ride over bumps or objects greater then 1.5 cm even when prepared and bending your knees. 18.
- Page 11 uneven pavement. 37. Do not operate yout scooter off-road. 38. Do not exceed the maximum weight limit of 100 kg. 39. Avoid driving the scooter in unsafe places, including near areas with flammable gas, steam, liquid, dust, fiber, which could cause fire and explosion accidents.
- Page 12 53. List regarding the maintenance that can be performed by the user himself;Instructions for routine inspection, maintenance, cleaning and/or cleaning. 54. Instructions covering all functions of the vehicle, specially driving power assistance start mode (e.g. pushing the vehicle by more than 4 km/h and activating the power assistance mode). 55.
-
Page 13: Cleaning And Storage
It is forbidden to use pressure water gun to spray and wash. Ensure that the scooter is off and the charging port rubber cover is tightly fastened during cleaning, otherwise electric shock or serious failure may occur due to internal water inflow. When not in use, store in a dry and cool place indoors. -
Page 14: Environmental Protection
there is a danger of damage or fire. 7. Please fully charge the battery before storing after each use, which will help to extend the battery life. 8. Do not place the scooter in an environment above 50 °C or below -20 °C (for example: in a car exposed to the sun in summer). -
Page 15: After-Sales Service
After-sales Service 1. Within 7 days from the day after you sign, the second sale of the product will not be affected. After testing by the after- sales service center, you can enjoy free return or replacement services. 2. Within 8-15 days from the next day after you sign for the product, if the performance of the product failure, through the after-sales service center detection and determination, you can enjoy free replacement or maintenance services. - Page 16 ShenZhen LEQI Intelligent Technology Co., Ltd. Add: Factory Room 202, No. 340 Guihua Road, Guixiang Community, Guanlan Sub-district, Longhua District, Shenzhen, Guangdong, China Email: service@leqismart.com Web: www.leqismart.com All interpretation rights belong to LEQISMART...
