- Page 1 TSPROF K03 PRO SHARPENING DEVICE USER MANUAL...
-
Page 2: Table Of Contents
5. Preparing for work 6. Assembly 7. Setting the sharpening angle 8. Calibration of the rack-and-pinion mechanism 9. Operating procedure 10. Operating instructions of the TSPROF K03 Pro sharpening device 11. Cleaning and maintenance 12. Storage and transportation 13. Utilization 14. Warranty obligations... -
Page 3: Purpose
The Manufacturer is not liable for damages caused by improper use of the Device. 1. PURPOSE The TSPROF K03 Pro Sharpening Device (hereinafter referred to as the Device) is a universal sharpening tool designed for double-sided sharpening of knives without removing the blade from the clamps for sharpening the back side of the blade. -
Page 4: Safety Requirements
3. SAFETY REQUIREMENTS ◇ Be sure to read this User Manual before using the device. The device should not be used by persons who are not familiar with this manual. ◇ This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed by a person responsible for their safety. -
Page 5: Construction

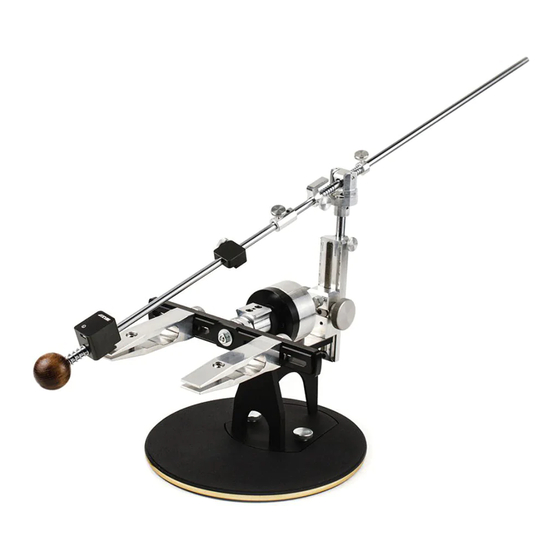

4. CONSTRUCTION 1. Stand 2. Clamps 3. Control ring 4. Rack-and-pinion lift 5. Rotary mechanism frame 6. Rotary mechanism frame 7. Abrasive holder stroke limiters 8. Hinge unit 9. Lifting mechanism knobs 10. Body 11. Coupling 12. Abrasive holder 13. Digital integrated angle finder (fig. -
Page 6: Preparing For Work
Your TSPROF K03 Pro device has a number of features: ◇ The abrasive holder with Axicube-i electronic angle finder allows you to monitor the sharpening angle in real time and trace any changes, for example when changing the abrasive. Also it is possible to set the sharpening angle with an accuracy of 0.1°. -
Page 7: Assembly
6. ASSEMBLY 6.1 Install the abrasive holder into the bushing-coupling of the 6.4 Mount the clamp to the frame and tighten the locking guide rod and fix it. screws. It is possible to use different types of clamps together. Position the clamps at the required distance from each other depending on the length and geometry of the blade. -
Page 8: Setting The Sharpening Angle
To do this, use the calibration prism included in the package. Calibration order: 1. Place the clamp on the left side of the TSPROF K03 device frame as close as possible to the center of the rotary mechanism frame (fig. 7). -
Page 9: Calibration Of The Rack-And-Pinion Mechanism
6. Turn on the angle finder, press and hold the button for 6 Important: When you change the position of the device, seconds, wait for the blinking signs on the display, then release transfer it to another surface, it is necessary to recalibrate to the button (the screen will flash with «... - Page 11 You can also sharpen at the knife’s existing angle. To do this: ◇ use a marker to paint over the secondary bevel;; ◇ place the abrasive in the holder; ◇ run the abrasive over the painted part; ◇ adjust the angle so that one movement of the abrasive erases the marker completely from the painted area.
-
Page 12: Operating Instructions Of The Tsprof K03 Pro Sharpening Device
10. OPERATING INSTRUCTIONS OF THE TSPROF K03 PRO SHARPENING DEVICE ◇ The machine has protective marks and the warranty will not apply if they are damaged. ◇ Use liquid oils (household, industrial) to lubricate the moving mating surfaces of the Device. -
Page 13: Warranty Obligations
The current warranty terms and conditions are listed on the Manufacturer’s website. In case of discrepancies, the terms and conditions posted on the Manufacturer’s website have priority: https://tsprof.com/help/warranty The warranty period for the product is 1 year from the date of sale, but no more than 1.5 years from the date of manufacture. - Page 14 Before sending your product for warranty, non-warranty, or post-warranty service, be sure to contact the Manufacturer by sending an email to info@tsprof.com. Address for sending the product: Russia, Udmurt Republic, 426065, Izhevsk, ul. 10 let Oktyabrya, 80, office 405, “Tekhno...
- Page 15 SHOP.TSPROF.COM +1 (213) 510-09-80 SALES@TSPROF.COM Manufacturer: OOO «TS PROFIL» 426039: UR, Izhevsk, ul. 10 let Oktyabrya, 80, office 404...
