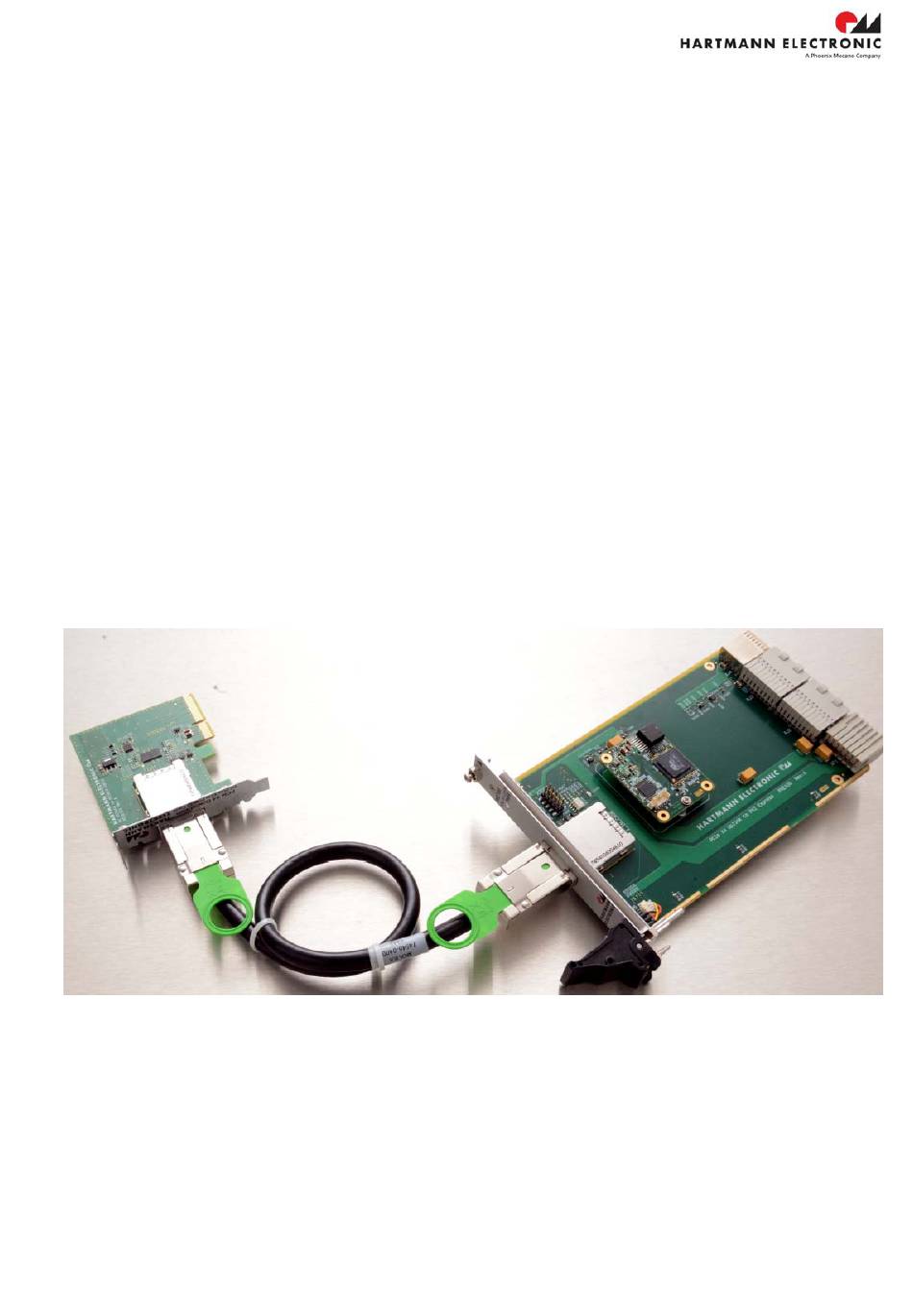

- Page 1 PXI Express Desktop PC Expansion PCIE101A \ PXE100A User’s Manual www.hartmann-electronic.com Rev. 1.0...
- Page 2 Revision History Version: Notification of Change Date 10.01.2020 04.02.2020 Imprint: Hartmann Electronic GmbH Motorstraße 43, D-70499 Stuttgart (Weilimdorf) Telephone: +49 711 1 39 89-0 Telefax: + 49 711 8 66 11 91 E-Mail:...
-
Page 3: Table Of Contents
Contents 1. Safety ..................................4 Intended Application .............................. 4 Safety Symbols ..............................4 General Safety Precautions ..........................4 Safety Instructions ..............................5 Protection Against Electromagnetic Interference (EMI) ..................5 Electrostatic Discharge Precautions ........................5 ... -
Page 4: Safety
1. Safety Intended Application The PXE100A series remote controller kit is not designed for stand-alone use -- in order to enable stand- alone functionality, additional elements are required. An operational system is achieved only by way of appropriate PXI Express Cards. The completion and final testing of the units have been carried out by qualified technicians. -
Page 5: Safety Instructions
Safety Instructions This user's manual is intended for system Integrators and hardware/software engineers. This product has been designed to meet the relevant standard industrial safety requirements. It is not intended to be used in applications other than that of its specific area of the office telecommunication industry and industrial control. -
Page 6: Mounting Considerations
Mounting Considerations Assure that all components, structural or otherwise, were not loosened nor damaged during shipment prior to use. Do not operate under loose or damaged conditions as it may damage other parts of the system at large. Electrical Hazards The caution label on the system's rear, near the grounding studs, indicates a needed earth connection due to the potential for high-leakage current which is considered hazardous. -
Page 7: Product Description
2. Product Description The PXE100A series PXI Express Remote Controller is designed to operate in a PXI Express System Slot. The controller complies with the PXI Express module form factor. With its use, a conventional Desktop PC is used to control a PXI Express Chassis. -
Page 8: Chassis Description
Chassis Description The PXI Express Remote Controller is plugged into the PXI Express Backplane’s System Slot. The Space-saving 4 TE design allows ample space for additional system components as well as further PXI Express Modules, conveniently placed directly next to the controller. The Controller is suitable for PXI Express Chassis that implement a PXI Express System Slot 4-Link configuration. -
Page 9: Block Diagram
Block Diagram PCIE101A PCIe Gen. 3 X4 PC Card Figure 2-2 illustrates the hardware implementation of the PCIE101A PC Card. Figure 2-1 PXI Express Remote Controller Block Diagram The Block Diagram above outlines the Hardware implementation of the PCIe PC Card PCIE101A. As shown in Figure 2-1, the PC-Card is available in both high and low profile versions of the front panel. This allows the PC card to be plugged into any Desktop PC Chassis. -
Page 10: Pxe100A Pcie Gen. 2 Uplink To Pxi Express
PXE100A PCIe Gen. 2 Uplink to PXI Express Figure 2-2 illustrates the hardware implementation of the PXI Express Remote Controller. Figure 2-2 PXI Express Remote Controller Block Diagram The Block Diagram above outlines the PXI Express Controller’s Hardware implementation. The controller’s upstream port is implemented through a standard PCIe X4 Cable connector. A PCIe Gen. 2 X4 Link is supported for connection with a desktop PC. -
Page 11: Front Panel Leds
Front Panel LEDs The PXE100A provides a Power LED that as status indicator for the function of the PXI Express systems’ power supply. Figure 2-3 shows the location of the front panel LED. Table 2-1 describes the front panel LED states State Description Green... -
Page 12: Installation
Installation Installing Hardware Installing the PCIE101A PC Card Complete the following steps to install the PCIE100A in your computer. 1) Power off your computer. Danger of electrostatic discharge! To protect both yourself and the computer from electrical hazards, your computer should remain off until you finish installing all hardware as instructed. - Page 13 Connecting a single PXI Express System to the Desktop PC 1) Install the Controller into the appropriate system slot. Danger of electrostatic discharge! To protect both yourself and the computer from electrical hazards, The PXIe system should remain off until you finish installing all hardware as instructed.
-
Page 14: Installing Software
Installing Software The Remote Controller does not require any additional software drivers. The Controller is enumerated fully with the use of conventional standard PCI-to-PCI bridge drivers. Note: The Controller does not implement a SMBus Interface. Therefore, the chassis can’t be enumerated with the PXI Express Resource Manager. -
Page 15: Specification
3. Specification Electrical DC Input Applied through PXI Express Backplane Operating Voltage Range +5V and +5V_AUX and +3V3 Power Consumption +5V: 0.8A ; total power consumption: 5W Operating Environment Operating temperature range: -10… +85 °C Storage temperature range: -40 °C… + 125 °C Relative humidity range: 10% to 90%, noncondensing www.hartmann-electronic.com... -
Page 16: Electromagnetic Compatibility
Electromagnetic Compatibility This product meets or exceeds the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use: • AS/NZS CISPR 11: Group 1, Class A emissions • EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity •... -
Page 17: Ce Compliance
CE Compliance Declaration of Conformity www.hartmann-electronic.com Rev. 1.0... -
Page 18: Mechanical
Mechanical Form Factor: Eurocard (160x100mm): suitable for 19“-Racks. Front panel width 4HP (20.32mm). Slot Requirement: Single system controller slot www.hartmann-electronic.com Rev. 1.0... -
Page 19: Pin Assignment
4. Pin Assignment The Pin assignment applies with the PXI-5 PXI Express Hardware Specification for a system slot 4 link configuration. www.hartmann-electronic.com Rev. 1.0... -
Page 20: Pxi Express System Controller Slot (4 Link Configuration)
PXI Express System Controller Slot (4 Link Configuration) +5Vaux SYSEN# WAKE# ALERT# PXI_TRIG3 PXI_TRIG4 PXI_TRIG5 PXI_TRIG6 PXI_TRIG2 PXI_CLK10 PXI_TRIG1 PXI_TRIG0 PXI_TRIG7 PXI_LBR6 PWR_OK PS_ON# LINKCAP PWRBTN# GND SMBDAT SMBCLK GND 4REFCLK+ 4REFCLK- 2REFCLK+ 2REFCLK- GND PERST# GND 3REFCLK+ 3REFCLK- 1REFCLK+ 1REFCLK- GND 1PETp0 1PETn0 1PERp0... -
Page 21: Ordering Information
5. Ordering Information Ordering Number Description 1H00007140 PCIe X4 Uplink to PXI Express 1H00005312 PC Card PCie X4 to PCIe X4_Cable (Low Profile) 1H00005304 PC Card PCie X4 to PCIe X4_Cable (High Profile) F006.02170 PCIe X4 Gen. 2 Cable (1m) F006.02180 PCIe X4 Gen.
