Stack ROLL POD Installation Manual

INSTALLATION GUIDE
ROLL POD/PEDESTAL POD
2650-1505-00

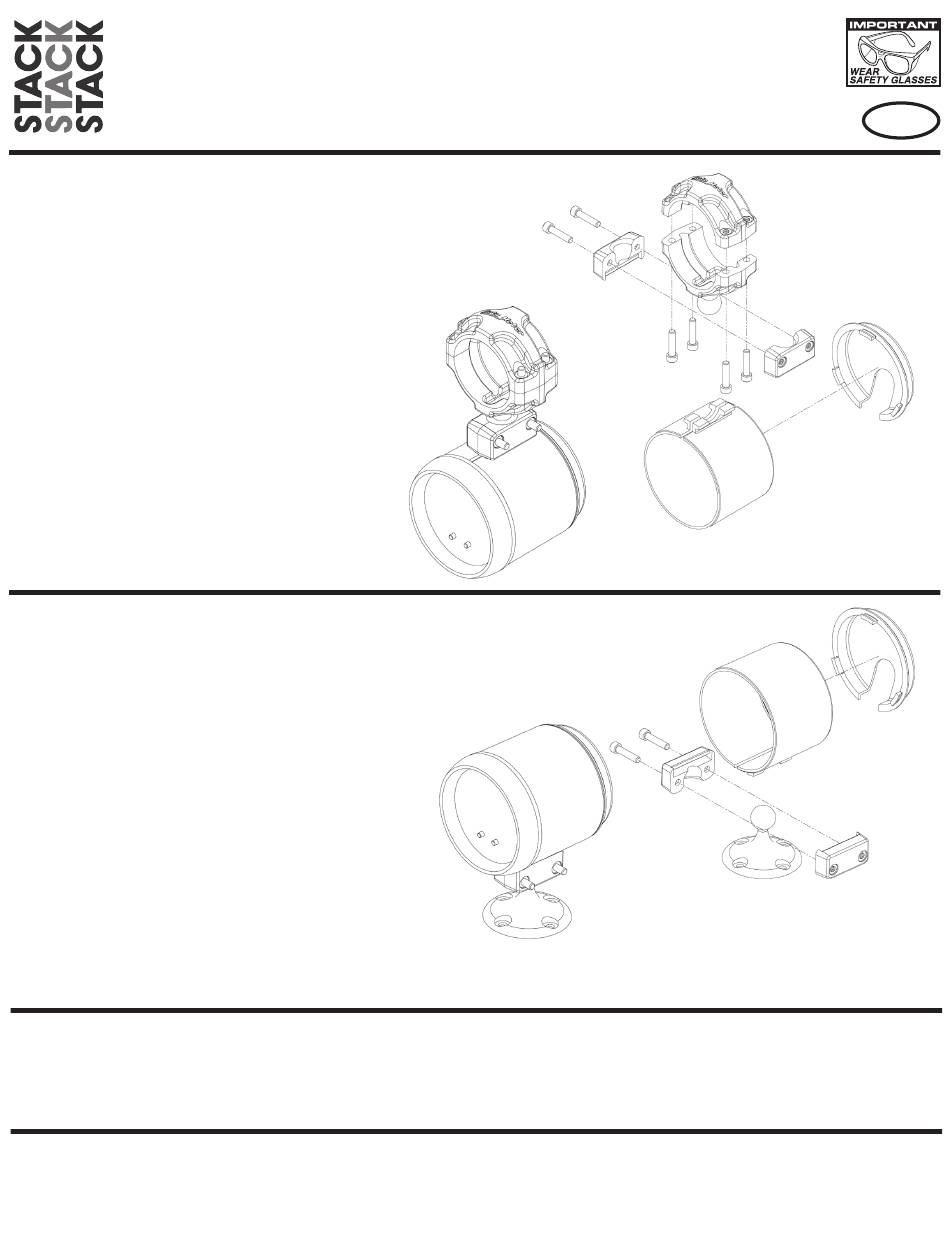

Roll Pod Installation - Gauge

1. Remove all pieces from packaging.
2. Mounting studs on gauge may have to be cut.
3. Install the two 19mm Allen screws provided into
the gauge Clamps, tighten until snug.
4. Assemble the two Roll Bar Bracket Clamps in the
desired mounting position.
5. Install the four 19mm Allen screws provided until
the Bracket Clamps fit snug, do not fully tighten.
6. Slide rear cover into gauge clamp and route all
permanent gauge wiring and tubing.
7. Install and rotate the gauge into the desired
position. Position the gauge so it is readable and
does not block the view of the driver.
8. Once the gauge position has been decided,
tighten the screws on the roll bar bracket clamp
and gauges clamp to 1.69 N•m(15 in • lbs).

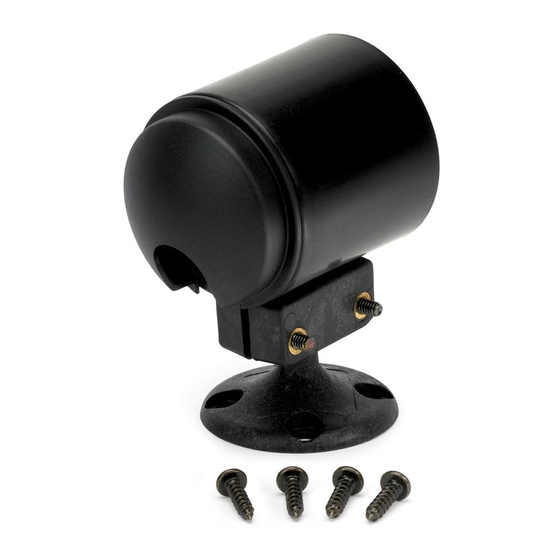

Pedestal Pod Installation - Gauge

1. Remove all pieces from packaging.
2. Mounting studs on gauge may have to be cut.
3. Install the two 19mm Allen screws provided into the
gauge Clamps, tighten until snug.
4. Position the Pedestal Mount on a flat surface in the
desired mounting location. Using the four 15mm self
tapping screws provided, attach the pedestal to the
surface.
5. Slide rear cover into gauge clamp and route all
permanent gauge wiring and tubing.
6. Install and rotate the gauge into the desired position.
Mount the gauge so it is readable and does not block
the view of the driver.
7. Once the gauge position has been decided, tighten
the screws on the Clamp to 1.69 N•m(15 in • lbs).
STACK Ltd. warrants to the consumer that all STACK products will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that fail within
this 12 month warranty period will be repaired or replaced at STACK's option to the consumer, when it is determined by STACK Ltd. that the product failed due to defects in material or workmanship. This warranty
is limited to the repair or replacement of parts in the STACK instruments. In no event shall this warranty exceed the original purchase price of the STACK instruments nor shall STACK Ltd. be responsible for special,
incidental or consequential damages or costs incurred due to the failure of this product. Warranty claims to STACK must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies
only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation,
accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. STACK Ltd. disclaims any liability for consequential damages due to breach of any written or implied warranty on all products
manufactured by STACK.
