STACK ST8110 Display System Preface Contents PREFACE CONTENTS Chapter 1. Introducing the Display System How to Use this Manual Chapter 2. Getting Started Wiring Harness Chapter 3. Operating the Display System Changing the display layers Peak Values (Tell Tales) Alarms Lap times Chapter 4.

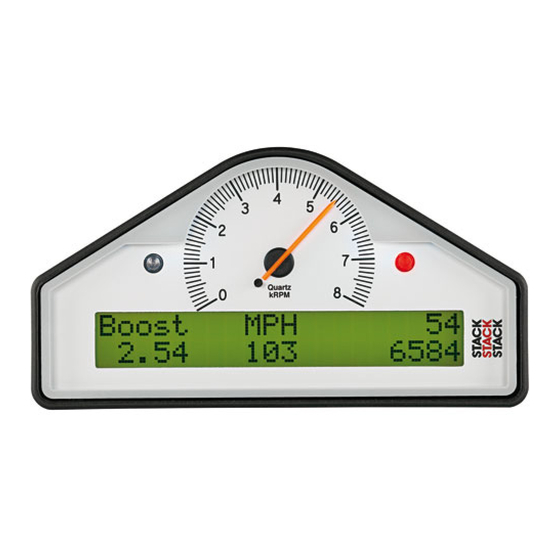

STACK ST8110 Display System Chapter 1. Introducing the Display System Chapter 1. Introducing the Display System The Stack ST8110 Display System monitors and displays a range of values, known as performance parameters, needed for effective car and driver management in most competitive situations.
How to Use this Manual Stack recommends that you unpack and connect the components in the system before you install it in your vehicle. This will enable you to familiarize yourself with operating the display and configuring it for the vehicle in which you intend to install it.
STACK ST8110 Display System Chapter 2. Getting Started Chapter 2. Getting Started The sensors supplied with the ST8110 system differ from those supplied for the ST8100. Standard ST8110 Display System Items The ST8110 Display System is supplied with the following standard...
Page 10
Chapter 2. Getting Started STACK ST8110 Display System Optional ST8110 Display System Items The ST8110 Display System can be used with the following optional components: Quantity Description RPM Sensor (ST696 Opto Isolator or ST697 H.T. Pick-up) Wheel Speed Sensor (ST670 or ST671)
STACK ST8110 Display System Chapter 2. Getting Started Wiring Harness The ST8110 harness connections are slightly different to those of the ST8100. Labels on short cables Connection To S1 to S4 Switches 1 to 4 Wheel Speed sensor Lap timing sensor...
Chapter 3. Operating the Display System STACK ST8110 Display System Chapter 3. Operating the Display System The operation of the ST8110 is basically the same as that of the ST8100. This section highlights any differences. Changing the display layers The ST8110 has four standard display layers. Layer 1 differs slightly from the standard ST8100 and is shown below.
Page 13
STACK ST8110 Display System Chapter 3. Operating the Display System displayed is Gauge Pressure, where atmospheric is 0, boost shows as positive and vacuum as negative numbers. Due to atmospheric variations, the display may not show exactly 0.00 when the engine is stationary.
Chapter 3. Operating the Display System STACK ST8110 Display System Peak Values (Tell Tales) Peak Values (Tell Tales) The system stores either a maximum or a minimum value as the peak value, depending on the parameter, as follows: Parameter Type of Peak...
STACK ST8110 Display System Chapter 3. Operating the Display System Alarms The ST8110 Display System has the following built-in alarms: Parameter Alarm is triggered Gated to RPM when the: Oil Temperature current value exceeds the preset value Water Temperature current value exceeds...
Chapter 4. Configuring the Display System STACK ST8110 Display System Chapter 4. Configuring the Display System Configuration mode The list of configurable parameters has changed significantly from that of the ST8100. Please note that the setting for the 30PSI/150PSI FUELP SENSOR (2BAR/10BAR for EC) must match the sensor fitted or incorrect readings will be shown.
Page 17
STACK ST8110 Display System Chapter 4. Configuring the Display System Setting or resetting configuration values Use Switch 1 to decrease the value being configured and Switch 2 to increase it. The rate at which the value increases or decreases itself increases while the switch is being held down.
Page 18
Chapter 4. Configuring the Display System STACK ST8110 Display System High/Low fuel pressure sensor setting: Low fuel pressure: Low oil pressure: Low battery voltage Boost pressure units setting: High boost pressure Lap Time popup User Guide Addendum...
STACK ST8110 Display System Chapter 4. Configuring the Display System Switching Alarms / Lap Time Popup on or off You can be enable (switch on) or disable (switch off) each of the alarm warnings or the Lap Time popup by pressing and holding Switch 1 and then pressing Switch 2.
Chapter 5. Installing the Display System STACK ST8110 Display System Chapter 5. Installing the Display System Boost Pressure sensor Fitting the Boost Pressure sensors The Display System is supplied with an ST453 (0-3.5Bar) sensor. Installing the pressure sensors Please refer to the installation instructions supplied in the sensor package.
STACK ST8110 Display System Chapter 6. Troubleshooting Chapter 6. Troubleshooting Use this table in conjunction with the ST8100 manual. Symptom Possible Cause Remedy Notes Boost shows - ST453 Reconnect 9.99 (Bar) or - disconnected 99.9 (psi) Faulty connections Check connections...
