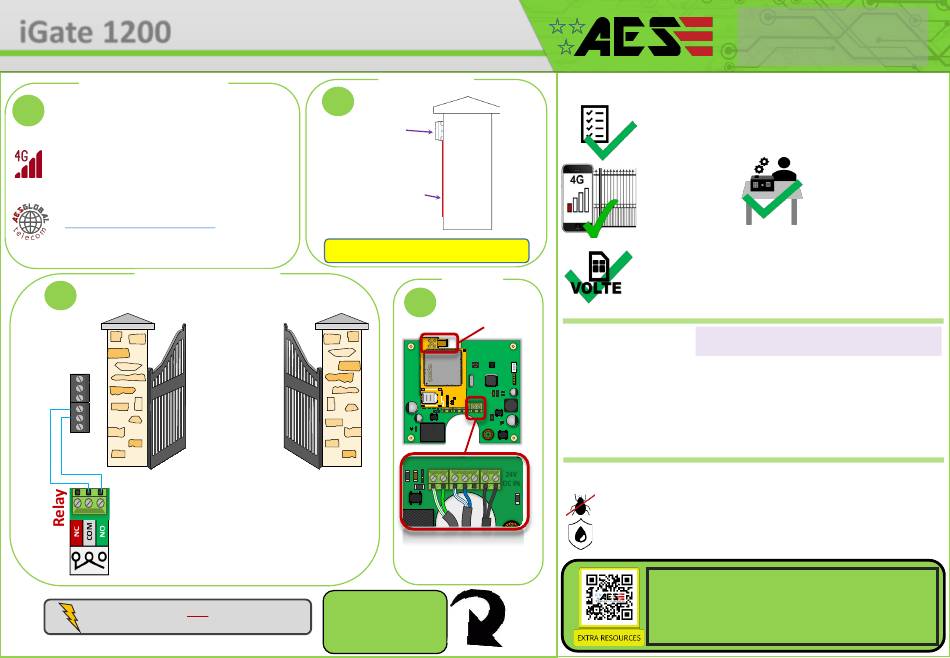

AES iGate 1200 Quick Start Manual

iGate 1200
SIM Preparation
Ensure you read all instructions before
1
continuing.
The SIM cards provided need activated
before use. Follow the instructions
provided or visit our telecoms website for
more details:
www.aesglobaltelecom.com
Relay Connections
Example
4
Gate
Controller
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
1

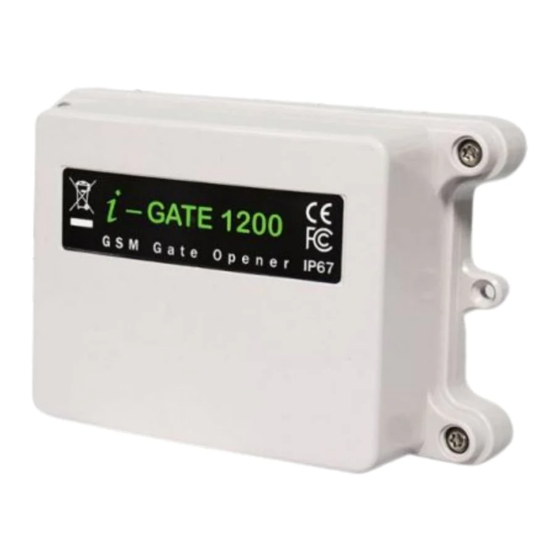

- GSM Gate Opener
2
iGate Enclosure
(Install at height to allow the
internal antenna to find signal.)
DC Power Cable
(1.0mm2 – 8m MAX)
Can be purchased separately.
Driveway
Gates
See overleaf for
more PCB details
Turn Over
Site Wiring
Note: PSU not supplied.
24v DC 1.2A peak.
Power
3
4G Antenna
iGate 1200
101 101
RELAY
24V
101 101
DC IN
R1
24V DC IN
(Polarity Protected)
Find all of our support options such as Web Chat,
SITE SURVEY
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Ensure there is good
4G signal on site. 4G
units will fall back to
3G service in some
countries.
This product requires a basic SMS SIM card. Ensure there is a data
allowance to avoid any potential charges.
Do not use a data only SIM, as this will not work in the unit.
POWER CABLE
ENSURE THE POWER SUPPLY IS REGULATED & DOES NOT
TIP: Most technical calls received are due to installers using CAT5 or alarm cable
to power the unit.
NEITHER are rated to carry enough power! ( 1.2amp peak )
Please use the following cable:
Up to 2 metres ( 6 feet ) – Use minimum 0.5mm
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
INGRESS PROTECTION
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
NEED MORE ASSISTANCE?
+1 (321) 900 4599
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
Full Manuals, Customer Helpline and more on
our website:
WWW.AESGLOBALUS.COM
Set up on a bench in workshop
BEFORE going to site.
Program the unit in the comfort
of your work bench and call
technical support should you
have any questions.
EXCEED 28V AC/DC.
2
( 18 gauge )
2 ( 16 gauge )
2 ( 14 gauge )
