Summary of Contents for Ayyeka BASIC WAVELET KIT

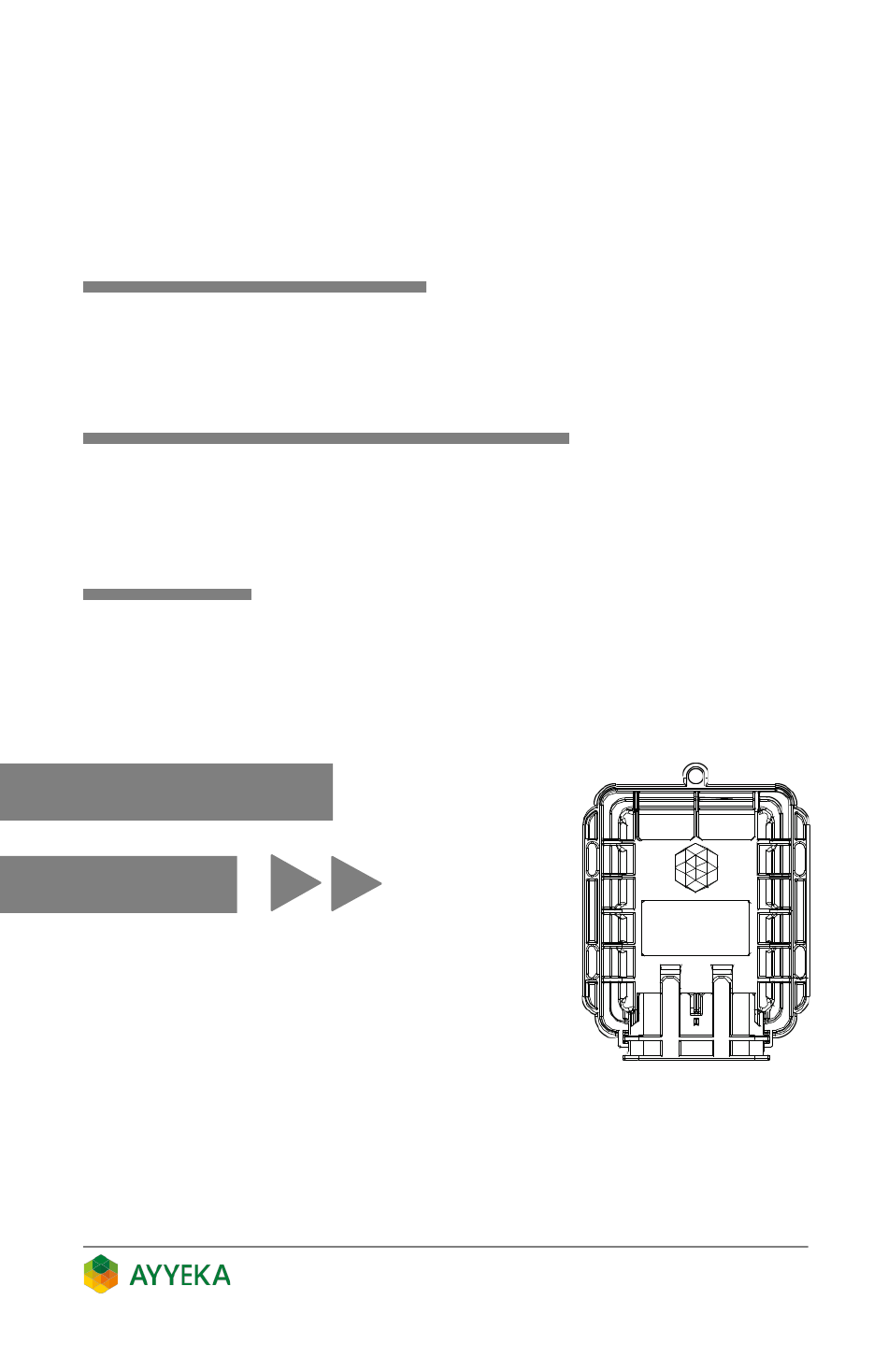

- Page 1 BASIC WAVELET QUICK START GUIDE AYYEKA March 2019 P/N 0100585 Rev A2...
- Page 3 AYYEKA IS NOT LIABLE for damage or injury as a result of handling, installation, or maintenance of its supplied systems. DO NOT THROW AWAY the Basic Wavelet Kit, as it contains a lithium battery. Please dispose of properly. 4G (LTE)/3G/2G cellular network signal is required for proper communication.
- Page 4 SCHEMATIC AYYEKA 13.3 cm (5.2 in) BOTTOM Discrete Port Cellular Antenna Serial Port Analog Port...
-
Page 6: Getting Started
GETTING STARTED BASIC WAVELET KIT Wavelet Device& Wavelet Activator Protector M8 Female Field Attachable M12 Field Attachable Power Connector Sensor Connectors (optional; see page 16) (optional; p a rt WA00180, ordered separately) - Page 7 Zip Ties, Screws, and Cellular Antenna Anchors (REQUIRED; ordered separately) Other tools and/or materials may be required (not included): Rotary Hammer Electric Screw Driver...
- Page 8 (see step 3). Wait for at least 15 minutes, then log in to the user Log in to interface at home.ayyeka.com to home.ayyeka.com to confirm updated location ensure that cellular signal has been recently updated on the map.
-
Page 9: Sensor Connection
SENSOR CONNECTION Connect the sensor cable(s) assembly with the field attachable connector to the mating panel connector on the Wavelet. Turn the adjustable stainless steel end piece to secure the field attachable connector to the Wavelet. CAUTION: Do not turn the black plastic hood of the connector. -
Page 10: External Antenna Connection
Place the magnetic Wavelet Activator on the embossed Ayyeka logo on the front of the Wavelet enclosure. Wavelet will initiate a 15 minute test mode of high frequency sampling and transmission. The device will then return to its default configuration. - Page 11 Green and Red LEDs blink 5x GSM communication error. The device failed t o transmit. Access the Ayyeka user interface at home.ayyeka.com using your log-in credentials. Expect data to appear between 5 – 10 minutes after the test mode is initiated.
- Page 12 Wavelet installation installation successfully and location and activate again can begin collecting and (step 3). If the problem viewing your data! persists, contact Ayyeka for assistance. support@ayyeka.com +1 (310) 876-8040 (US) +31 40 209-1001 (EMEA)
- Page 13 After the Wavelet completes the transmission process,place the Wavelet protector above the connector ports and secure the Wavelet protector into the Wavelet enclosure. Upper Clips Low er Clips a. Insert the two lower clips into the two lower holes of the Wavelet enclosure.
- Page 14 Secure the Wavelet on a wall, pipe, or other secure mounting location using zip ties or screws. Wall Mounte d Pipe Mounte d...
- Page 15 YOUR BASIC WAVELET KIT IS NOW SUCCESSFULL Y INSTALLED!
- Page 16 WAVELET PINOUT ANALOG – PANEL CONNECTOR #1 – M12 8-PIN MALE Cable Connector Connector Function Description Pin Assignment Pin # Front Back Signal 4-20mA or 0-27.5V Input #1 Common Negative (-) Supply+ Wavelet 12V Pow er Supply #2 (+) Supply+ Wavelet 12V Pow er Supply #1 (+) Signal 4-20mA or 0-27.5V Input #4...
- Page 17 WAVELET PINOUT SERIAL – PANEL CONNECTOR #2 – M12 8-PIN FEMALE Connector Function Description Cable Connector Pin Assignment Pin # Front Back Signal RS232 TX Supply+ Wavelet 12V Pow er Supply #4 (+) Supply+ Wavelet 12V Pow er Supply #3 (+) Signal SDI-12 Signal...
-
Page 18: Power Connector Pinout
POWER CONNECTOR PINOUT If using an external power source, refer to the pinout below: EXTERNAL POWER: M8 3-Pin Female Power Connector Ne ga ti ve (-) + Installation Tool for Wire Termination Connection 5-28VDC (+) (Included) Wire To Connect: Cable Wire Cross 0.14 –... - Page 19 NOTES...
- Page 20 QUESTIONS? www.ayyeka.com suppor t@ayyeka.com +1 (310) 876-8040 (US) +31 40 209-1001 (EMEA)
