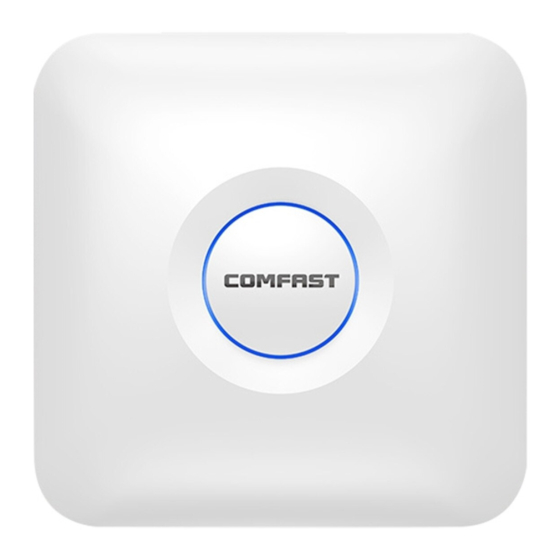

- Page 1 Quick Installation Guide Wireless AP M0304412 V4.0...
- Page 2 The product user guide contains product features, how to use, and the operating procedure. Read the user manual carefully to get the best experience and avoid unnecessary damage. Keep this manual for future reference. Strictly comply with applicable laws and regulations at the place of use. The device must not be used in violation of applicable legislation or for illegal purposes.
-
Page 3: Installation Diagram
1. Installation Diagram Solution 2 Solution 1 Note Solution 1: Single Device Settings: Get into the web setting page independently. Solution 2: Multiple Devices Settings: Do centralized management settings and Local portal by AC core gateway. Note: POE power and other devices which are non-standard, please refer to the packing list. -
Page 4: Ceiling Mount Installation
2. Installation 2.1 Ceiling-mount Installation Ceiling Ceiling 1. Remove the chassis of the ceiling AP, and fix it on ceiling by screw. 2. Connect the LAN port of the device by cable. If there are multiple devices, please connect the WAN port of the device by cable for centralized management. 3. - Page 5 3. Single Device Configuration 3.1 Connection Diagram POE Power Supply (Not Standard) Computer 1. Set the computer to obtain the IP address automatically, and connect the LAN port of the device to the device management interface. 2. The device is defaulted to be fat AP mode. The steps to enter the set interface follow: a.
- Page 6 3. When getting into the setting page, there are four working modes in the Wizard: AP Mode, Bridge Mode, Router Mode, Repeater Mode. 4. Click the AP mode and set up IP Address and Subnet Mask. The IP address and Subnet mask should be within the same network segment as upper network and can’t be in conflict with IP address from upper network router.
- Page 7 6. Bridge Mode: Please ensure the WDS in upper network is enabled. AP device can set up intranet segment (do not set the same IP address as the upper router), and then select the wireless SSID signal you need to bridge (Distinguish between 5.8GHz and 2.4GHz) and input wireless password.
- Page 8 7. Repeater Mode: The AP device can set the internal network segment (the gateway IP should not be the same as the upper device gateway IP). Next, select the name of the wireless SSID signal that you need to relay (distinguish between 5.8GHz and 2.4GHz) and input wireless password.
- Page 9 8. Router Mode: There are three ways to surf the internet: PPPOE, Static and DHCP. Please, refer to router setting as reference.
-
Page 10: Warranty Conditions
Warranty Conditions A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.. The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized: Using the product for any purpose other than that for which the product is intended... -
Page 11: Eu Declaration Of Conformity
IČO: 27082440 Subject of the declaration: Title: WiFi Access Point Model / Type: Comfast E375AC The above product has been tested in accordance with the standard (s) used to demonstrate compliance with the essential requirements laid down in the Directive (s): Directive No.
