Shenzhen Four Seas Global Link Network Technology Co., Ltd
Manufacturer:
1、 Network Bridge Installation
（1） 、AP mode：convert a wired network to wireless WIFI signal for other to connect to the
Internet
（2） 、Repeater Mode：receive the remote wireless signal，and then transmit a wireless signal，
the terminal devices can receive can receive this signal by wireless way or web cable.
（3） 、Router Mode：access a wired network of modem or switch, select the router mode, the
device can send out wireless WIFI signal and share with other terminal devices.
（4） 、Client Mode：receive wireless WIFI signal, then convert wireless signal to a wired network,
the terminal devices connect to the network by web cable.
2、AP Mode settings
（1） 、 Select " AP mode" ,then type in the IP Address, Subnet Mask and default gateway according
to your Router's network address, click on "Next".
（2） 、Set your SSID name and select the type of oncryption, then click on "Apply".
3、Bridge software interface
（1） 、 Open a browser and type in 192.168.10.1 and enter the login interface, the device provides
Chinese and English languages for choice ,the user name and password are both "admin" by
default.
（2） 、Click to Login, enter the AP mode of the four working modes; here please select the
corresponding working mode depending on your type use.
4、Repeater Mode
（1） 、Select the "Repeater Mode" ,enter the setting interface.
（2） 、Click the next step, the device will scan the surrounding wireless signals; choose the SSID,
type in correct password and connect.
（3） 、The Repeater was connected by upper wireless network password network, if need change
for new SSID, click the top" Function Settings" button, select Wireless Basic Parameter Settings"
page to modify the SSID name.
5、Router Mode
（1） 、Select the "Router Mode".
（2） 、click the next step, and the connections have "DHCP", "Static IP", "PPPOE" three types.
Select the corresponding connection, click the next step depending on your network
User Guide

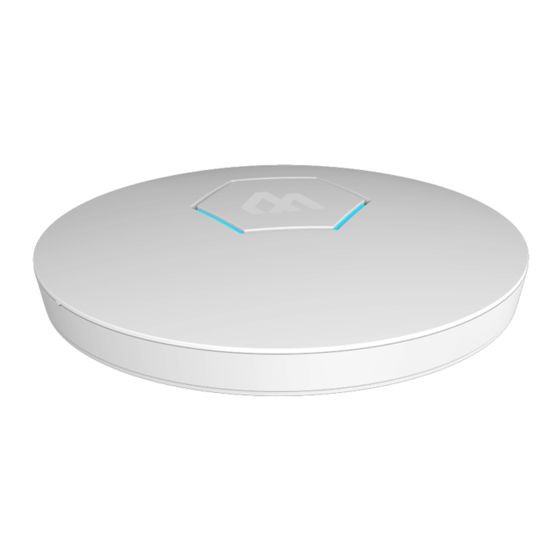

Wireless Access Point
M/N: CF‐E325N
Trade Mark: COMFAST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comfast CF-E325N
Summary of Contents for Comfast CF-E325N
- Page 1 User Guide Wireless Access Point M/N: CF‐E325N Trade Mark: COMFAST Shenzhen Four Seas Global Link Network Technology Co., Ltd Manufacturer: 1、 Network Bridge Installation （1） 、AP mode：convert a wired network to wireless WIFI signal for other to connect to the Internet （2） 、Repeater Mode：receive the remote wireless signal，and then transmit a wireless signal， the terminal devices can receive can receive this signal by wireless way or web cable. （3） 、Router Mode：access a wired network of modem or switch, select the router mode, the device can send out wireless WIFI signal and share with other terminal devices. （4） 、Client Mode：receive wireless WIFI signal, then convert wireless signal to a wired network, the terminal devices connect to the network by web cable. 2、AP Mode settings （1） 、 Select “ AP mode” ,then type in the IP Address, Subnet Mask and default gateway according ...
- Page 2 WAN port can not obtain an IP address; also check whether the local computer is automatically obtain IP address status. （2） 、Plugging the LAN port still can not obtain IP address, you can set the IP address of the local connection manually, set the IP address as same segment of the product. （6） 、How long the cable length does the product support? Insufficient power occurs, how to do? A： When using a long cable, try to choose a high‐quality project dedicated wire, suggested, length less than 60 meters, and use the original power supply. （7） 、The computer shows connected, the signal is full, but actually it can’ t surf the internet. A：As long as the device power on, there will be a “Comfast” SSID name wireless signal. Even if the device is disconnected to external network, we still are able to connect to this signal properly, but no Internet access. Terminal devices require Internet access, then the product must connect to external network. （8） 、What type of default working mode of the device? If use any of the working modes, need restart it? Answer: The default working mode is router mode, DHCP is enabled status, you can directly ...
- Page 3 access the DHCP enabled router or switch to use. In addition to setting AP mode which requires resetting or manually setting the IP to enter the gateway of the device, other working modes can directly get into the gateway. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
