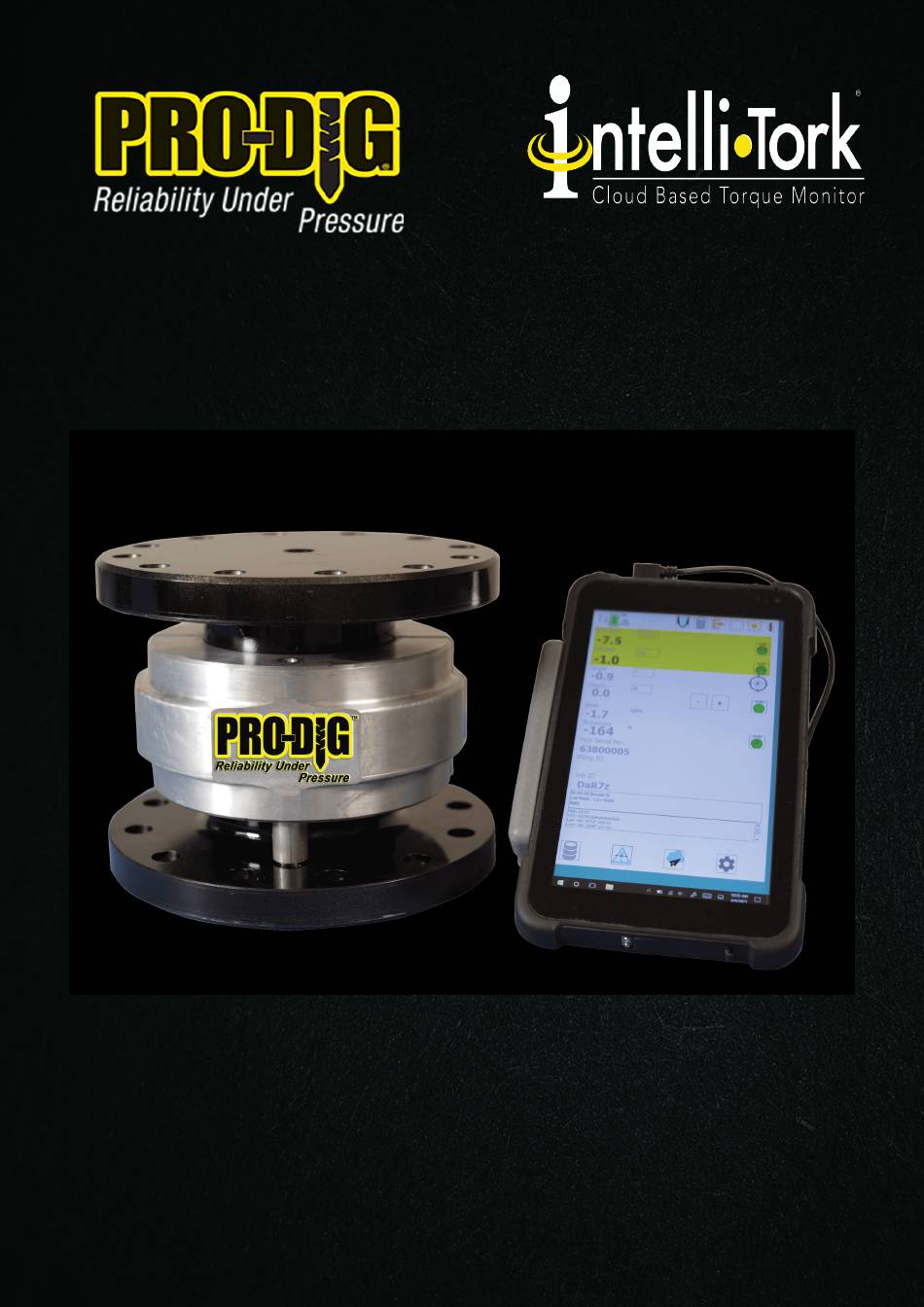

- Page 1 WIRELES SCREW PIER TORQUE MONITORING SYSTEM CLOUD BASED Instruction Manual Manual number: PROITK Operating Instructions Release Date: June 2021 Owners Manual Maintenance Safety Precautions Parts Lists 785.856.2661 WWW.PRO-DIG-USA.COM...
- Page 2 PRO-DIG LLC. Neither the whole, nor any part, may be disclosed, loaned, copied, or otherwise ® disseminated for any purpose whatsoever without express written consent from PRO-DIG LLC. ® No liability is accepted for any loss, damage or injury from any cause whatsoever from the use of this document.
- Page 3 INTRODUCTION INTELLI-TORK CLOUD USER MANUAL (Note: The information provided within this document is applicable to all Intelli-Tork Cloud Systems.) There is no power button on the Intelli-Tork hub. Once the user disconnects from the hub, it will enter sleep mode awaiting connection. Operators must ensure proper disconnection from the hub to maintain maximum battery life.
-
Page 4: Do's And Don'ts
Do not attempt to disassemble the Intelli-Tork unit in any way without communi cation with supplier. Ensure that the torque and thrust parameters are zeroed prior to connecting a helical pile. Backup data/sync to cloud dialy to prevent loss. Ensure calibration is up to date prior to starting your job. WWW.PRO-DIG-USA.COM... - Page 5 Press to connect and disconnect from the Intelli-Tork (ITK). The icon will turn blue once connected and data will be displayed. Disconnect when the ITK is no longer in use. This is to be treated as a power off procedure. Pause and restart data logging.
- Page 6 “Use local TZ in data” box to display the selected time zone in data logs. Torque and Thrust Stabilization can be independantly set to Low, Medium, or High. This will effectively smooth out the displayed values as seen from the main menu. Return to Main Menu. WWW.PRO-DIG-USA.COM...
- Page 7 Start new log file. Each row displayed is a log file. View Data for that specific log file. Press the View icon to view the associate log file. Secting the arrows in the lower right of the individual pile log screen allows the user to advance through the log file.
- Page 8 Enter new Job ID and Pile ID. The current Job ID will remain in the Job ID field until modified. Start Logging Data. (After selecting, return to main menu) Log File Information. Return to Main Menu. WWW.PRO-DIG-USA.COM...
- Page 9 This page allows the user to set alarms and target values in the units displayed on the right. For Cloud based reporting, targets must be set to report Torque and Depth. Once the Alarm value is reached the associated value’s background will turn Red while the alarm value is exceeded, as shown in the figure on the right 785.856.2661...
- Page 10 USB or Micro SD in a .cvs file format for data processing using MS Excel. If the user is downloading log files to a memory device WinZip is required for extraction of zipped files once download to a PC. WWW.PRO-DIG-USA.COM...
- Page 11 Prior to downloading the log files to a memory device, each individual file log must be exported to .csv. To export a log file to .csv, start by navigating to the list of logs. On the log file that you want exported, select the eyeball icon on the far-right side. From this menu, select view.
- Page 12 WWW.PRO-DIG-USA.COM...
- Page 13 NOTES: 785.856.2661...
- Page 14 NOTES: WWW.PRO-DIG-USA.COM...
- Page 15 NOTES: 785.856.2661...
- Page 16 PROUD MEMBER OF: 1604 ROSEPORT RD ELWOOD, KS 66024 785.856.2661 WWW.PRO-DIG-USA.COM...
