Altelix HN-0005 Installation Manual

Page-4
Step 3
When installing Keyed Lock into door, orientate as shown. Install the metal
washer and secure with retaining nut.
Metal Washer
Inside of Enclosure Door
Step 4
Once Keyed Lock is secured, remove the lock cam which is for use with
the NS series enclosures only. This will be replaced with the second lock
cam included in the bag.
Remove NS Enclosure Lock Cam
Once installed, test Padlock Latch to ensure proper operation.
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0159 Rev A 01/28/20
HN-0005 Installation Guide
Retaining Nut
Install NFC Enclosure Lock Cam
Page-1
Keyed Lock Set for NS/NFC Series Enclosures
The HN-0005 is for use with Altelix NS series and NFC series enclosures. It is a
direct replacement for the standard latch included with these enclosures.

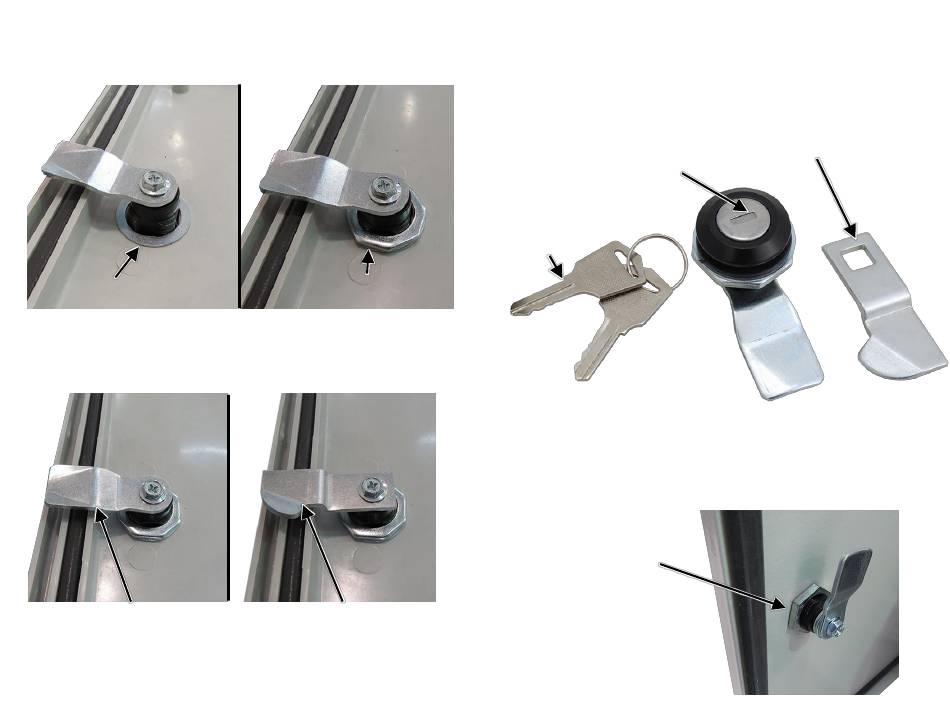

What's In The Bag?
Keyed Lock with Retaining Nut,
Rubber Washer, Metal Washer
and Lock Cam for use with NS
Series enclosures
(2) Keys
NS Series Enclosure Installation
The HN-0005 comes pre-configured for use in the NS series enclosure. The
second lock cam included is not needed for this installation.
Step 1
Remove the existing latch by removing the retaining nut.
Remove Retaining Nut
HN-0005 Installation Guide
Lock Cam for use with NFC Series
enclosures.
