Altelix HN-0006 Installation Manual

Page-4

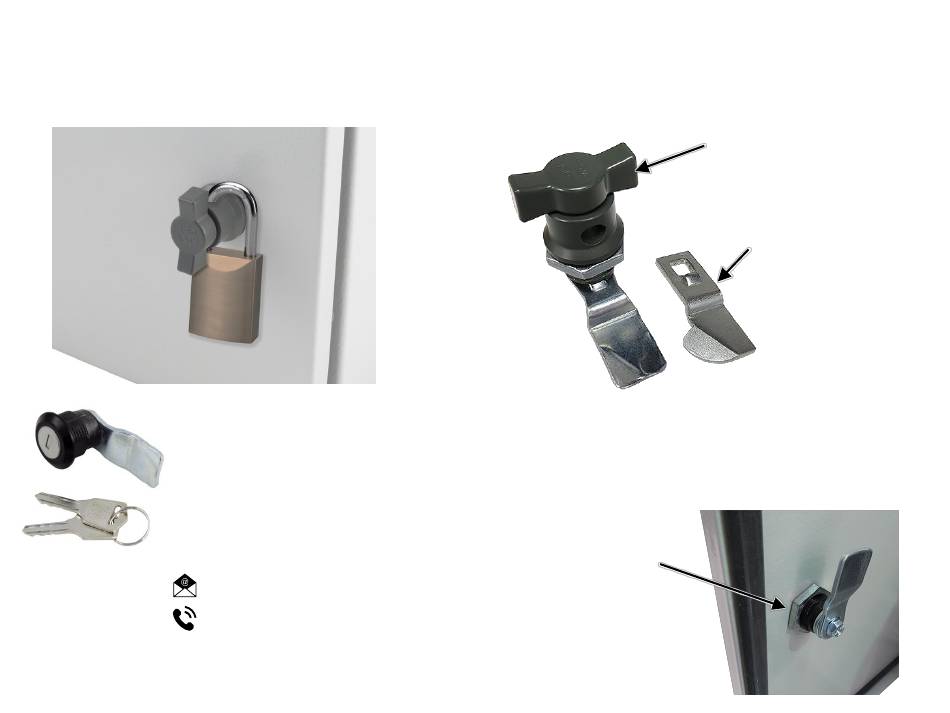

Securing the Enclosure
Turn the Padlock Latch until the enclosure door is securely closed. Then
attach a padlock (not included) as shown.
The HN-0006 will accept padlocks with shackles/shanks ranging from 6mm
to 8mm in diameter.
HN-0005 Keyed Lock Set
Also available to secure the NS and NFC series
enclosure is the HN-0005 Keyed Lock Set. For
more information visit www.ALTELIX.com
Got Questions?
We are here to help.
Contact us at:
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0158 Rev A 01/27/20
HN-0006 Installation Guide
sales@altelix.com
USA & Canada Customers: 866-660-9434
International Customers: +1 561-660-9434
Page-1
Handle Padlock Latch for NS/NFC Series Enclosures
The HN-0006 is for use with Altelix NS series and NFC series enclosures. It is a
direct replacement for the standard latch included with these enclosures.
What's In The Bag?
NS Series Steel Enclosure Installation
The HN-0006 comes pre-configured for use in the NS series enclosure. The
second lock cam included is not needed for this installation.
Step 1
Remove the existing latch by removing the retaining nut.
Remove Retaining Nut
HN-0006 Installation Guide
Padlock Latch with Retaining Nut
and Lock Cam for use with NS
Series enclosures
Lock Cam for use with NFC Series
enclosures.
