Important: Read all instructions prior to installation.
LED Low Voltage Landscape Light
Parts Included
A - Lamp Head
AA - Adapter Trays
B - Main Tube
(F,G,H) - Threaded
C - Center Tube
D - Bottom Ring
E - Ground Stake

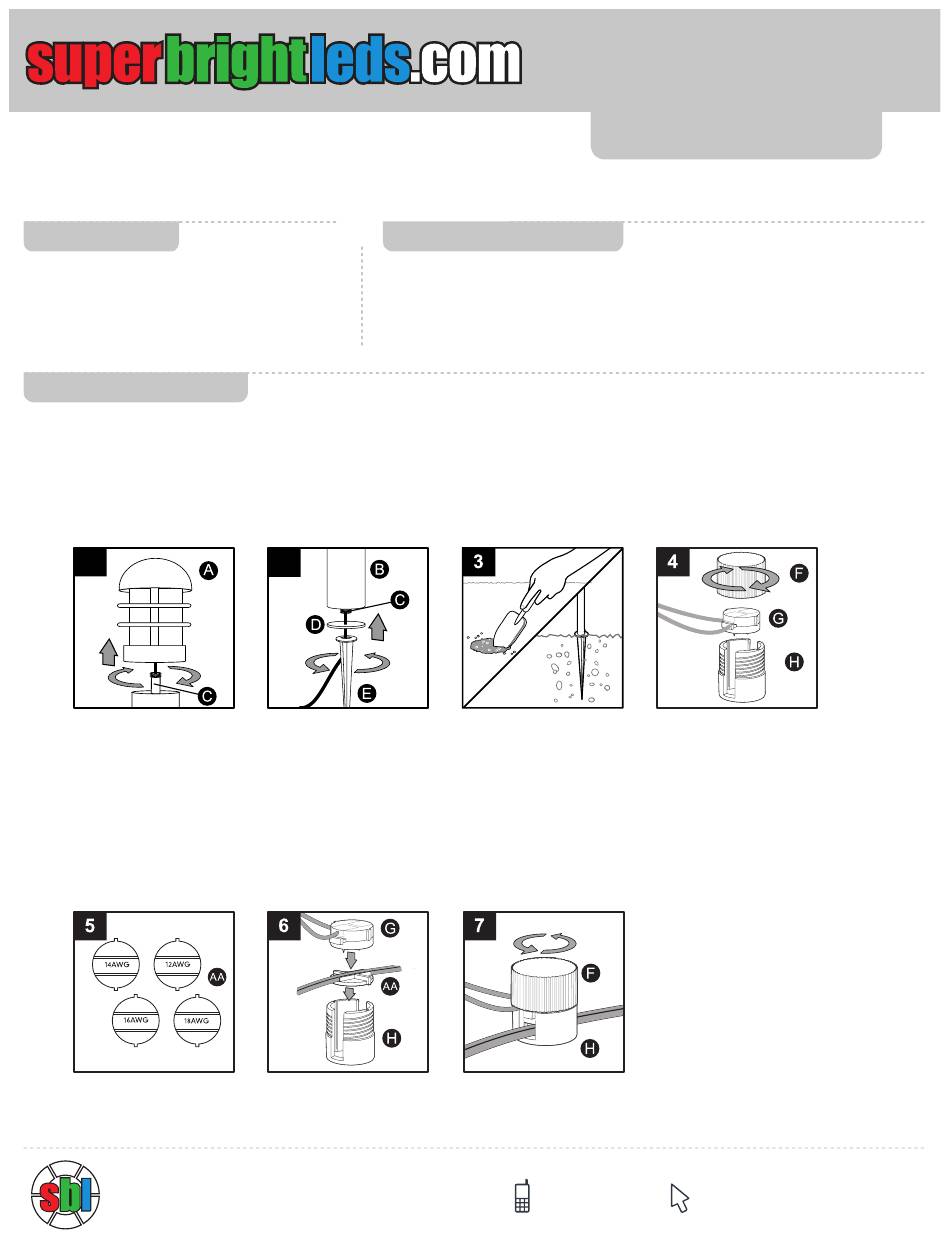

Assembly Instructions
1.
Install the lamp head (A) to the threaded center tube (C).
2.
Install the bottom ring (D) to the main tube (B) and ground stake (E) to the threaded center tube (C).
3.
To install, loosen the ground with a shovel (not included) and/or soften the soil with water, then press the fixture into the
ground. Do not use a hammer. Do not exert excessive force on the fixture while installing as this may cause the fixture to break.
4.
Remove the quick connector cap (F) from the quick connector base (H). Set the connector block (G) aside.
1
5.
Four (4) adapter trays (AA) are included. Each is marked accordingly: 12 AWG, 14 AWG, 16 AWG and 18 AWG. Select the adapter
tray (AA) that matches the gauge of the power cable (not included).
6.
Place the power cable on the adapter tray (AA). Align with the grooves in the quick connector base (H) followed by the connector
block (G). NOTE: To ensure uniform brightness, the first fixture should be a minimum of 10 ft. (3m) from the power pack/transformer
(not included).
7.
Install the quick connector cap (F) onto the quick connector base (H). Screw the quick connector cap (F) until it is secure, making
sure not to over-tighten.
4400 Earth City Expy, St. Louis MO 63045
Preparation Instructions
Before beginning assembly, installation or operation of product, make sure all
parts are present. Compare parts with package contents list and diagram on
Connector
previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 15 minutes. Helpful tools: Trowel/Shovel.
2
Instruction Sheet
Part Number:
PLMB-W2BK
866-590-3533
support@superbrightleds.com
Advertisement
Table of Contents
Related Manuals for Super Bright LEDS PLMB-W2BK
Summary of Contents for Super Bright LEDS PLMB-W2BK
- Page 1 Instruction Sheet Part Number: PLMB-W2BK Important: Read all instructions prior to installation. LED Low Voltage Landscape Light Parts Included Preparation Instructions A - Lamp Head AA - Adapter Trays Before beginning assembly, installation or operation of product, make sure all B - Main Tube (F,G,H) - Threaded parts are present. Compare parts with package contents list and diagram on...
- Page 2 Care and Maintenance: To clean, unplug lamp and wipe with a damp, non-abrasive cloth. Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTION ACTION LED light will not turn on No power. Wattage of power pack/transformer may be exceeded. Loose wire to the connector Make sure brass contact pins pierce the plastic wire insulation and are touching the copper wires inside.
