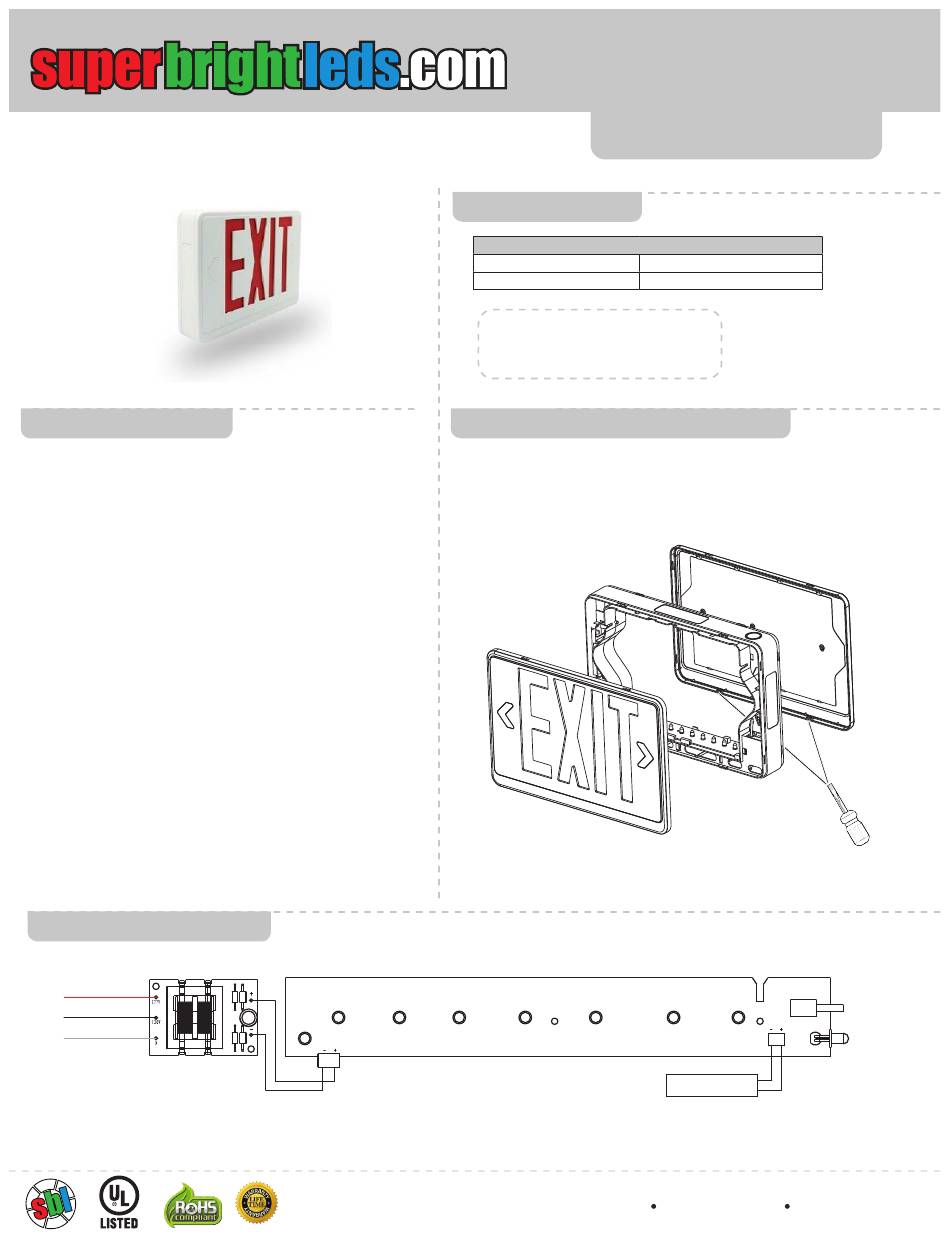

Super Bright LEDS XS2 Series User Manual

Important: Read all instructions prior to installation. SAVE THESE INSTRUCTIONS.
LED Exit Sign
Safety Instructions
Read and follow all safety instructions. When using electrical
equipment, basic safety precautions should always be
followed including the following:
• All wiring should be performed by a qualified electrician.
• Disconnect power before installing or servicing. This fixture
must be wired in accordance with the National Electical
Code and applicable to local codes and ordinances.
• Proper grounding is required to ensure personal safety.
• Do NOT use this equipment for other than its intended use.
• WARNING: Make certain power is OFF before installing or
maintaining fixture. No user serviceable parts inside.
• WARNING: When re-lamping, only use lamps specified
in the exit sign. Using other lamp types may result in
transformer damage or unsafe conditions
• WARNING: Battery in this unit may not be fully charged.
After electricity is hooked up to the unit, let the battery
charge for at least 24 hours. Then normal operation of this
unit should take effect (when applicable).
• WARNING: Equipment should be mounted in locations
and at heights where it will not be subject to tampering by
unauthorized personnel. Flexible conduit only.
• WARNING: do NOT use outdoors.
• WARNING: do NOT mount near gas or electric heaters.
Wiring Diagram
277 VAC(RED)
120 VAC (BLACK)
COMM(WHITE)
AC input
¹Limited 2-year warranty on battery.
XS2-R
¹
Specifications
Operating Temperature
Fixture Weight
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Converting for Dual-Sided Operation
1. Carefully remove the blank panel using a flat-head
screwdriver to release tabs.
2. Install additional "exit" panel in place of the removed panel.
4400 Earth City Expy, St. Louis, MO 63045
User Manual
XS2 Series
XS2-R
32°–104° F (0°–40° C)
2.4 lb (1.1 kg)
Battery
Rev Date: V1 05/07/2021
866-590-3533 superbrightleds.com
Junc
TEST
C
AC ON
