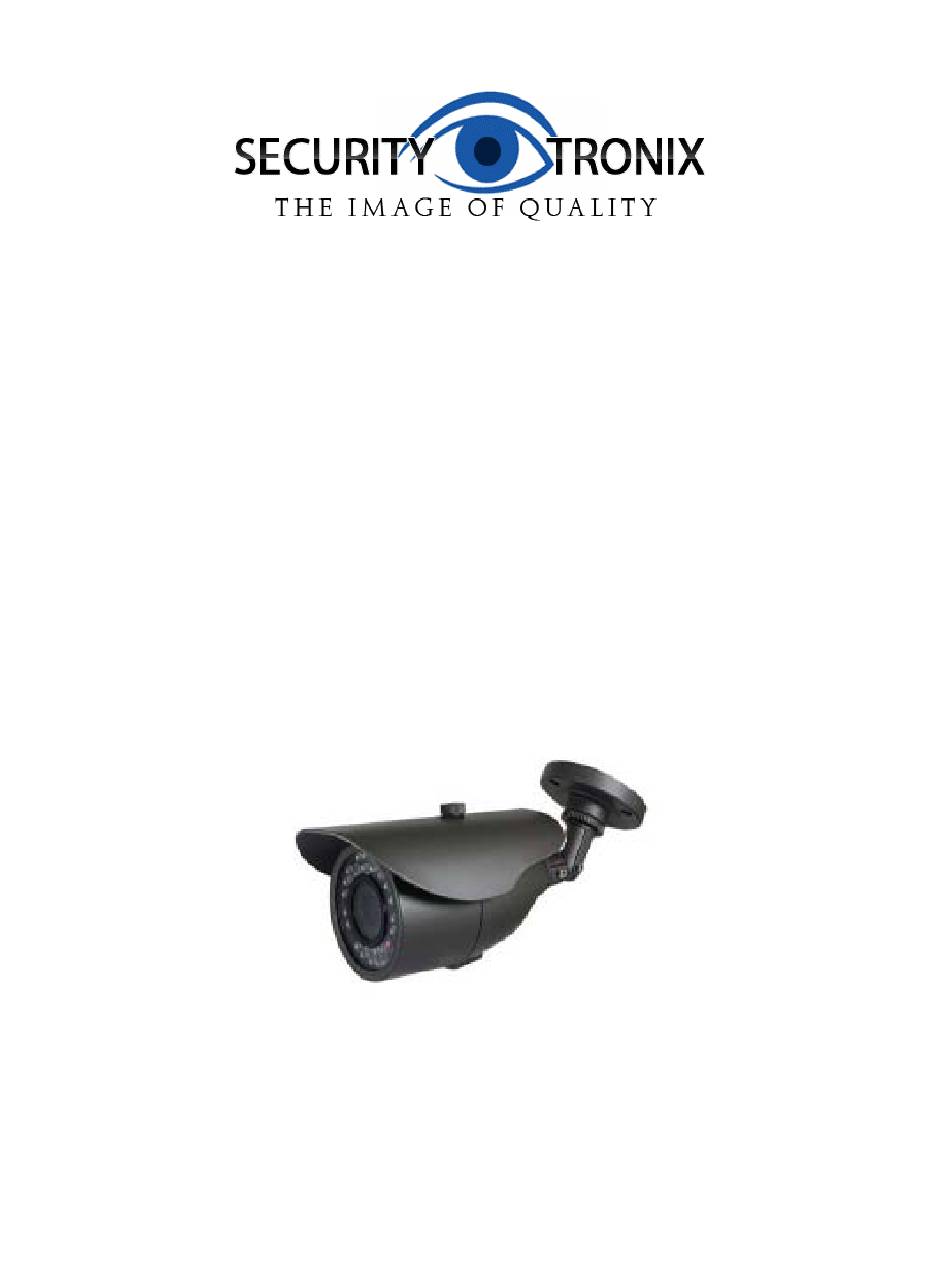

- Page 1 INSTALLATION MANUAL ST-BTLI540IRVF –B or –W Weatherproof Infrared Color Camera v2.0 3/10/11...
- Page 2 This package contains: One ST-BTLI540IRVF-B-W weatherproof infrared color camera One installation manual Note: The ST-BTLI540IRVF-B-W requires a minimum 12VDC 500mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BTLI540IRVF-B-W is a weatherproof infrared color camera designed around a 1/3” Color SONY CCD with 540TVL of resolution and 36 infrared LEDs providing infrared capability up to 98 feet.
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d. Adjust the lens direction according to the required surveillance area and environment. 5.
