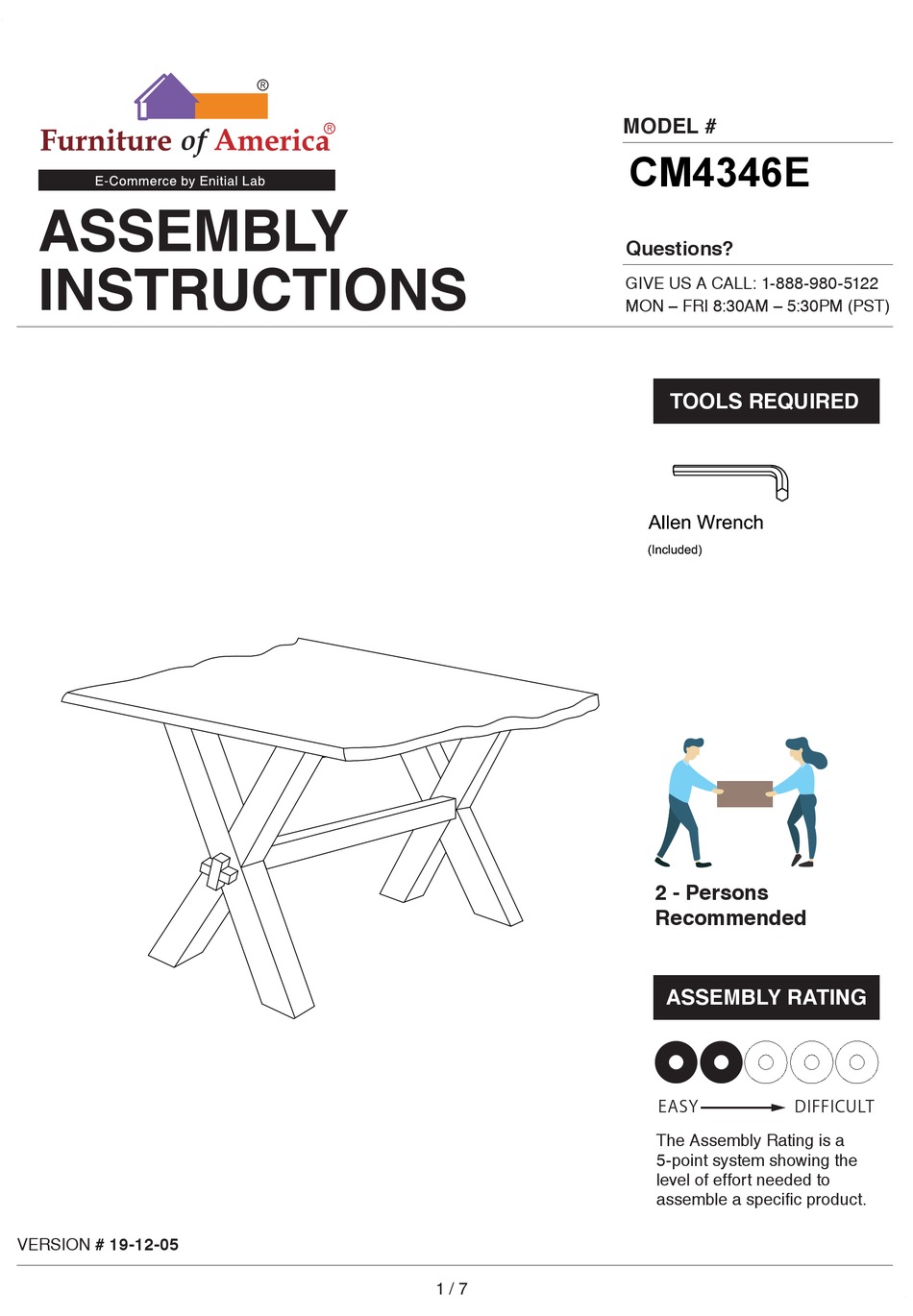

- Page 1 MODEL # CM4346E Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED 2 - Persons Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 7...

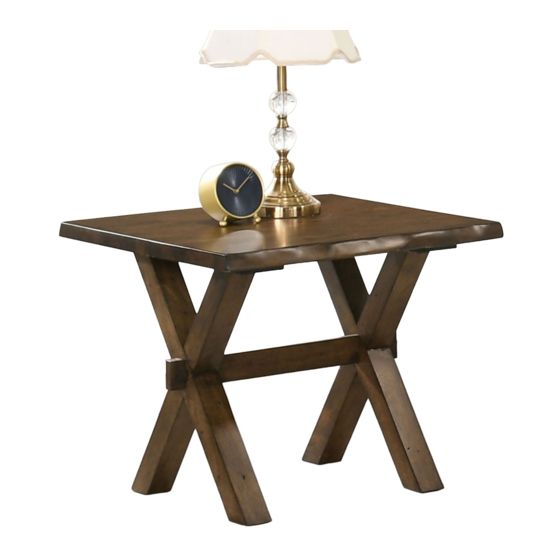

- Page 5 END TABLE CM4346E Please keep instructions for future reference. Check the quantity and irregularity of parts and hardware before you start. 2pcs 2pcs TABLE TOP MOUNTING PLATE TABLE LEG 2pcs CROSS BAR STOPPER 18pcs 16pcs 2pcs M6 SPRING WASHER JCBC BOLT...
- Page 6 Align mounting plate (#2) to the legs (#3), then secure by using bolts (#A) with washers (#C). Part #2 x 2pcs Part #3 x 2pcs Hardware #A x 8pcs Hardware #C x 8pcs Attach dowels (#D) to the ends of the cross bar (#4), then align legs Part #4 x 1pc (#3) to the cross bar (#4).
- Page 7 1) Align mounting plate (#2) to the top (#1), then secure by using bolts (#A) with washers (#C). Part #1 x 1pc Part #5 x 2pcs Hardware #A x 8pcs Hardware #C x 8pcs 2) Attach stopper (#5) to the side of the legs. 7 / 7...
