Meet Your Device
ATEL
4G LTE Cat-4 Home Phone Connect
Voice-Only POTS Replacement
Models Covered:
Model
LTE Bands
V810T
B2/4/5/12/66/71
V810V
B2/4/5/12/13/66/71
Version 2.3

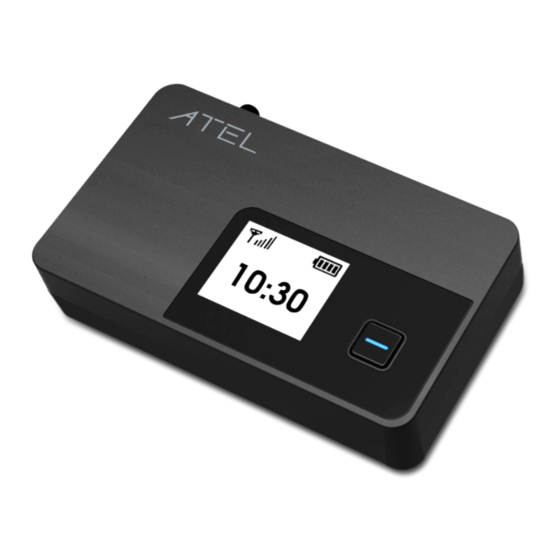

A quick look at your device:
1.
LCD Display
Displays Home and Device
Information display screen
2.
Power Button
Power the V810 On/Off by
pressing and holding this
button for up to 10 seconds.
Short press to wake up the
screen.
3.
Battery Port
Battery port connect to the AA
battery (AA batteries Included)
holder or a Ni-MH
rechargeable battery pack
(sold separately).
4.
Reset Button
Use a pin to push and hold this
button for 3 seconds for a
factory reset.
5.
SIM Card Slot
As needed, insert your 4FF
Nano SIM card into this spring-
loaded SIM slot. To remove,
press the SIM inward.
6.
Type C Port
Use this port to connect the
USB-C cable to a wall adapter
for external power.
7.
Phone Port (RJ11)
Use a telephone cord to
connect your telephone base
to this port.
8.
Antenna Connector
Install an optional antenna
(sold separately) to increase
signal strength. You may have
to pull off the back rubber
cover prior to installing.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atel AXIS V810
Summary of Contents for Atel AXIS V810
- Page 1 A quick look at your device: Meet Your Device ATEL LCD Display SIM Card Slot 4G LTE Cat-4 Home Phone Connect Displays Home and Device As needed, insert your 4FF Information display screen Nano SIM card into this spring- Voice-Only POTS Replacement loaded SIM slot.
- Page 2 Setting up your device: Step 1: Insert a SIM (if applicable) Remove the back cover. Carefully lift the battery holder from the side. Step 3: Power on the Device Check for a pre-installed SIM card or install a SIM card provided by your wireless carrier. To connect your V810 to the power outlet, insert To install, insert the 4FF SIM card into the spring- your USB cable to the device USB-C port and plug...
- Page 3 Step 4: Connecting a Telephone to your V810 Step 5: Initial Activation Complete Steps 1, 2 and 3 above. Once the above 4 steps are completed, with a Plug one end of the telephone cord to the RJ11 service plan subscription, your V810 with Phone Port of your V810 and plug the other end of automatically detect the wireless network and the telephone cord into your telephone base.
- Page 4 For more information Please refer to your V810 User Manual for additional information or visit the ATEL USA website Device and Support pages at www.ATEL-USA.com. @AsiatelcoUSA @atel-asiatelco @ATEL USA @ATEL_USA...
