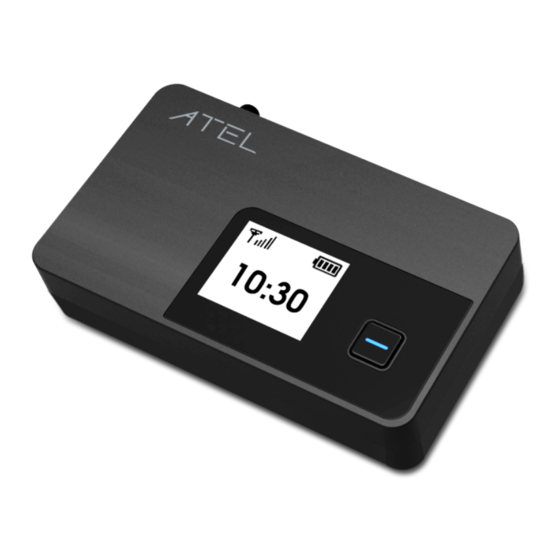

V810
4G LTE Cat-4 Home Phone Connect
POTS Replacement
Models Covered:
Model
LTE Bands
V810T
B2/4/5/12/66/71
V810V
B2/4/5/12/13/66/71
Quick Start Guide
by ATEL
Version 12.5
About your V810:
Device Display
1.
LCD Display
Displays Home and
Device Information
display screen.
2.
Power Button
Power the V810 on/off by
pressing and holding this
button. You can also
short press this button to
wake up the screen and
toggle screens to check
device information
3.
Battery Port
This battery port is used
to connect to the battery
holder (3x AA batteries) or
a Ni-MH rechargeable
battery pack (sold
separately).
4.
Reset Button
Use a pin to push and
hold this button for 3
seconds for factory reset.
Advertisement
Table of Contents
Related Manuals for Atel AXIS V810
Summary of Contents for Atel AXIS V810
- Page 1 About your V810: Quick Start Guide Device Display V810 by ATEL LCD Display Battery Port Displays Home and This battery port is used 4G LTE Cat-4 Home Phone Connect Device Information to connect to the battery display screen. holder (3x AA batteries) or...
- Page 2 SIM Card Slot Phone Port (RJ11) Install Battery Insert your 4FF SIM card Insert a telephone cord to into this spring-loaded this port and plug the Remove the battery cover. Properly align SIM slot. To remove a other end into your and install 3 AA batteries into the battery SIM, press the edge of telephone base.
- Page 3 Align the antenna with the antenna port and screw securely into place (in a clockwise direction). Restart the V810 after the antenna is installed. Note: Antenna sold separately. Using optional accessories (antenna and battery pack) by ATEL are recommended, available at ATEL website, https://www.atel-usa.com/.
- Page 4 Online Device Management Portal You can access your V810 Online Portal to view device status, change your device settings, and perform manual software upgrades. First connect your V810 to a computer with a USB-C cable and then enter http://192.168.0.1 in the browser URL address bar.
- Page 5 Voice/Emergency calls: ATEL cannot guarantee the voice or E911 calls availability. Making a successful call depends on your hardware (telephone) availability, physical location, wireless signal strength, and/or network services. You should never rely solely on any wireless mobile device for essential communications (medical emergencies, for example).
