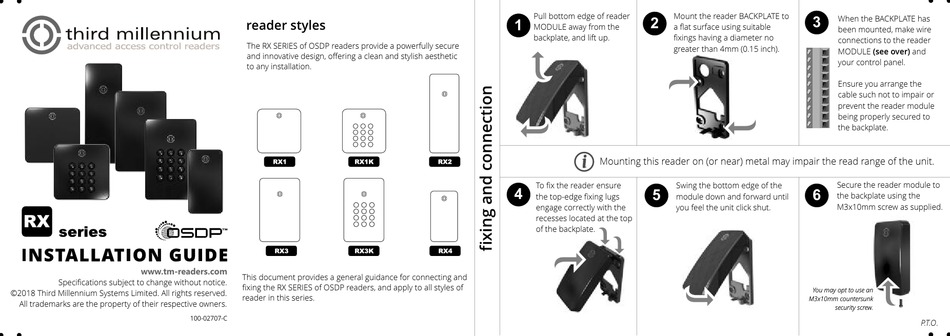

Third Millennium OSDP RX Series Installation Manual

RX
www.tm-readers.com
Specifications subject to change without notice.
©2018 Third Millennium Systems Limited. All rights reserved.
All trademarks are the property of their respective owners.
reader styles
The RX SERIES of OSDP readers provide a powerfully secure
and innovative design, offering a clean and stylish aesthetic
to any installation.
This document provides a general guidance for connecting and
fixing the RX SERIES of OSDP readers, and apply to all styles of
reader in this series.
100-02707-C
Pull bottom edge of reader Mount the reader BACKPLATE to
2
1
MODULE away from the a flat surface using suitable
backplate, and lift up. fixings having a diameter no
greater than 4mm (0.15 inch).
i
Mounting this reader on (or near) metal may impair the read range of the unit.
To fix the reader ensure Swing the bottom edge of the
4
5
the top-edge fixing lugs module down and forward until
engage correctly with the you feel the unit click shut.
recesses located at the top
of the backplate.
3 When the BACKPLATE has
been mounted, make wire
Connections to the reader
MODULE (see over) and
your control panel.
Ensure you arrange the
cable such not to impair or
prevent the reader module
being properly secured to
the backplate.
Secure the reader module to
6
the backplate using the
M3x10mm screw as supplied.
You may opt to use an
M3x10mm countersunk
security screw.
P.T.O.
