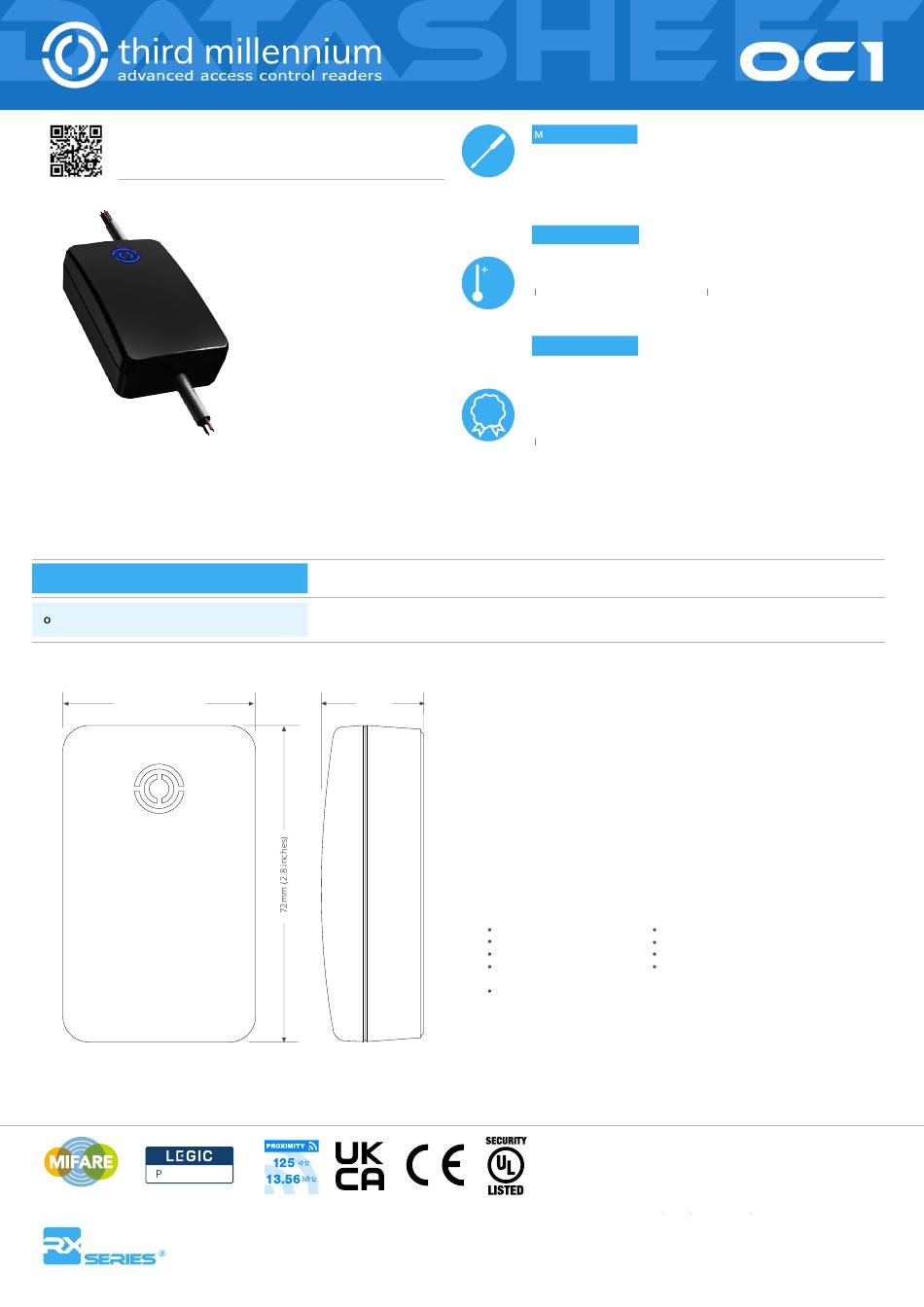

Third Millennium OC1 Manual

Scan the QR code or visit the address below to find a list of datasheets to all products and
other support information.
https://www.tm-readers.com/downloads.htm
Reader Models are sold as customer-specific configurations.
Please call +44 (0) 1495 751 992 to discuss your custom configuration or LEGIC® reader requirements.
MODEL
C1
44mm (1.7 inches)
A R T N E R
Registered Partner
All copyrights © and trademarks ® / ™ are acknowledged and remain the property of their respective owners.
© Third Millennium Systems Ltd
registered in England & Wales No. 3199053
100-03062-OC1-B E&OE SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Overview
The OC1 advanced access control interface
provides an OSDP Secure communications
link to a compatible Third Millennium OSDP
reader.
Mounted close to the control panel, the OC1
provides a compatible Wiegand output to
allow the security of an access control system
to be upgraded cost effectively.
The integrated RGB LED provides a visual
indication of the state of the link between the
OC1 unit and the reader.
Current
mA
35
(without reader)
25mm
(1.0 inch)
echanical
Dimensions 72 x 44 x 25 mm (2.8 x 1.7 x 1.0 inches)
Housing Moulded polycarbonate
Fixing 4mm., max' diameter
Environmental
Operating temp' 0°C to +49°C
49
Humidity 85±5% at 30±2°C (86±3°F)
0
ngress Suitable for NDOOR USE only
C
(ensure you locate and position the OC1 in a SECURE area)
Electrical
Voltage see table below
Current see table below
Data Voltage Rest >4Vdc / Active <1Vdc
1
yr
Data output see table below
ndication 1 RGB LED
Sounder NONE
Termination screw terminal connection block
Voltage
Vdc
10 - 16
The OC1 is not an RFID card reader.
The unit, plus a Third Millennium OSDP reader, makes use of existing reader
cabling, which minimises installation cost and cosmetic damage, and will eliminate
the security vulnerability of the traditional Wiegand interface between an access
control reader, and the control panel.
Key features
OSDP Secure communication
Use existing cabling
Easy access (with SECURE AREA)
Communicates with -
Third Millennium OSDP readers
UK design and manufacture
Panteg Way New Inn PONTYPOOL NP4 0LS United Kingdom
tel: +44 (0) 1495 751 992 web: www.tm-readers.com contact: info@tm-readers.com
Wiegand
Clock & Data
•
Matt black finish
Slim profile
RGB LED
1 year limited warranty
MIFARE', MIFARE Classic' and MIFARE DESFire' are trademarks of NXP B.V.
Third Millennium Systems Ltd.
18 / 19 Torfaen Business Centre
UL294
•
