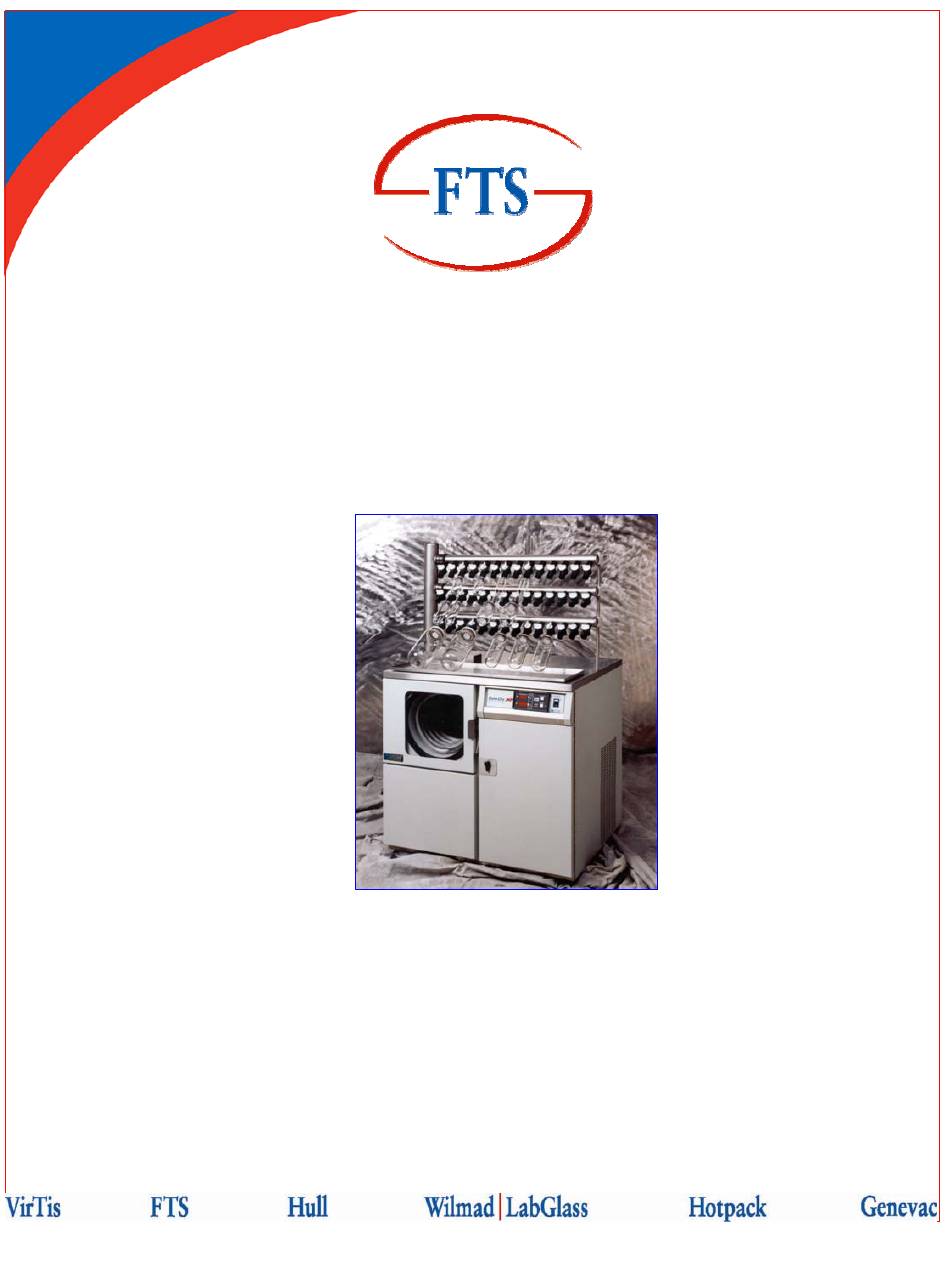

- Page 1 ™ Dura-Dry II Condenser Module Operator’s Manual F T S 3538 Main Street Stone Ridge, NY 12484 USA www.SPIndustries.com (800) 251-1531 or 001 (845) 687-0071 SP Service: (877) 548-4666 or 001 (215) 672-7800 FAX: (845) 687-0024 E-Mail: service@SPindustries.com Document # MNL-032-A, Rev. 004, 12/07...
- Page 2 Notice This Operation Manual contains confidential and proprietary information of SP Industries, Inc. and may be used only by a recipient designated by and for purposes specified by SP Industries, Inc. Reproduction of, dissemination of, modifications to, or the creation of derivative works from this manual, by any means and in any form or manner, is expressly prohibited, except with the prior written permission of SP Industries, Inc.
-
Page 3: Table Of Contents
Troubleshooting........................22 General ............................22 Removing the Condenser.......................24 Vacuum Leak Troubleshooting Procedure..................25 Maintenance ..........................26 Service & Warranties ........................28 FTS Warranties and Service Agreements..................28 Standard Warranty .........................29 Service Options ..........................30 Return of FTS Equipment.......................31 Material Safety Data Sheets .....................32 © SP Industries, Inc. -
Page 4: Important Symbols
Important Symbols Warning! Refer to manual text. Injury or even death may result if a recommendation marked with this symbol is not heeded. Electric Shock Danger! Use appropriate caution to avoid injury or death. Burn Danger! Potentially hot surface. Use appropriate caution. Do not store flammable materials in chamber. -
Page 5: Foreward
Foreward Thank you for buying an SP Industries / Hotpack product. Our goal is 100 percent customer satisfaction. If you are in any way dissatisfied with your order, please contact us immediately. Safety Precautions Your satisfaction and safety will be assured by a complete understanding of this equipment. To assure your satisfaction and safety, as end user of this equipment, it is the operator’s responsibility to understand its function and operational characteristics. -
Page 6: Inspection
Foreward Operator’s Manual: Dura Dry II Always verify that the electric service and other utilities match the unit’s requirements before connecting to power. Always wear safety glasses when using glass flasks. Always practice team lifting when moving heavy equipment. Always ensure that refrigeration air intake is clear and clean. Always ensure that only an authorized technician services the refrigeration, heat transfer, vacuum and electrical systems. -
Page 7: Overview
Overview The Dura-Dry II MP Condenser Modules are the most durable condenser modules available. The stainless steel condenser and stainless steel condenser housing are virtually indestructible regardless of the acid or solvent your product may contain. This system features a... - Page 8 Overview Operator’s Manual: Dura Dry II Rear Panel Hookups 1. Communication Port 2. Sterile Air Inlet 3. Circuit Breaker Right Side Condenser Ventilation © SP Industries, Inc. Rev.004, 12/07...
-
Page 9: Installation
Installation Unpacking The Dura-Dry II MP is packed and shipped complete with vacuum pump in its own carton. Certain items, such as a Liquid Nitrogen Trap, will be shipped in a separate container. Remove from the packing material and make a visual inspection for shipping damage. -
Page 10: Physical Location
29.5°C) Electrical Requirements There will be one power line cord running from the rear of the Dura-Dry II MP. The serial tag at the rear of each system has the voltage requirements for that system. The voltage tolerance for this system is +/-5%. These tolerances are necessary because of the lower temperature specifications of these units. -
Page 11: Vacuum Pump Installation And Maintenance
Installation Operator’s Manual: Dura Dry II Vacuum Pump Installation and Maintenance Before running the system, make sure the vacuum pump oil is full by visually observing the • sight glass on the pump. • Make sure the drain hose is plugged and doors are closed before pulling a vacuum. •... -
Page 12: Liquid Nitrogen Trap
Liquid Nitrogen Trap This trap is sold as an option and may not be included with your unit. The liquid nitrogen trap (LNT) is connected to a freeze-dryer when it is important to trap high vapor pressure solvents. Typically these solvents come off of product early in the cycle. During this time the LNT can be valved so it is on line . -
Page 13: Installation
Operator’s Manual: Dura Dry II Installation The LNT is shipped separately and will need to be installed on the Dura-Dry II MP. 1. Bolt the LNT shelf to the right side of the Dura- Dry II MP with the inlet and outlet tubing entering the appropriate holes in the cabinet. -
Page 14: Operation
Nitrogen Trap Operator’s Manual: Dura Dry II Operation LNT on-line: 1. Open the inlet and the outlet valves while making certain the by-pass valve is closed. 2. Pour liquid nitrogen into the center pot. There should be liquid nitrogen in the center pot whenever the LNT is on-line and trapping high vapor pressure solvents. -
Page 15: Pre-Operational Baseline Performance Test
Module. 1. At the top of the Dura-Dry II MP Condenser Module is a test plug that is inserted into a black rubber grommet. Remove the test plug by moving it side to side while pulling up. Avoid using a rotational movement as this may cause the black rubber grommet to come out of round. -
Page 16: System Start-Up
Microprocessor Control Panel 1. Turn ON the main power switch on the front panel of the Dura-Dry II MP Condenser Module. This switch is also a circuit breaker. If the unit draws too much current, the breaker will switch to the OFF position. -
Page 17: Normal Operation
Microprocessor Controlled Tray Dryer Instruction Manual. 1. Push START/STOP key until you hear an audible signal (beep). 2. The Dura-Dry II MP Condenser Module compressor(s) will activate. The condenser temperature is digitally displayed on the TEMPERATURE indicator. On the left side of the temperature indicator readout is a small green indicator light. -
Page 18: Installation For Manifold Systems
Installation for Manifold Systems 1. Chamber door 2. Microprocessor control 3. Vacuum pump access door 4. CA-3 manifold adapter 5. MS-14 14 port manifold 6. Support rod 7. Coupling 8. Drip pan © SP Industries, Inc. Rev.004, 12/07... -
Page 19: Installation
Operator’s Manual: Dura Dry II Installation 1. Remove the 2½-inch stainless steel plug from the Dura-Dry II MP Condenser Module. 2. Grease the bottom of the CA-3 port. 3. Insert the CA-3 into the port on the top of the Dura-Dry through the black rubber grommet. -
Page 20: Diagram Of Quick-Vac Valves
All FTS flaskware is manufactured with this lip. If you are using another manufacturer’s flaskware, you ma be able to introduce it into the Quick-Vac Valve with no difficulty. FTS also manufactures Quick-Vac Valves that accept flaskware with ¾ inch OD necks. These are called QV-2 Valves and can be purchased directly from FTS at 800.251.1531. -
Page 21: System Defrost And Shut Off
System Defrost and Shut Off 1. Press the DEFROST button until you hear an audible signal. 2. The defrost valve will be turned on the system will break vacuum and turn off the vacuum pump in the correct sequential order. 3. -
Page 22: Troubleshooting
Troubleshooting General If the red out of range VOLTAGE light is on during the start-up of the The VOLTAGE light is system (after the START/STOP keypad is pressed) the power illuminated. supply source to the system is inadequate. The power source should be checked at the outlet and compared to the electrical requirement on the serial tag. - Page 23 START/STOP key pad and then turn the system on again. If the system does not pull down after checking the above mentioned potential leak spots, please contact the FTS Service Department. If during a lyophilization run the OUT OF RANGE light for VACUUM turns on and remains on, the system will sound an audible alarm.
-
Page 24: Removing The Condenser
Troubleshooting Operator’s Manual: Dura Dry II Removing the Condenser The Dura-Dry II MP Condenser Module's condenser need not be removed unless thorough cleaning or servicing is necessary. 1. Unscrew the back grill of the Dura-Dry II MP unit. 2. Unscrew the nuts on the four corners of the back plate. -
Page 25: Vacuum Leak Troubleshooting Procedure
Operator’s Manual: Dura Dry II Vacuum Leak Troubleshooting Procedure Should you determine that you have a vacuum leak in the Dura-Dry II MP Condenser Module we suggest that you use the following procedure. This procedure should be done on the Dura-Dry II MP Condenser Module alone. -
Page 26: Maintenance
Maintenance Periodic maintenance of your freeze-dryer will lead to enhanced performance and help avoid difficulties during a freeze-drying cycle. It will also result in increasing the life of the freeze-dryer. Maintenance should be performed a minimum of 4 times a year. Because system use and application varies from one facility to another you may have to perform system maintenance substantially more often. - Page 27 Maintenance Operator’s Manual: Dura Dry II Tubing All vacuum tubes must be periodically checked for cracks and leaks. The tubing ends of drain lines can contribute to leakage. Periodically, they need to be cut in order to remove dried, cracked, and stretched sections caused by insertion of the larger drain plug.
-
Page 28: Service & Warranties
The FTS Service Division was founded in January of 1971. Our technicians are fully trained to service all electrical, refrigeration, liquid, vacuum, air, and vapor control systems manufactured and sold by FTS. We service all FTS products throughout the world from our home office located at the FTS manufacturing facility in Stone Ridge, New York. -
Page 29: Standard Warranty
Operator’s Manual: Dura Dry II Standard Warranty The FTS standard domestic warranty follows. This warranty covers parts and labor for a period of one year, commencing the date of invoice, for any repairs deemed resultant of a defect in materials and/or workmanship by FTS, F.O.B. Stone Ridge. -
Page 30: Service Options
This plan provides our customers with two onsite visits per year. We would perform a thorough preventative maintenance on your FTS equipment. You will be provided with a PM checklist and a certificate of calibration, which is traceable to N.I.S.T. The purchase of this plan also provides discounted parts and labor rate for additional service if required. -
Page 31: Return Of Fts Equipment
Before working on systems that are not under warranty, the Service Division will provide you with an estimate of the time and cost for the repair of your unit. No work will be started until FTS receives a hardcopy of your purchase order for the repair work. This also applies to warranty work when the customer is responsible for the shipping costs. -
Page 32: Material Safety Data Sheets
Material Safety Data Sheets INLAND VACUUM INDUSTRIES -- 005XX HE 200 VACUUM PUMP OIL MATERIAL SAFETY DATA SHEET FSC: 9150 Manufacturer's CAGE: 59256 Part No. Indicator: A Part Number/Trade Name: 005XX HE 200 ======================================================================== General Information ======================================================================== Item Name: VARIAN CHEMICAL SERIES OIL Company's Name: INLAND VACUUM INDUSTRIES Company's Street: 35 HOWARD AVENUE Company's City: CHURCHVILLE... - Page 33 Operator’s Manual: Dura Dry II MSDS ======================================================================== Appearance and Odor: PALE YELLOW, VISCOUS LIQUID W/FAINT PETROLEUM ODOR Boiling Point: >200C Vapor Pressure (MM Hg/70 F): <0.001 Vapor Density (Air=1): 14 Specific Gravity: 0.87 Solubility In Water: INSOLUBLE ======================================================================== Fire and Explosion Hazard Data ======================================================================== Flash Point: >213C Flash Point Method: COC...
- Page 34 Operator’s Manual: Dura Dry II MSDS THE PRODUCT'S END-USE. CHECK APPLICABLE FEDERAL, STATE & LOCAL COVERING TREATMENT, STORAGE & DISPOSAL OF YOUR PROCESS EFFLUENTS. Other Precautions: AVOID INHALATION OF OIL MIST. ================================================================ Control Measures Respiratory Protection: AS REQUIRED FOR EXPOSURES ABOVE TLV. Ventilation: LOCAL OR MECHANICAL AS REQUIRED TO KEEP EXPOSURE BELOW TLV.
- Page 35 Operator’s Manual: Dura Dry II MSDS ALLIED SIGNAL -- GENERTRON AZ-50 (R-507) Refrigerant MATERIAL SAFETY DATA SHEET NSN: 683000N076833 Manufacturer's CAGE: 70308 Part No. Indicator: A Part Number/Trade Name: GENERTRON AZ-50 (R-507) =========================================================================== General Information =========================================================================== Company's Name: ALLIED SIGNAL INC Company's Street: 101 COLUMBIA ROAD Company's P.
- Page 36 Operator’s Manual: Dura Dry II MSDS Ingredient Sequence Number: 05 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE ACGIH TLV: NOT APPLICABLE ------------------------------------- Proprietary: NO Ingredient: ING 5:IS UNLIKELY, DISCOMFORT IN THE GI TRACT WOULD RSLT FROM THE RAPID EVAP (BOILING) OF THE MATL, & CONSEQUENT (ING 7) Ingredient Sequence Number: 06 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE...
- Page 37 Operator’s Manual: Dura Dry II MSDS Ingredient Sequence Number: 13 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE ACGIH TLV: NOT APPLICABLE ------------------------------------- Proprietary: NO Ingredient: ING 13:SEE THE REGULATORY INFORMATION SECTION (#15) REGARDING REPORTING REQUIREMENTS OF THIS MSDS. Ingredient Sequence Number: 14 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE ACGIH TLV: NOT APPLICABLE...
- Page 38 Operator’s Manual: Dura Dry II MSDS Ingredient Sequence Number: 21 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE ACGIH TLV: NOT APPLICABLE ------------------------------------- Proprietary: NO Ingredient: EYE PROT: AND FULL LENGTH FACESHIELD (FP N). Ingredient Sequence Number: 22 NIOSH (RTECS) Number: 9999999ZZ OSHA PEL: NOT APPLICABLE ACGIH TLV: NOT APPLICABLE -------------------------------------...
- Page 39 Operator’s Manual: Dura Dry II MSDS Conditions To Avoid (Poly): NOT RELEVANT. =========================================================================== Health Hazard Data =========================================================================== LD50-LC50 Mixture: NONE SPECIFIED BY MANUFACTURER. Route Of Entry - Inhalation: YES Route Of Entry - Skin: YES Route Of Entry - Ingestion: YES Health Haz Acute And Chronic: EMER OVERVIEW: COLORLESS, VOLATILE LIQ W/ ETHERAL &...
- Page 40 Operator’s Manual: Dura Dry II MSDS IMPERVIOUS CLOTHING SHOULD ALSO BE PROMPTLY REMOVED WHEN (ING 24) 153.9 PSIG @ 70F, 366.8 PSIG @ 130F. PH:NEUTRAL % VOL:68F(20C) 100 EXPLO HAZ: EXPLO/EXOTHERMIC RXNS UNDER SPECIFIC CNDTNS (E.G., VERY HIGH TEMP &/ APPROP PRESS).
- Page 41 Operator’s Manual: Dura Dry II MSDS MOBIL EAL ARCTIC 22 601054-00 MATERIAL SAFETY DATA BULLETIN ----------------------------------------------------------------------- 1. PRODUCT AND COMPANY IDENTIFICATION ----------------------------------------------------------------------- PRODUCT NAME: MOBIL EAL ARCTIC 22 SUPPLIER: MOBIL OIL CORP. NORTH AMERICA MARKETING AND REFINING 3225 GALLOWS RD. FAIRFAX, 22037 24 - Hour Emergency (call collect):...
- Page 42 Operator’s Manual: Dura Dry II MSDS be used to flush spills away from exposure. Prevent runoff from fire control or dilution from entering streams, sewers, or drinking water supply. SPECIAL PROTECTIVE EQUIPMENT: For fires in enclosed areas, fire fighters must use self-contained breathing apparatus. UNUSUAL FIRE AND EXPLOSION HAZARDS: None.
- Page 43 Operator’s Manual: Dura Dry II MSDS ODOR: Mild ODOR THRESHOLD-ppm: NE pH: NA BOILING POINT C(F): > 316(600) MELTING POINT C(F): NA FLASH POINT C(F): 230(446) (ASTM D-92) FLAMMABILITY: NE AUTO FLAMMABILITY: NE EXPLOSIVE PROPERTIES: NA OXIDIZING PROPERTIES: NA VAPOR PRESSURE-mmHg 20 C: & lt; VAPOR DENSITY: NE EVAPORATION RATE: NE RELATIVE DENSITY, 15/4 C: 0.99...
- Page 44 Operator’s Manual: Dura Dry II MSDS occurring soil organisms when exposed to air. ----------------------------------------------------------------------- 13. DISPOSAL CONSIDERATIONS ----------------------------------------------------------------------- WASTE DISPOSAL: EVEN THOUGH THIS PRODUCT IS READILY BIODEGRADABLE, IT MUST NOT BE INDISCRIMINATELY DISCARDED INTO THE ENVIRONMENT. This product is suitable for burning in an enclosed, controlled burner for fuel value and for recycling at an approved facility.
- Page 45 Operator’s Manual: Dura Dry II MSDS ----------------------------------------------------------------------- USE: COMPRESSOR OIL NOTE: MOBIL PRODUCTS ARE NOT FORMULATED TO CONTAIN PCBS. ----------------------------------------------------------------------- INGREDIENT CAS NUMBER |& lt; -------------------------------------- > | |& lt; -------- | SYNTHETIC COMPRESSOR OIL NJT 003066009-5279 *********************************************************************** For Internal Use Only: MHC: 1* 1* 0* 0* 1*, MPPEC: A, TRN:...
- Page 46 Operator’s Manual: Dura Dry II MSDS MATHESON GAS PRODUCTS -- PROPANE / R290 MATERIAL SAFETY DATA SHEET FSC: 6830 Manufacturer's CAGE: 0FB11 Part No. Indicator: A Part Number/Trade Name: PROPANE ================================================================ General Information ======================================================================== Item Name: PROPANE Company's Name: MATHESON GAS PRODUCTS Company's Street: 30 SEAFIEW DRIVE Company's City: SEACAUCUS Company's State: NJ...
- Page 47 Operator’s Manual: Dura Dry II MSDS Specific Gravity: 0.5853 @-45C Decomposition Temperature: UNKNOWN Evaporation Rate And Ref: UNKNOWN Solubility In Water: VERY SLIGHTTLY Magnetism (Milligauss): N/P Corrosion Rate (IPY): UNKNOWN Autoignition Temperature: 842F ======================================================================== Fire and Explosion Hazard Data ================================================================Flash Point: -157F,-105C Flash Point Method: N/P Lower Explosive Limit: 9.5%...
- Page 48 Operator’s Manual: Dura Dry II MSDS Explanation Carcinogenicity: THIS COMPOUND CONTAINS NO INGREDIENTS AT CONCENTRATIONS OF 0.1% OR GREATER THAT ARE CARCINOGENS OR SUSPECT CARCINOGENS. Signs/Symptoms Of Overexp: ABOVE 100,000 PPM; SYMPTOMS OF EXPOSURE MAY INCLUDE DIZZINESS, STUPOR, AND UNCONSCIOUSNESS. ACGIH CLASSIFIES PROPANE AS AN ASPHYXIANT.
- Page 49 Operator’s Manual: Dura Dry II MSDS ======================================================================== Transportation Data ======================================================================== Trans Data Review Date: 93348 DOT PSN Code: MFA DOT Proper Shipping Name: PROPANE DOT Class: 2.1 DOT ID Number: UN1978 DOT Label: FLAMMABLE GAS IMO PSN Code: MIR IMO Proper Shipping Name: PROPANE IMO Regulations Page Number: 2147 IMO UN Number: 1978 IMO UN Class: 2(2.1)
- Page 50 Operator’s Manual: Dura Dry II MSDS FRESH AIR. IF NOT BREATHING, GIVE CPR/OXYG. KEEP WARM & @ REST. CALL DR. INGEST:TREAT LIPS/MOUTH/MUCOUS MEMBRANES FOR FROSTBITE. CALL DR. TARGET ORGANS:CNS/SKIN/EYE. DON'T DROP CYLINDER. STORE IN CONTAINERS MEETING BONDING/GROUNDING GUIDELINES IAW NFPA 77-1983, RECOMM PRACT ON STATIC ELECTRICITY.
- Page 51 Operator’s Manual: Dura Dry II MSDS "SUVA" 95 (R-508B) 6087FR Revised 10-JUL-1997 CHEMICAL PRODUCT/COMPANY IDENTIFICATION Material Identification Corporate MSDS Number : DU008080 Company Identification MANUFACTURER/DISTRIBUTOR DuPont 1007 Market Street Wilmington, DE 19898 PHONE NUMBERS Product Information : 1-800-441-7515 Transport Emergency : CHEMTREC 1-800-424-9300 Medical Emergency : 1-800-441-3637...
- Page 52 Operator’s Manual: Dura Dry II MSDS First Aid IF HIGH CONCENTRATIONS ARE INHALED: Immediately remove to fresh air. Keep persons calm. Call a physician. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. IN CASE OF SKIN CONTACT: Flush with water.
- Page 53 Operator’s Manual: Dura Dry II MSDS Material evaporates at atmospheric pressure (vaporizes). Ventilate area - especially low places where heavy vapors might collect. Remove open flames. HANDLING AND STORAGE Handling (Personnel) Avoid contact of liquid with eyes and prolonged skin exposure.
- Page 54 Operator’s Manual: Dura Dry II MSDS Odor : Slight ethereal Form : Compressed Gas Color : Clear, colorless STABILITY AND REACTIVITY Chemical Stability Material is stable. However, avoid open flames and high temperatures. Decomposition This product can be decomposed by high temperatures (open flames, glowing metal surfaces, etc.) forming HF, COF2 or These materials are toxic and irritating.
- Page 55 Operator’s Manual: Dura Dry II MSDS Effects observed in animals by inhalation include decreased growth rate, pulmonary changes, irregular respiration, increased urine volume and creatinine, reversible pathological changes in the kidneys, and increased urinary fluoride concentration. One study showed no arrhythmogenic effects in dogs at a concentration of 20%, while another study did show some arrhythmogenic effects in both guinea pigs and dogs.
- Page 56 Operator’s Manual: Dura Dry II MSDS OTHER INFORMATION NFPA, NPCA-HMIS NPCA-HMIS Rating Health Flammability Reactivity Personal Protection rating to be supplied by user depending on use conditions. ---------------------------------------------------------------------- The data in this Material Safety Data Sheet relates only to the specific material designated herein and does not relate to use in combination with any other material or in any process.
