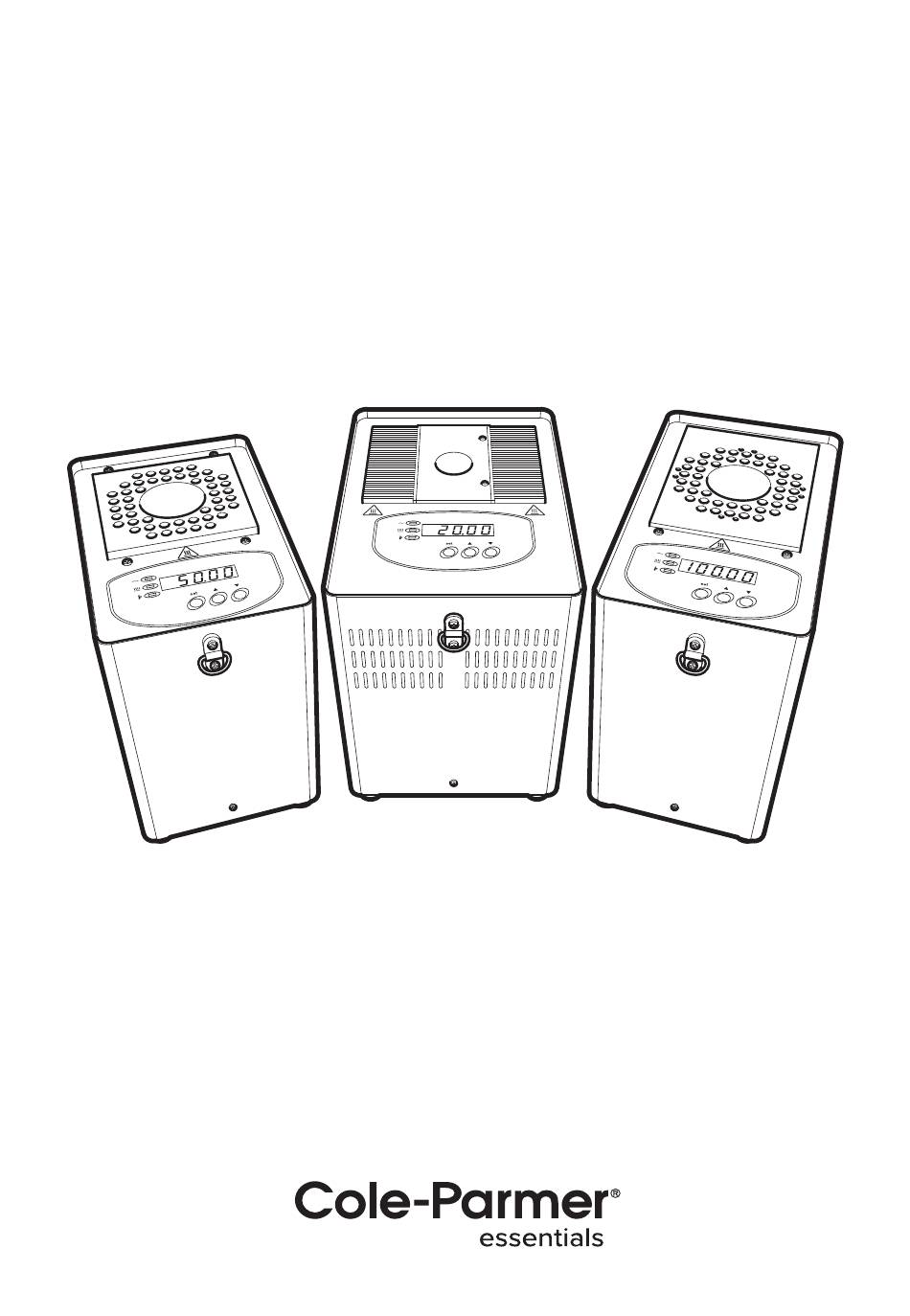

- Page 1 Cole-Parmer ® HBC-100 & HBC-200 Series Heating Block Calibrators Instruction Manual 7002714-CPB Version 3...
-
Page 2: Table Of Contents
CONTENTS PAGE INTRODUCTION BEFORE USE SAFETY AND INSTALLATION English Français Deutsch Español Italia SPECIFICATION OPERATION Button description Icon description Preparation Setting the operating temperature Changing the display units and setting two set temperatures After use ADDITIONAL INFORMATION User maintenance Cleaning Fuses Fault finding TECHNICAL SUPPORT AND SERVICING... -
Page 3: Introduction
INTRODUCTION Please read all the information in this booklet before using the unit. The HBC-100 & HBC-200 Series Calibrators are designed to provide safe and convenient calibration of a wide range of thermal sensors. It features fast heat up times, with accuracy and repeatability. Applications The HBC unit can calibrate temperature probes without the need to return them to a specialist laboratory. -
Page 4: Safety And Installation
SAFETY AND INSTALLATION Please read all the information in this manual before using the Calibrator. WARNING HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite combustible material. Cole-Parmer have taken great care in the design of these units to protect operators from hazards, but operators should pay attention to the following points: •... - Page 5 Plug the mains cable into the socket on the back of the instrument. Note that the following symbols may be next to the indicator lamps on the front panel of the units and have the following meanings: the power indicator the heater indicator the over-temperature indicator 6.
- Page 6 SÉCURITÉ ET CONSIGNES D’INSTALLATION Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser le Calibrator. AVERTISSEMENT Les TEMPÉRATURES ÉLEVÉES SONT DANGEREUSES car elles peuvent provoquer de graves brûlures chez l’opérateur et enflammer les matériaux combustibles. Cole-Parmer a apporté un soin tout particulier à la conception de ces appareils de façon à assurer une protection maximale des opérateurs, mais il est recommandé...
- Page 7 4. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil. 5. Les symboles ci-dessous situés à côté des témoins lumineux sur la face avant de l’appareil ont la signification suivante : : témoin d’alimentation : témoin de chauffage : témoin d’excès de température 6.
- Page 8 SICHERHEITS- UND INSTALLATIONSINFORMATIONEN Lesen Sie diese Anleitung vor Verwendung des Calibrator bitte sorgfältig durch. ACHTUNG HOHE TEMPERATUREN STELLEN EINE GEFAHRENQUELLE DAR. Sie können schwere Brandverletzung verursachen und brennbare Stoffe entzünden. Cole-Parmer hat bei der Konstruktion dieses Gerätes sehr darauf geachtet, daß der Bediener vor Gefahren geschützt ist.
- Page 9 4. Stecken Sie das Netzkabel in die Buchse auf der Geräterückseite ein. Wenn die Anzeigenlämpchen an der Vorderseite leuchten, hat dies folgende Bedeutung: : Gerät ist eingeschaltet : Gerät heizt : Übertemperaturschutz ist ausgelöst 6. Schalten Sie das Gerät ein: Netzschalter Ein Netzschalter Aus Ersatzkabel...
- Page 10 INFORMAZIONI SULLA SICUREZZA E L'INSTALLAZIONE Leggere attentamente il presente manuale prima di usare il Calibrator. AVVERTENZA Le ALTE TEMPERATURE SONO PERICOLOSE in quanto possono provocare serie ustioni agli operatori e dare fuoco al materiale combustibile. La Cole-Parmer ha posto particolare cura nel progettare questo strumento, al fine di proteggere gli operatori da eventuali pericoli, ma gli utilizzatori devono prestare attenzione ai seguenti punti: •...
- Page 11 3. Collocare l'unità su un banco piano idoneo o in una cappa aspirante se necessario, assicurandosi che gli sfiati delle prese d'aria nella parte inferiore non siano ostruiti. 4. Inserire il cavo di rete nella presa che si trova sul retro dello strumento. Los símbolos, que pueden aparecer junto a las luces indicadoras en el panel frontal del equipo, tienen los siguientes significados: : Indicador de potencia...
- Page 12 Nonostante la descrizione e le specifiche dello strumento contenuti nel manuale dell'operatore, Cole-Parmer si riserva il diritto di apportare le modifiche ritenute opportune agli strumenti o a qualsiasi loro componente. INFORMACIÓN DE SEGURIDAD E INSTALACIÓN Lea atentamente este manual antes de utilizar el Calibrator. ADVERTENCIA LAS ALTAS TEMPERATURAS SON PELIGROSAS, ya que pueden ocasionar quemaduras graves a los operarios y prender el material combustible.
- Page 13 de que los orificios de ventilación situados en la parte inferior no tienen ninguna obstrucción. 4. Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento. I simboli seguenti, che possono essere collocati in prossimità delle luci di indicazione sul pannello anteriore dell’apparecchio, hanno i seguenti significati: indicatore di potenza indicatore di riscaldamento...
-
Page 14: Specification
SPECIFICATION HCB-100-140F Specification The figures stated in the specification are as measured 0-50 mm from the base of the well of the insert, using an SPRT, at the time of calibration. Minimum temperature *45°C below ambient Typically -20°C in an ambient of 25°C Maximum temperature 140°C Temperature accuracy... - Page 15 HCB-200-425F Specification The figures stated in the specification are as measured 0-50 mm from the base of the well of the insert, using an SPRT, at the time of calibration. Minimum temperature 20°C above ambient Maximum temperature 425°C Temperature accuracy ±0.3°C Temperature uniformity ±0.2°C...
- Page 16 HCB-200-650F Specification The figures stated in the specification are as measured 0-50 mm from the base of the well of the insert, using an SPRT, at the time of calibration. Minimum temperature 25°C above ambient Maximum temperature 650°C Temperature accuracy ±0.4°C Temperature uniformity ±1°C...
-
Page 17: Operation
OPERATION When You Switch On When you first switch on, the display will show the edition of the software which your unit uses. For example software issue "3.13" would be shown as follows: It will display this for 1 second, then the actual temperature of the block will be indicated. - Page 18 The DOWN ARROW Button When the SET temperature button is held down and the DOWN ARROW button is pressed, the set temperature is decreased. Speed of Change of Set Temperature Each press of the UP ARROW or DOWN ARROW buttons will increase decrease the set temperature by 0.1°C.
-
Page 19: Setting The Operating Temperature
Setting the units for temperature The unit will normally be set to display in °C, if you require it to work and display in °F press both the UP ARROW and DOWN ARROW buttons at the same time. To convert back, press both buttons again. Setting the Operating Temperature To display the set temperature on the digital display, press and hold the SET Temperature button. - Page 20 RS232 Serial Interface (where applicable) The calibrator may send data logging information to an PC or compatible computer by connecting the unit and the PC via an RS232 cable, and installing the "Calsoft" software, available free of charge from our web-site. Ensure that there is a connection made before the calibrator is switched on.
-
Page 21: Additional Information
ADDITIONAL INFORMATION User Maintenance NOTE THAT THIS EQUIPMENT SHOULD ONLY BE DISMANTLED BY PROPERLY TRAINED PERSONNEL. REMOVING THE FRONT OR REAR PANELS EXPOSES POTENTIALLY LETHAL MAINS VOLTAGES. THERE ARE NO OPERATOR MAINTAINABLE PARTS WITHIN THE EQUIPMENT. In the unlikely event that you experience any problems with your unit which cannot easily be remedied, you should contact your supplier and return the unit if necessary. -
Page 22: Replacement Parts
REPLACEMENT PARTS Part No. Description 6101058 Insert extractor FCAB10UK Mains cable, 230V UK units FCABLEEU Mains cable, 230V units FCABLEUS Mains cable, 120/100V units ACCESSORIES Part No. Description FCAL232 CALSOFT PC software kit (includes RS232 cable) Supplied with models with RS232 connection FCALFCSE Soft carrying case FCALFCSH... -
Page 23: Declaration Of Conformity
This product meets the applicable CE Directives that interference will not occur in practise. Where and UKCA Legislation for radio frequency there is a possibility that injury, damage or loss might interference and may be expected not to occur if equipment malfunctions due to radio interfere with, or be affected by, other equipment with similar frequency interference, or for general advise before qualifications. - Page 24 Ordering Information Order No. Series Model Legacy SKU 16102-04 HCB-100-140FR HBC-100 FDB140FR 16102-05 HCB-100-140FS HBC-100 FDB140FS 16102-28 HCB-200-425FR HBC-200 FDB425FR 16102-15 HCB-200-425FS HBC-200 FDB425FS 16104-46 HCB-200-650FR HBC-200 FDB650FR 16104-47 HCB-200-650FS HBC-200 FDB650FS India Warranty Registration T: +44 (0) 1480 272279 T: +9122 61394444 E: uk.sales@antylia.com E: info@coleparmer.in...
