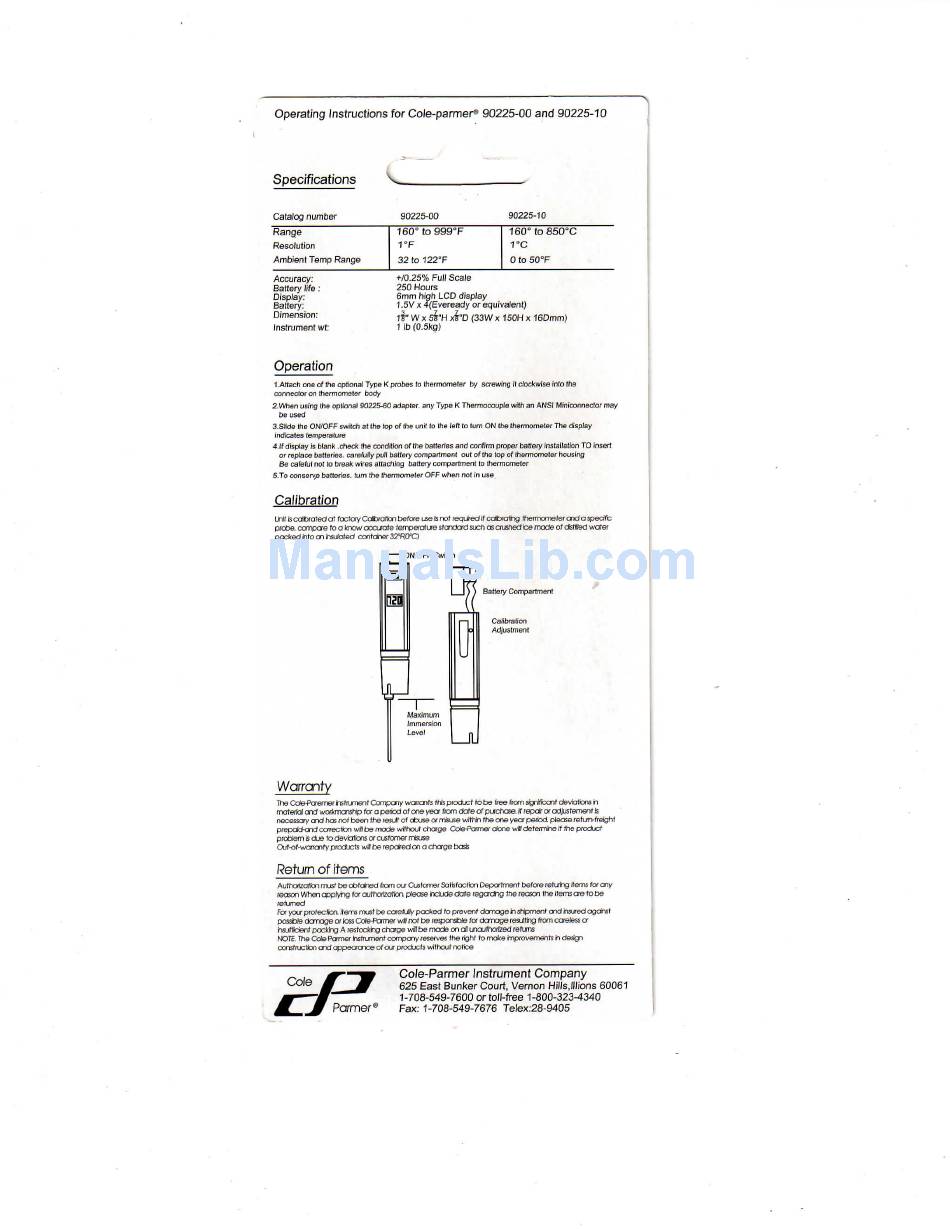

Operating Instructions for Cole-parmer® 90225-00 and 90225-10
Specifications
Catalog number
Range
Resolution
Ambient Temp Range
160° to999°F
1°F
32 to
122T
160" to850
D
C
1°C
0 to SOT
Accuracy: +10.25% Full Scale
Battery life : 250 Hours
Display: 6mm nigh LCD display
Battery: 1 .5V x 4(Eveready or equivalent)
Dimension: -,f.
w x 5
|"
H x
f
D (33W x 150H x 16Dmm
)
Instrument wt: 1 ib (0.5kg)
Operation
1 .Attach one of the optional Type K probes to thermometer by screwing it clockwise into the
connector on thermometer body
2.When using Ihe optional 90225-60 adapter, any Type K Thermocouple with an ANSI Miniconnector may
be used
3.Slide the ON/OFF switch at the top of the unit to the left to turn ON the thermometer The display
indicates temperature
4 If display is blank .check the condition of the batteries ancj confirm proper battery installation TO insert
or replace batteries, carefully pull battery compartment out of the top of thermometer housing
Be cafeful not to break wires attaching battery compartment to thermometer
5.To conserve batteries, turn the thermometer OFF when not in use
Calibration
The Cote-Poremer instrument Company warrants this predict to be (ree from stgm'ficait deviations In
material and wovkmanshp for a period of one yea from cfcite of purchase, if repdror adjustement is
necessary and has not been the result of abuse of misuse withh f he one year period, please return-freight
piepaid-cncf correction will be made without charge Cole-Ponner atone will determine if the product
problem is aue to deviations or customer misuse
Ouf-of-warranfy products will be repared on a charge basis
Return of items
Authorization must be obtained fiom our Customer Satisfaction Deportment before returhg items foe any
reason When applying for outhorization. please include date regardhg the reason the items are to be
returned
For your protection, items most be carefully parked fo prevent damage in shipment and insured ogarist
possible damage or loss Cote-Pc*mer will not be responsible for damage resulting from careless or
insufficient packing A lestockhg charge will be made on all unauthorized returns
NOI"E The Cole Farmer hsfrument company reserves the right to moke improvements h design
construction and appecro»;e of our products without notfce
Cole
Cole-Parmer Instrument Company
625 East Bunker Court, Vernon Hills,lllions 60061
1-708-549-7600 or toll-free 1-800-323-4340
Fax: 1-708-549-7676 Telex:28-9405
