Owner's Manual
DEFENDER / POSITRON
Pg.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEFENDER and is the answer not in the manual?

Questions and answers

Related Manuals for Trikke DEFENDER

Summary of Contents for Trikke DEFENDER

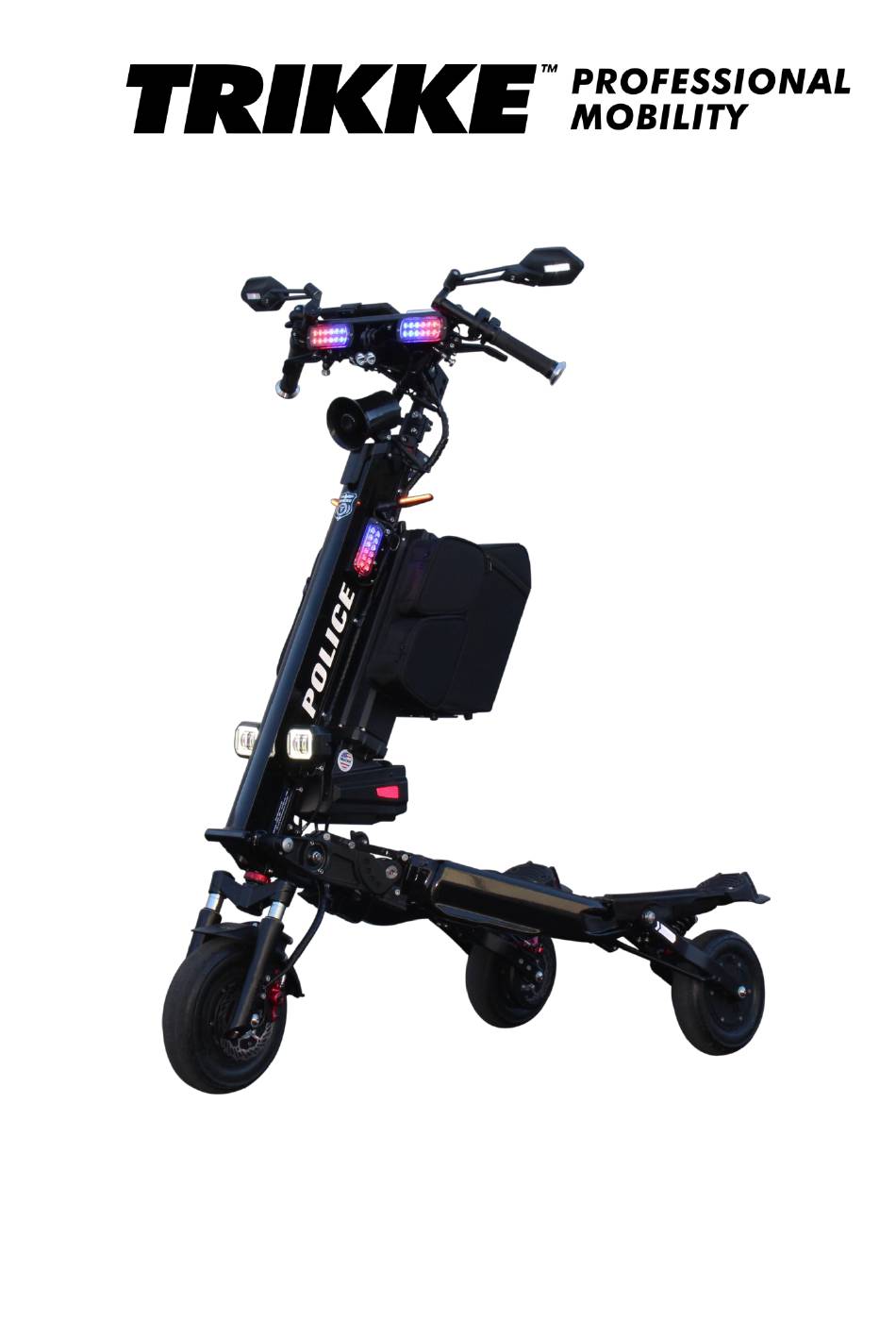

  • Page 1 Owner’s Manual DEFENDER / POSITRON Pg.01...

  • Page 2: Main Parts

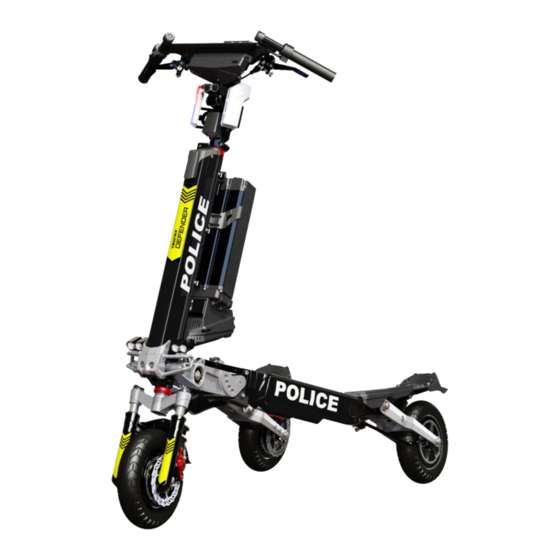

    DEFENDER / POSITRON Owner’s manual TRIKKE Defender is a professional grade light electric vehicle for personal mobility. It was developed to offer quick and efficient transport of an individual in a wide range of terrain: street, sidewalk, walk paths, on and off-road, indoor and outdoors.

  • Page 3: First Assembly

    DEFENDER / POSITRON Owner’s manual FIRST ASSEMBLY (watch assembly video) 1) Remove the unit from the packing box 2) Unfold the frame, lock the folding levers. 3) Attach handlebar, align with front wheel, tight handlebar clamp bolts. 5) Locate and connect the 4 wires of the front lights and horn. Keep the wires neat.
  • Page 4 DEFENDER / POSITRON Owner’s manual Pg.04...
  • Page 5 DEFENDER / POSITRON Owner’s manual Pg.05...
  • Page 6 DEFENDER / POSITRON Owner’s manual Make sure the battery is switched OFF For installation Pg.06...

  • Page 7: Operation

    DEFENDER / POSITRON Owner’s manual OPERATION (watch operation tutorial video) Turn On the battery power: press in the on-off switch. The battery LCD will light up showing the % of remaining charge. Push [M] button on Display to turn ON the drive system.

  • Page 8: Lcd Display Operation

    DEFENDER / POSITRON Owner’s manual LCD Display Operation: Turning Display ON-OFF and sleep. After switching the battery power ON you will have to press M button to turn the display ON and start the system. To turn the system OFF press and hold M button. You may also switch the battery power OFF.
  • Page 9 DEFENDER / POSITRON Owner’s manual PARKING Lock parking brakes (both sides) Lock: squeeze lever Push-in the plunger and release lever Unlock: Squeeze lever Set the kick-stand Turn handlebar to the left and lean the vehicle over the kick-stand. Pg.09...

  • Page 10: Steering Lock

    DEFENDER / POSITRON Owner’s manual Steering lock Useful for transport and maintenance, as well as theft deterrent. Handlebar Height Adjustment Useful for transport and maintenance, as well as theft deterrent. Pg.10...

  • Page 11: Tires Pressure

    DEFENDER / POSITRON Owner’s manual Folding Mechanism – adjusting lock tension Keep a good tension to eliminate any play. Reduce the tension for easy operation. TIRES PRESSURE Check and inflate every 3 weeks 40-50psi 50-65psi FRONT REAR Pg.11...
  • Page 12 DEFENDER / POSITRON Owner’s manual Removing/installing FRONT wheel Removing/installing REAR wheel Pg.12...
  • Page 13 DEFENDER / POSITRON Owner’s manual Headlight Adjust the headlight projection angle by tilting the headlight on the bracket. Dimensions Pg.13...

  • Page 14: Specifications And Features

    DEFENDER / POSITRON Owner’s manual Specifications and Features DEFENDER 48V 2WD DEFENDER 48V 3WD POSI.TRON Police Spec SP33DR 72V 3WD electric drive system DC 48V - 24A DC 48V - 36A DC 60V - 45A DC 72V - 60A acc line...

  • Page 15: Safe Riding

    SAFETY EQUIPMENT: ALWAYS USE SAFETY EQUIPMENT, ESPECIALLY A HELMET. A helmet is essential when riding a Trikke EV or any exposed wheeled vehicle. We also recommend that you wear gloves, elbow and knee pads, especially children and inexperienced riders. Although it is a stable platform, there are always conditions that vary with the environment, which may surprise you, such as cracks in the pavement, sand, gravel, potholes, tree branches, people or other vehicles.
  • Page 16 45 days, and partial (pro rate) replacement after the initial 45 days of use. A suspect battery must be shipped to Trikke Tech for warranty, the Customer being responsible for shipping and costs.
  • Page 17 (excluding the battery) carry a 12 months warranty from the original purchase date. Failure originated by water, misuse, accidents or abuse are excluded. Warranty is limited to the replacement of the part. Defective parts must be shipped to Trikke Tech or presented to an authorized service center for analysis prior to replacement.

  • Page 18: Product Life Cycle

    DEFENDER / POSITRON Owner’s manual Product Life Cycle The Trikke ™ Trikke EV vehicle has a lifecycle. The duration of this cycle varies with the maintenance and care received during their time of use, and the type and amount of use that the vehicle is subjected.
  • Page 19 DEFENDER / POSITRON Owner’s manual Pg.19...
