BedSaver
™
OPERATOR AND
INSTALLATION MANUAL
BXR5000
HENSLEY TRAILERSAVER TS3
HE
H
(MODEL 2211)
Unless otherwise specifi ed, the BedSaver will NOT
work with aftermarket pin boxes. See fi t list.
TO BE VALID, THE WARRANTY CARD MUST BE
COMPLETED IN ITS ENTIRETY AND SENT TO AUTOMATIC
EQUIPMENT MFG. CO., PENDER, NEBRASKA OR
REGISTERED ONLINE AT www.blueox.com.
FAILURE TO DO SO WILL VOID THE WARRANTY.
Page 1 of 6
405-0176 Rev. B
3/16/11
Advertisement
Table of Contents
Related Manuals for Blue Ox BedSaver BXR5000
Summary of Contents for Blue Ox BedSaver BXR5000

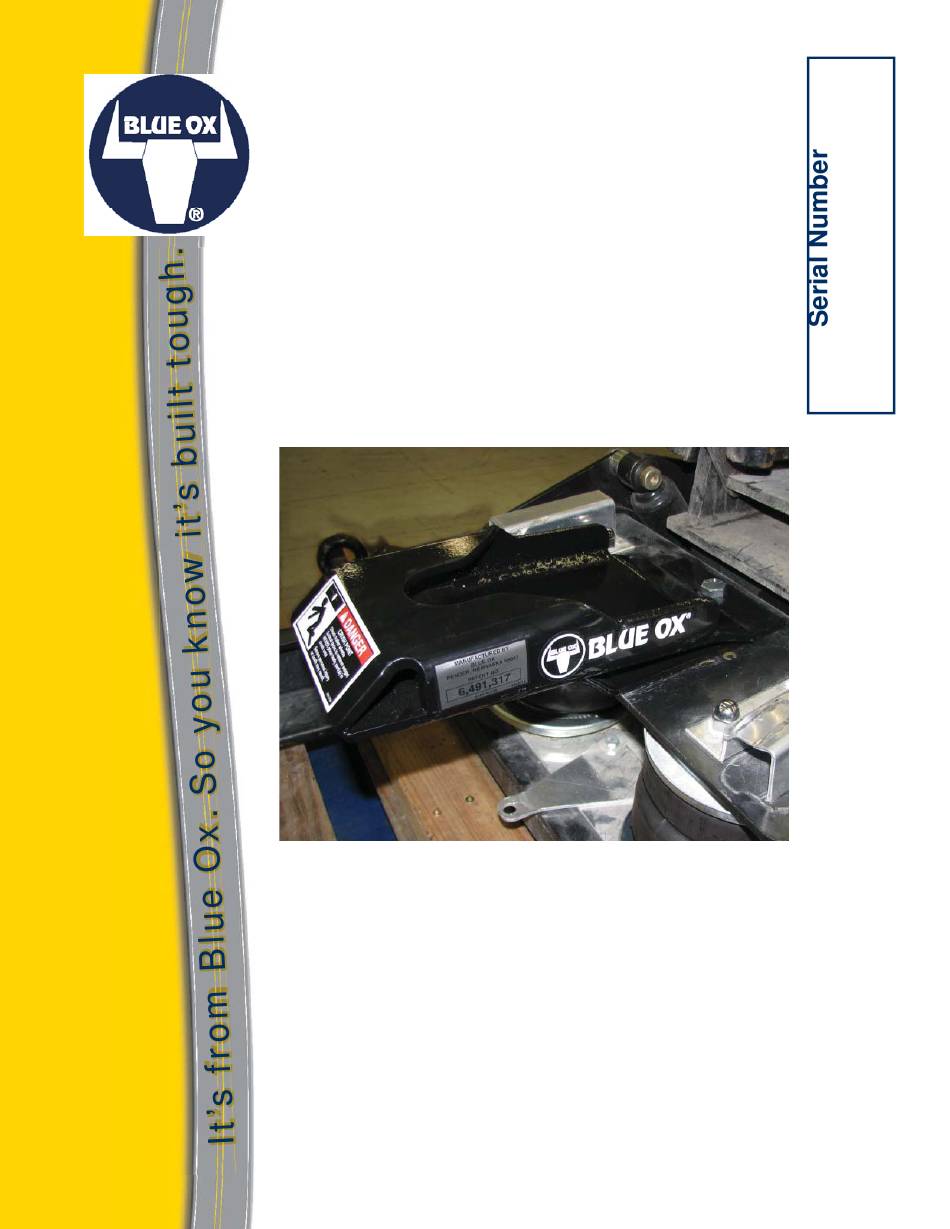

- Page 1 BedSaver ™ OPERATOR AND INSTALLATION MANUAL BXR5000 HENSLEY TRAILERSAVER TS3 (MODEL 2211) Unless otherwise specifi ed, the BedSaver will NOT work with aftermarket pin boxes. See fi t list. TO BE VALID, THE WARRANTY CARD MUST BE COMPLETED IN ITS ENTIRETY AND SENT TO AUTOMATIC EQUIPMENT MFG.
- Page 2 “WARNING” indicates a potential hazard exists that could result in personal injury, or death. Assumptions Before installing the Blue Ox BedSaver please verify the fifth wheel hitch you have is installed properly. Page 2 of 6 405-0176 Rev.
- Page 3 Page 3 of 6 405-0176 Rev. B 3/16/11...
- Page 4 DO NOT INSTALL OR USE THIS EQUIPMENT UNTIL THE FOLLOWING OPERATING AND INSTALLATION INSTRUCTIONS HAVE BEEN READ AND UNDERSTOOD. INSTALLATION STEP 2 STEP 2 STEP 1 STEP 1 1. Measure 3/4” up from the backside. 2. Measure from the edge of the horizontal plate. Measure from side to side to fi...
- Page 5 STEP 4 STEP 4 STEP 3 STEP 3 4. Install the BedSaver plate. Line up with 3. Using a 17/32” drill bit, drill two holes. There the holes and clamp. Attach with 1/2-13 x 1” will be 3 1/2” between the holes and 3/4” up from hex bolts with 1/2-13 lock nuts.
- Page 6 Bl Ox® p ducts at ove 150 R allie Look for our Destination America or Blue Ox® service crews at the next rally or race that you Look for o o ur Dest t ination...
