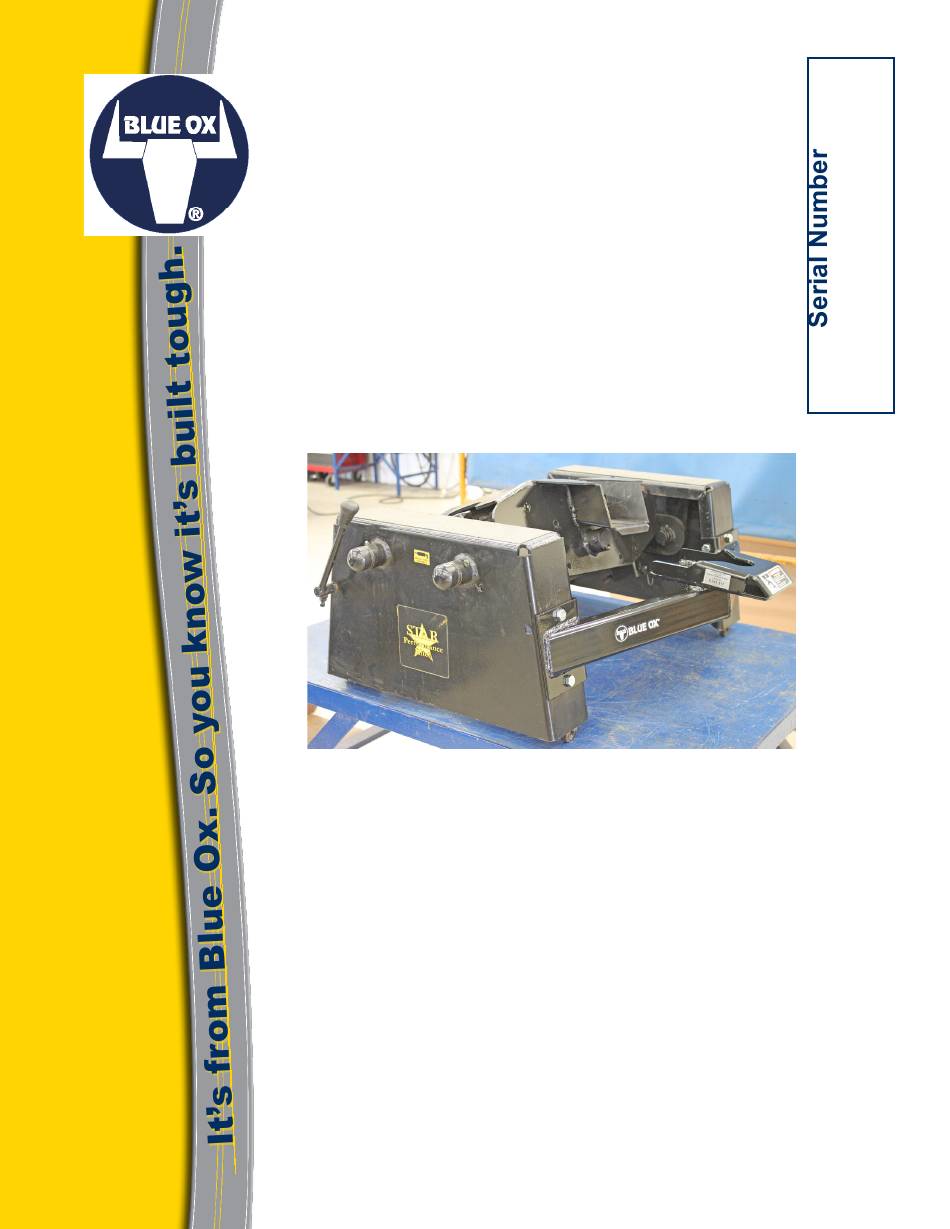

BedSaver
™
OPERATOR AND
INSTALLATION MANUAL
BXR5300
Star Performance
(MODEL 40B)
Unless otherwise specified, the BedSaver will NOT
work with aftermarket pin boxes. See fit list.
TO BE VALID, THE WARRANTY CARD MUST BE
COMPLETED IN ITS ENTIRETY AND SENT TO BLUE OX,
PENDER, NEBRASKA OR REGISTERED ONLINE AT
www.blueox.com.
FAILURE TO DO SO WILL VOID THE WARRANTY.
Page 1 of 6
405-0221
07/26/11
Advertisement
Related Manuals for Blue Ox BedSaver BXR5300
Summary of Contents for Blue Ox BedSaver BXR5300
- Page 1 Unless otherwise specified, the BedSaver will NOT work with aftermarket pin boxes. See fit list. TO BE VALID, THE WARRANTY CARD MUST BE COMPLETED IN ITS ENTIRETY AND SENT TO BLUE OX, PENDER, NEBRASKA OR REGISTERED ONLINE AT www.blueox.com. FAILURE TO DO SO WILL VOID THE WARRANTY.
- Page 2 “WARNING” indicates a potential hazard exists that could result in personal injury, or death. Assumptions: Before installing the Blue Ox BedSaver™ please verify the fifth wheel hitch you have is installed properly. Page 2 of 6...
- Page 3 Do NOT substitute homemade or non-typical parts. This may cause your carrier to fail and result in injury or death. If repair parts or components are needed, you may order them through your nearest Blue Ox ® Dealer or Distributor, or call our 24/7 Customer Care Team at (402) 385-3051.
- Page 4 DO NOT INSTALL OR USE THIS EQUIPMENT UNTIL THE FOLLOWING OPERATING AND INSTALLATION INSTRUCTIONS HAVE BEEN READ AND UNDERSTOOD. INSTALLATION STEP 1 STEP 2 1. Using the top two holes on the inside of the 2. Clamp BedSaver in place with large vice grips. Star Performance Hitch as a template, align Additional support under the BedSaver is also the BedSaver side plates with these existing...
- Page 5 STEP 6 STEP 5 6. Insert 1/2-13 x 1 1/4 hext bolts into each drilled 5. Using the BedSaver as a template, drill holes hole using 1/2-13 locking nut on back side to using a 17/32” drill bit through the hitch on the secure.
- Page 6 Blue Ox campground at no charge along with enjoying a factory tour. Again, thank you for being our customer and for the confidence you have shown in the performance of our products.
