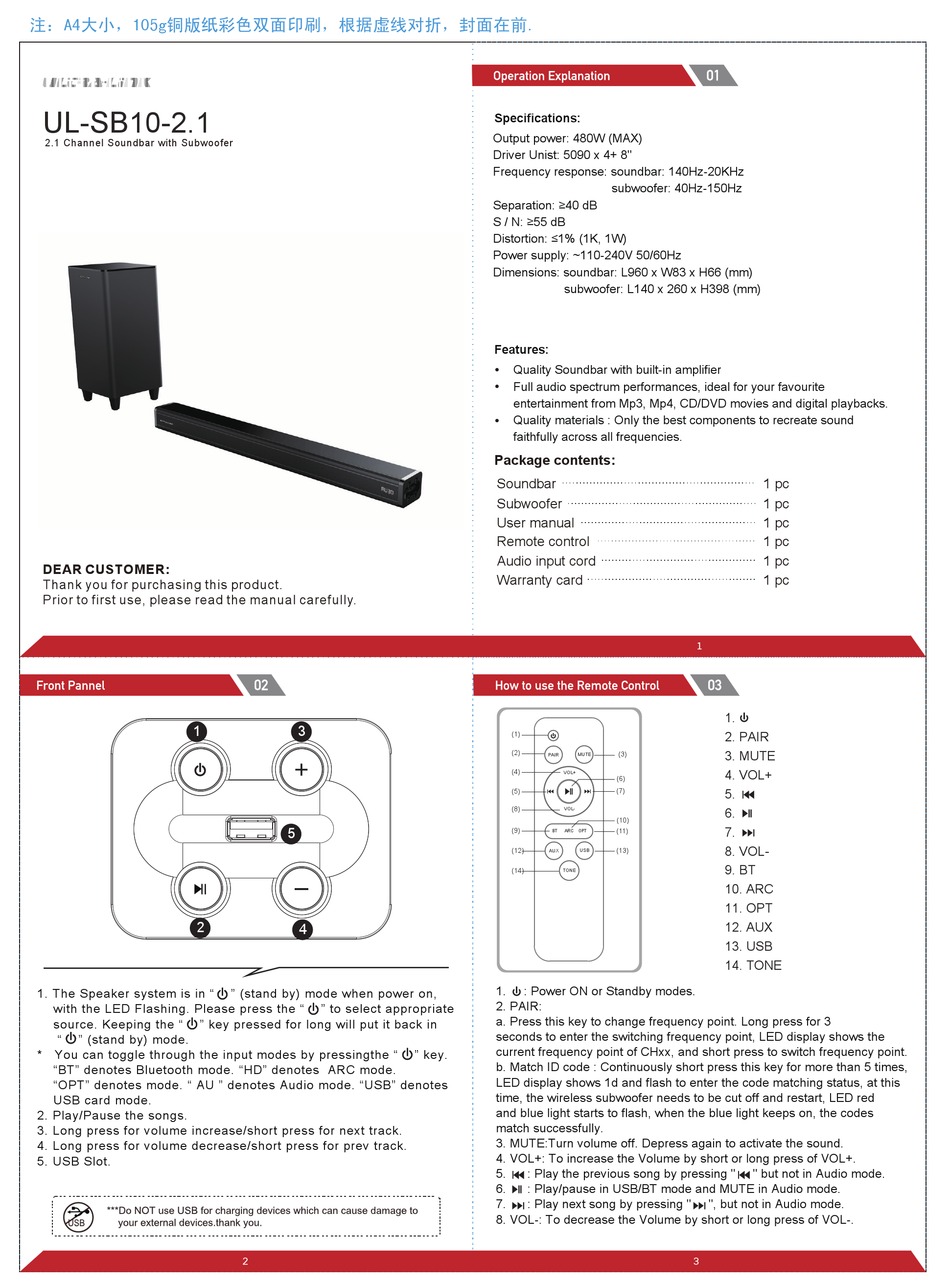

ULTRA-LINK UL-SB10-2.1 Instructions For Use

注：A4大小，105g铜版纸彩色双面印刷，根据虚线对折，封面在前.
UL-SB10-2.1

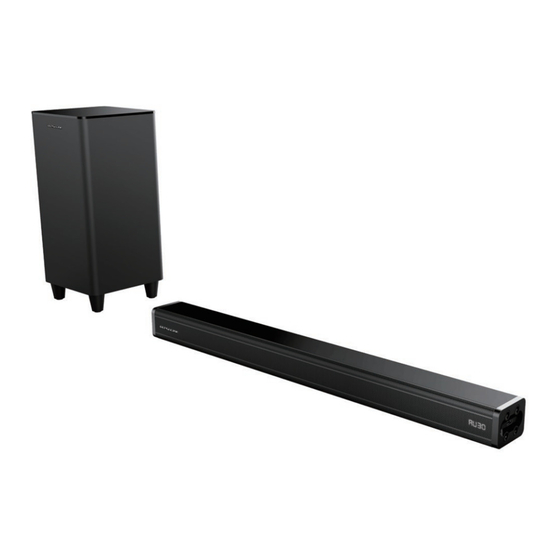

2.1 Channel Soundbar with Subwoofer
DEAR CUSTOMER:
Thank you for purchasing this product.
Prior to first use, please read the manual carefully.
1 1 1 1 1 1
2
1. The Speaker system is in "
with the LED Flashing. Please press the "
source. Keeping the " " key pressed for long will put it back in
" " (stand by) mode.
* You can toggle through the input modes by pressingthe "
"BT" denotes Bluetooth mode. "HD" denotes ARC mode.
"OPT" denotes mode. " AU " denotes Audio mode. "USB" denotes
USB card mode.
2. Play/Pause the songs.
3. Long press for volume increase/short press for next track.
4. Long press for volume decrease/short press for prev track.
5. USB Slot.
3
5
4
" (stand by) mode when power on,
" to select appropriate
Specifications:
Output power: 480W (MAX)
Driver Unist: 5090 x 4+ 8"
Frequency response: soundbar: 140Hz-20KHz
Separation: ≥40 dB
S / N: ≥55 dB
Distortion: ≤1% (1K, 1W)
Power supply: ~110-240V 50/60Hz
Dimensions: soundbar: L960 x W83 x H66 (mm)
subwoofer: L140 x 260 x H398 (mm)
Features:
Quality Soundbar with built-in amplifier

Full audio spectrum performances, ideal for your favourite

entertainment from Mp3, Mp4, CD/DVD movies and digital playbacks.
Quality materials : Only the best components to recreate sound

faithfully across all frequencies.
Package contents:
Soundbar
Subwoofer
User manual
Remote control
Audio input cord
Warranty card
(1)
(2)
PAIR MUTE
(4)
VOL+
(5)
(8)
VOL-
(9)
BT ARC OPT
(12)
AUX USB
(14)
TONE
1. : Power ON or Standby modes.
2. PAIR:
a. Press this key to change frequency point. Long press for 3
seconds to enter the switching frequency point, LED display shows the
current frequency point of CHxx, and short press to switch frequency point.
" key.
b. Match ID code : Continuously short press this key for more than 5 times,
LED display shows 1d and flash to enter the code matching status, at this
time, the wireless subwoofer needs to be cut off and restart, LED red
and blue light starts to flash, when the blue light keeps on, the codes
match successfully.
3. MUTE:Turn volume off. Depress again to activate the sound.
4. VOL+: To increase the Volume by short or long press of VOL+.
5. : Play the previous song by pressing "
6. : Play/pause in USB/BT mode and MUTE in Audio mode.
7. : Play next song by pressing "
8. VOL-: To decrease the Volume by short or long press of VOL-.
subwoofer: 40Hz-150Hz
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1.
2. PAIR
3. MUTE
(3)
4. VOL+
(6)
5.
(7)
6.
(10)
7.
(11)
8. VOL-
(13)
9. BT
10. ARC
11. OPT
12. AUX
13. USB
14. TONE
" but not in Audio mode.
", but not in Audio mode.
