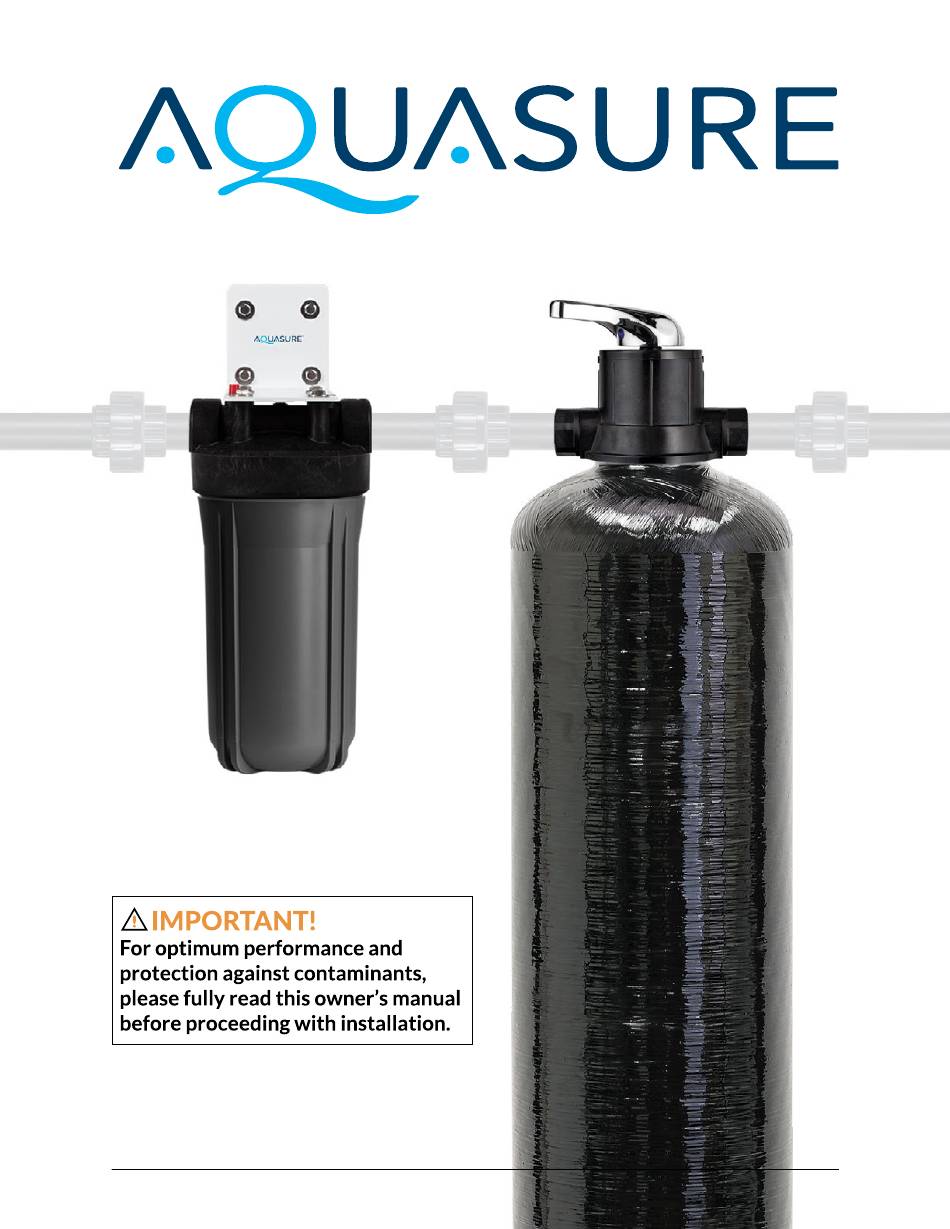

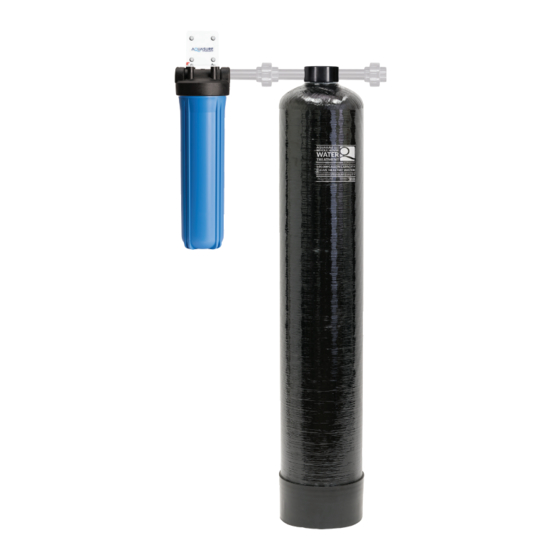

- Page 1 FORTITUDE PRO SERIES WHOLE HOUSE WATER TREATMENT SYSTEM Version 4.0 022822 © Aquasure USA - All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENT WELCOME & CONGRATULATIONS EXTENDED WARRANTY REGISTRATION INSPECTION & PREPARATION I. Be familiar with the system before installation II. System Operation Parameter and Installation checklist III. Installation Safety Guide INSTALLING THE SYSTEM STEP 1. Checking the Direction of Main Water Flow STEP 2. -
Page 4: Welcome & Congratulations
WELCOME & CONGRATULATIONS Thank you for choosing Aquasure. This owner’s manual will guide you through the necessary steps to fully self-install the Fortitude Pro Series Whole House Water Filter System. For MAXIMUM effectiveness please thoroughly read this manual. The information listed in this manual covers the steps for a self-serve installation. In the event that you need support, our Aquasure technicians are available to answer any questions during hours of operation as listed below. -
Page 5: Extended Warranty Registration
DON’T MISS OUT ON FOUR FREE YEARS WITH AQUASURE EXTENDED WARRANTY Register your product within 60 Days from time of purchase to keep your full 5 year warranty. Simply visit aquasureusa.com/support and enter your purchase and serial number. Or fill out the information below and follow the steps. -
Page 6: Inspection & Preparation
Please take the system and all the components out of the box. Inspect the system and all the connection fittings carefully, make sure nothing is damaged during shipping. If any part is cracked or broken, please do not proceed with the installation and contact Aquasure or your distributor for an exchange or diagnosis. -
Page 7: System Operation Parameter And Installation Checklist
Filtration system must not be installed at an area where it is exposed to direct sunlight and must be protected against freezing and extreme heat. • To prevent possible water damage, high flow housing should be replaced every 4 years. AQUASURE FORTITUDE PRO SERIES... -
Page 8: Installation Safety Guide
III. Installation Safety Guide • Handle with care when moving the water filtration system. Do not turn upside down, drop, drag, or set on areas with sharp protrusions. • All of our media tanks have level adjusting tank bases. These tanks are designed to work with a “floating”... -
Page 9: Installing The System
VALVE 2 SHUTOFF SHUTOFF VALVE 1 VALVE 3 Front Diagram A Diagram B BYPASS Right to left water flow SHUTOFF Backwash port position VALVE 2 top view SHUTOFF SHUTOFF VALVE 3 VALVE 1 Front AQUASURE FORTITUDE PRO SERIES... -
Page 10: Step 1. Checking The Direction Of Main Water Flow
IMPORTANT! For maximum effectiveness and to lengthen the system life the pre-filter system should always be placed before the treatment system. STEP 1. Checking the Direction of Water Flow 1. Inspect your water flow and determine if water is flowing from left to right or right to left. 2. -
Page 11: Step 3. Mounting The Pre-Filter
2. Screw on the housing with the filter inside and screw onto the corresponding head by turning it counterclockwise using the supplied housing wrench. Note: Make sure the o-ring is inside the housing and do not over tightening the housing. AQUASURE FORTITUDE PRO SERIES... -
Page 12: Step 7. Mounting The Valve Body Onto The Media Tank
STEP 6. Attaching the Water Supply Pipe to the Treatment System 1. Place the blue gasket in between the valve body and the adapter. Screw the adapter into the valve body. 2. Apply the same procedure to all three openings. Note: Make sure the o-ring is inside the housing and do not over tightening the housing. -
Page 13: Step 8. Connecting The Plumbing Onto The Valve
1. Follow the diagram and arrows on the valve to make sure the path of the water is properly connected. Note: If the water flow is reversed, damage to the system can occur. Out to drain In from main Out to water line house AQUASURE FORTITUDE PRO SERIES... -
Page 14: Step 9. System Startup
Turn on the faucet before turning on the main water line to allow water to flow through. 2. Place the Fortitude Pro Series on Fast Rinse setting. 3. Turn on the water and let it run for 10 minutes to release any trapped air bubbles or carbon media if a carbon filter is installed. -
Page 15: Getting To Know The Valve Head
Run water for 5 minutes. Water will flow out of the valve port that should be sent to the drain. OUT TO DRAIN In from the main Out to the water line house AQUASURE FORTITUDE PRO SERIES... -
Page 16: System Maintenance
SYSTEM MAINTENANCE Note: It is recommend to change your Stage 1 pre-filter at least every 4 - 6 month for areas with bad water quality. Check your filter label for more details. Note: It is recommend to perform a backwash cycle for 15 minutes and fast rinse cycle for 5 minutes at least once a week. -
Page 17: Replace Your Pre-Filter
Never worry again when it’s time to replace your filters. Save time and money when replacing your Aquasure Pleated Sediment Filter with our Subscribe and Save program! Get 25% off your first order and then 10% each order after that. -
Page 18: Limited Product Warranty
Within the warranty covered period, Aquasure will, at its option, repair or replace the Product without charge, or refund the cost of the product, if the Product fails or does not perform as warranted solely due to a manufacturing defect within the warranty period, subject to the limitations and exclusions set forth in this Limited Product Warranty. - Page 19 Aquasure, return of the product and a refund of the purchase price. Buyer assumes all risk whatsoever as to the result of the use of the product purchased, whether used singularly or in combination with any other products or substances.
- Page 20 www.AquasureUSA.com | 800.661.0680 | support@aquasureusa.com...
