Justfit G 152X Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
G 152X
OWNER'S MANUAL
ASSEMBLY INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the G 152X and is the answer not in the manual?

Questions and answers

Related Manuals for Justfit G 152X

Summary of Contents for Justfit G 152X

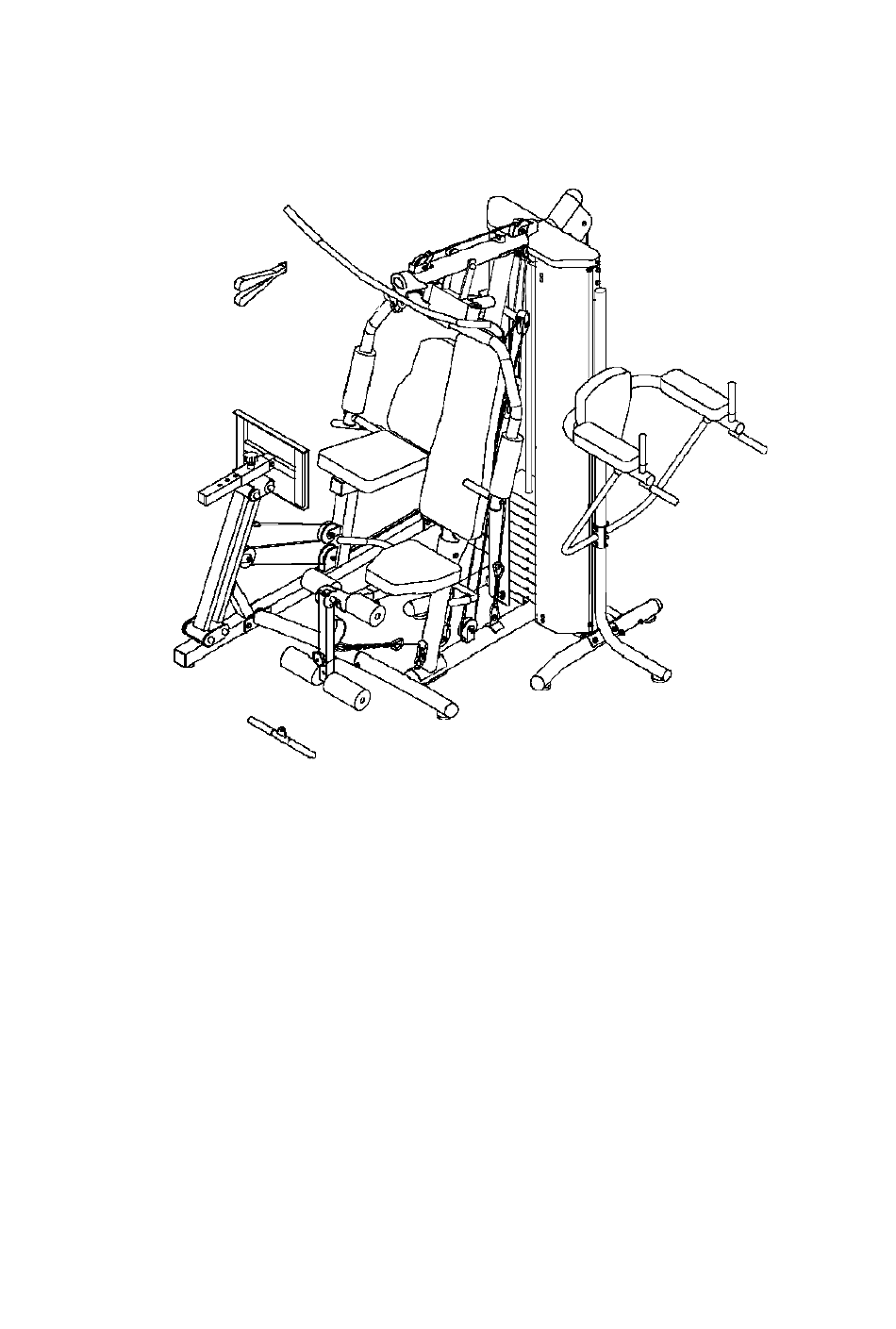

  • Page 1 G 152X OWNER'S MANUAL ASSEMBLY INSTRUCTION...

  • Page 2: Parts List

    PARTS LIST-1 #ITEM DESCRIPTION Q'TY TOP BEAM BASE TUBE RIGHT BASE FRAME LEFT BASE FRAME REAR MAIN FRAME VERTICAL FRAME REAR BASE TUBE REAR CONNECT TUBE RIGHT MAIN FRAME FRONT CROSS TUBE SUPPORT TUBE A SUPPORT TUBE B ADJUST BRACKET ADJUST TUBE FOOT PLATE RIGHT HANDLE...
  • Page 3 PARTS LIST-2 WEIGHT PLATE BLACK BALL PIN PLASTIC BUSHING TAPE END PLUG OIL BUSHING (Ф50XФ12.1MM) OIL BUSHING (Ф50XФ19.1MM) OIL BUSHING (Ф25.4MM) TOP END CAP KNOB BOLT KNOB BOLT KNOB BOLT SMALL PULLEY PULLEY INTERSECT PULLEY BRACKET PULLEY GUARD PULLEY BRACKET PIECE CHAIN HOOK SHORT CHAIN LONG CHAIN...
  • Page 4 PARTS LIST-3 SEAT CUSHION A SEAT CUSHION B BACKREST CUSHION A BACKREST CUSHION B ARM CURL PAD BACKREST CUSHION C BIG FOAM ROLL SMALL FOAM ROLL RIGHT SHROUD LEFT SHROUD M5X10MM SCREW M8X16MM ALLEN BOLT M8X20MM SCREW M8X58MM HEX BOLT M10X25MM SCREW M10X25MM HEX BOLT M10X30MM HEX BOLT...
  • Page 5 Back shroud border Back shroud Screw M4.2X10MM Long knob bolt...
  • Page 6 PARTS DRAW-1...
  • Page 7 PARTS DRAW-2...
  • Page 8 PARTS DRAW-3...
  • Page 9 PARTS DRAW-4...
  • Page 10 HARDWARE-1...
  • Page 11 HARDWARE-2...
  • Page 12 STEP-1 Fit RIGHT BASE FRAME (3) and LEFT BASE FRAME (4) into REAR MAIN FRAME (5) securing using four M10X95MM HEX BOLTS (111), eight M10 WASHERS (119) and four M10 LOCKNUTS (125).
  • Page 13 STEP-2 Fit BASE TUBE (2) to REAR MAIN FRAME (5) secure using two M10X100MM HEX BOLTS (112), four M10 WASHERS (119) and two M10 LOCKNUTS (125). Fit VERTICAL FRAME (6) onto BASE TUBE (2) secure using two M10X100MM HEX BOLTS (112), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125).
  • Page 14 STEP-3 Fit TOP BEAM (1) to REAR MAIN FRAME (5) and VERTICAL FRAME (6) secure using two M10X105MM HEX BOLTS (113), one M10X100MM HEX BOLT (112), one M10X25MM HEX BOLT (102), four M10 WASHERS (119), three M10 ARC WASHERS (120) and three M10 LOCKNUTS (125) as shown.
  • Page 15 STEP-4 Fit FRONT CROSS TUBE (10) to BASE TUBE (2) secure using two M10X25MM HEX BOLTS (102) and two M10 ARC WASHERS (120). Fit VKR CONNECT TUBE (33) to REAR MAIN FRAME (5) and LEFT BASE FRAME (4) secure using one M10X25MM HEX BOLT (102), one M10X95MM HEX BOLT (111), two M10X80MM HEX BOLTS (109), seven M10 ARC WASHERS (120) and three M10 ARC WASHERS (120).
  • Page 16 STEP-5 Fit RIGHT VKR ARM (36) and LEFT VKR ARM (37) to VKR CONNECT TUBE (33) secure using two M10X65MM HEX BOLTS (106), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125). Fit RIGHT VKR SUPPORT (34) and LEFT VKR SUPPORT (35) to VKR CONNECT TUBE (33) secure using two M10X65MM HEX BOLTS (106), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125).
  • Page 17 STEP-6 Fit BUTTERFLY EXTENSION (18) to TOP BEAM (1), insert one M12X130MM HEX BOLT (115) along secure using two M12 WASHERS (121) and one M12 LOCKNUT (126). Fit two DOME CAPS (73). Fit ARC STEEL PIECE (19) to BUTTERFLY EXTENSION (18) with logo outward, and then secure using two M5X10MM SCREWS (97) and two M5 WASHERS (117).
  • Page 18 STEP-7 Fit SEAT SUPPORT TUBE (30) onto VERTICAL FRAME (6) as shown, insert LONG KNOB BOLT (136 )hand tighten. Fit SEAT LOCK PIN (71). Fit SEAT HANDLE (32) to SEAT SUPPORT TUBE (30) secure using one M10X75MM HEX BOLT (108), one M10X70MM HEX BOLT (107), three M10 WASHERS (119) and one M10 LOCKNUT (125).
  • Page 19 STEP-8 Insert FOAM ROD (80) along the holes of SEAT ADJUST FRAME (29) as shown. Fit two LONG FOAM ROLLS (131) onto ends of FOAM ROD (80) as shown. Fit two SMALL FOAM ROLL (94) onto ends rod of LEG ADJUST TUBE (40).
  • Page 20 STEP-9 Fit REAR CONNECT TUBE (8) and REAR BASE TUBE (7) to RIGHT BASE FRAME (3) as shown. Secure by hand using two M10X80MM HEX BOLTS (109), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125). Fit REAR CONNECT TUBE (8) to LEFT BASE FRAME (4) Secure by hand using two M10X80MM HEX BOLTS (109), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125).
  • Page 21 STEP-10 Fit RIGHT MAIN FRAME (9) to REAR BASE TUBE (7) and FRONT CROSS TUBE (10) Secure using four M10X85MM HEX BOLTS (110), eight M10 WASHERS (119) and four M10 LOCKNUTS (125). Fit RIGHT HANDLE (16) and LEFT HANDLE (17) to RIGHT MAIN FRAME (9) Secure using two M10X85MM HEX BOLTS (110), four M10 WASHERS (119) and two M10 LOCKNUTS (125).
  • Page 22 STEP-11 Fit SUPPORT TUBE A (11) and SUPPORT TUBE B (12) to RIGHT MAIN FRAME (9) Secure using two M12X145MM HEX BOLTS (116), four M12 WASHERS (121) and two M12 LOCKNUTS (126). Fit DOME CAPS (73).
  • Page 23 STEP-12 Attach one end of LEG EXTENSION CABLE (66) to REAR CONNECT TUBE (8) with CHAIN HOOK (60) as shown, run the LEG EXTENSION CABLE (66) through pulleys A1, B1, C1, D1 E1, F1 as shown, then attach another end of LEG EXTENSION CABLE (66) to SUPPORT TUBE B (12) with one CHAIN HOOK (60).
  • Page 24 STEP-13 Fit BACKREST CUSHION A (89) to RIGHT MAIN FRAME (9) Secure using two M8X20MM SCREWS (99) and two M8 WASHERS (118). Fit BACKREST CUSHION B (90) to VERTICAL FRAME (6) Secure using four M8X20MM SCREWS (99) and four M8 WASHERS (118).
  • Page 25 STEP-14 Fit ARM CURL PAD (91) to RIGHT VKR ARM (36) and LEFT VKR ARM (37) using four M8X58MM HEX BOLTS (100) and four M8 ARC WASHERS (130). Fit BACKREST CUSHION C (92) to RIGHT VKR ARM (36) and LEFT VKR ARM (37) Secure using four M8X20MM SCREWS (99) and four M8 WASHERS (118).
  • Page 26 STEP-15 Attach two L STEEL PIECES (128) to RIGHT SHROUD (95) secure using four M8X20mm ALLEN BOLTS (98) and four M8 WASHERS (118) as shown. Attach two L STEEL PIECES (128) to LEFT SHROUD (96) secure using four M8X20mm ALLEN BOLTS (98) and four M8 WASHERS (118).
  • Page 27 STEP-16 Insert two GUIDE RODS (38) into the holes of MAIN FRAME (5). Position the GUIDE RODS (38) as shown. Slide one WEIGHT SPACER (75) and one ROUND BUMPER (76) down each GUIDE ROD (38). Slide WEIGHT PLATE (43) down GUIDE RODS (38) as shown, one by one, at last slide TOP WEIGHT PLATE (42) down.
  • Page 28 STEP-17 Rotate UPPER CABLE (63), BUTTERFLY ARM CABLE (65) and LOWER CABLE (64) as figure shown. Attach nut end of UPPER CABLE (63) to WEIGHT SELECTION POST (39) using one T3.0XΦ13XΦ32mm WASHER (124) and one T3.0XΦ26XΦ46mm WASHER (123). Attach one end of BUTTERFLY ARM CABLE (65) to LEFT BUTTERFLY ARM (21) using one M10x35mm HEX BOLT (103), one Μ10 WASHER (119) and one M10 LOCK NUT (125).
  • Page 29 STEP-18 Attach SHROUD COVER (127) to MAIN FRAME (5) using two M5X10mm SCREWS (97) and two M5 WASHERS (117).
  • Page 30 STEP-19 Insert three BACK SHROUD BORDERS (133) into the sleeve of BACK SHROUD (134), Attach BACK SHROUD (134) to MAIN FRAME (5) using six M8X16mm ALLEN BOLTS (98) and six M8 WASHERS (118).
  • Page 31 Explode Figure 1 1 7 1 0 6...
