Item: BA-LMDFX009WH

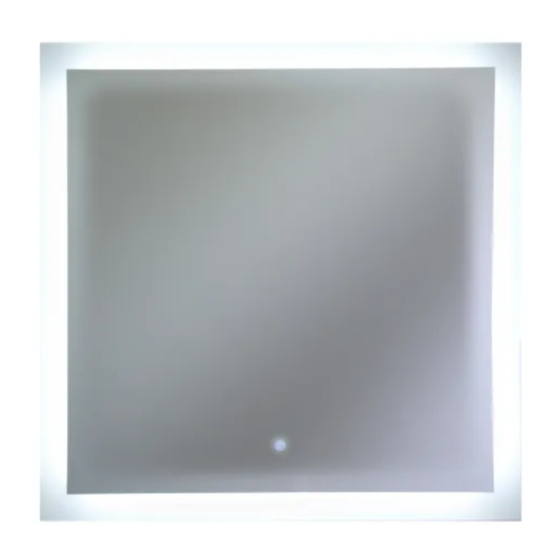

ANZZI LED MIRROR
INSTALL & OPERATION MANUAL
V1.0
DON'T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an official purchase and is eligible for warranty
coverage.
Mail in the completed registry card (Pg. 2) or register online
at
www.swcorp.com/register
.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anzzi Neptune BA-LMDFX009WH
Summary of Contents for Anzzi Neptune BA-LMDFX009WH
- Page 1 Item: BA-LMDFX009WH ANZZI LED MIRROR INSTALL & OPERATION MANUAL V1.0 DON’T WAIT! REGISTER NOW! Register your product within 90 days to ensure your product is recognized as an official purchase and is eligible for warranty coverage. Mail in the completed registry card (Pg. 2) or register online...
- Page 2 I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide. Signature____________________________________________________________Date ______________________________________________ Need help? For technical support call 305-614-4070 or visit us at www.ANZZI.com...
- Page 3 BA-LMDFX009WH39"*32" 32" (813mm) Touch Sensor Switch 6 1/4"(160mm) 39"(991mm) 3/16" (5mm) 5 3/8" (134.7mm) Mirror Hanger 4 3/4" (120mm) 26 1/8" 9 7/8" Defogger (663mm) (250mm) 19 5/8" (500mm) Electrical box 33 1/8"(841mm) 1 3/4"(45mm)
- Page 4 INSTALLATION INSTRUCTIONS Apply to the below style of LED Backlit Mirror Please read carefully and save these instructions. Don’t discard any of the packaging until you are sure that you have all of the parts and the fittings. Make sure power to the junction box is off before commencing installation. IMPORTANT ...
- Page 5 INSTALLATION DIAGRAM T nail WIRING DETAILS INCOMING SUPPLY MIRROR WIRING SWITCHED LIVE BLACK or LABELED - L EARTH(GREEN/YELLOW GREEN - E SLEEVED COPPER) WHITE or LABELED - N NEUTRAL Use a matching wrench for rotary locking Mirror Light Power Input...
