KORR ReeVue 8100 User Manual

Indirect calorimeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for KORR ReeVue 8100

Summary of Contents for KORR ReeVue 8100

  • Page 3 Copyright © 2003, KORR™ Medical Technologies Inc. This document contains information, which is proprietary and the property of KORR™ Medical Technologies Inc., and may not be reproduced, stored in a retrieval system, translated, transcribed, or transmitted, in any form, or by any means, without prior explicit written permission from KORR™...
  • Page 4 KORR™ Medical Technologies, Inc...

  • Page 5: Table Of Contents

    KORR™ Medical Technologies, Inc Contents DEVICE DESCRIPTION ..................5   INTENDED USE / INDICATIONS FOR USE ............5   CONTRAINDICATIONS ..................5   CHAPTER 1: METABOLIC MEASUREMENTS ..........7     CHAPTER 2: PRODUCT INTRODUCTION ............. 9     CHAPTER 3: QUICK INSTRUCTIONS FOR USE .........
  • Page 6 KORR™ Medical Technologies, Inc...

  • Page 7: Device Description

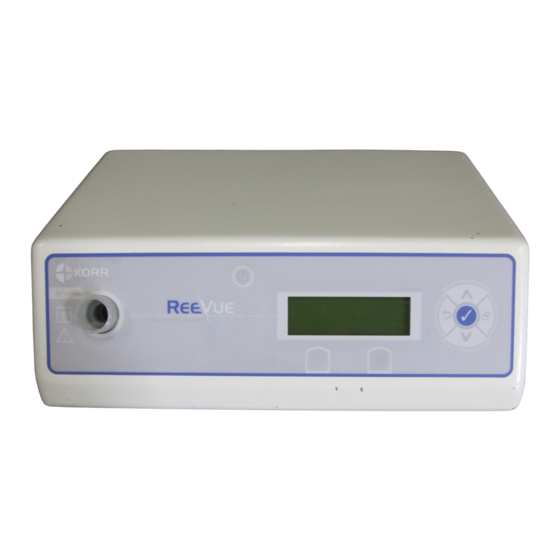

    KORR™ Medical Technologies, Inc Device Description The ReeVue™ model 8100 is an indirect calorimeter. It determines resting energy expenditure (REE) by measuring oxygen uptake. Resting energy expenditure is the amount of calories that a patient will expend (burn) in 24 hours of resting.
  • Page 8 KORR™ Medical Technologies, Inc...

  • Page 9: Chapter 1: Metabolic Measurements

    KORR™ Medical Technologies, Inc Chapter 1: Metabolic Measurements Metabolic Testing Metabolism is the process of converting food into heat or energy. The rate and efficiency with which the body converts food to energy is referred to as the metabolic rate.
  • Page 10 KORR™ Medical Technologies, Inc Calorie Calculation The number of calories expended for a given amount of oxygen consumed is 4.813 calories (0.0048 Kcal) for every milliliter of oxygen consumed. The exact relationship between calories consumed and oxygen consumption is also affected by the amount of carbon dioxide produced by the body as well as oxygen consumed.

  • Page 11: Chapter 2: Product Introduction

    KORR™ Medical Technologies, Inc Chapter 2: Product Introduction 2.1 Front Panel Description The front panel is comprised of displays, keypad and connections. Figure 2.1 illustrates the ReeVue™ keypad. The various keys and their functions are described on the following pages.
  • Page 12 KORR™ Medical Technologies, Inc Figure 2.2 Key Grouping. The key group includes the UP ARROW, DOWN ARROW, ENTER (check), MENU, and the BACK keys. 2.1.2 Soft Keys Underneath the display are two keys that do not have any labels. These are called “Soft Keys.”...
  • Page 13 KORR™ Medical Technologies, Inc 2.1.3 Key Functions ON / STANDBY This key is used to turn the device on and off. In standby (off) mode there is still electrical power going to the device, but the display will be dark.
  • Page 14 KORR™ Medical Technologies, Inc 2.1.4 Display has a text (LCD) display ReeVue™ that is used to show data, system status information and display results. During testing, the display is used to show the measured parameters and to provide user assistance messages.
  • Page 15 KORR™ Medical Technologies, Inc It is recommended that a KORR™ bacterial filter be placed between the Air-Intake and the hose to prevent contamination of system. ReeVue™ 2.3 Back Panel Connections Power ← This connection labeled 12VDC is for the power adapter input.
  • Page 16 KORR™ Medical Technologies, Inc...

  • Page 17: Chapter 3: Quick Instructions For Use

    KORR™ Medical Technologies, Inc Chapter 3: Quick Instructions for Use 1. Turn on the unit. CAUTION: Ensure the Single Patient Use “MetaBreather™” hose is not attached during calibration. Remember to dispose of the hose/mouthpiece after use. 2. Wait for device to be ready.
  • Page 18 KORR™ Medical Technologies, Inc...

  • Page 19: Chapter 4: Equipment Setup

    KORR™ Medical Technologies, Inc Chapter 4: Equipment Setup 4.1 Environment In order for the ReeVue™ to operate properly, it should be placed in a properly ventilated area. The device performs within specifications when used at temperatures between 59°F (15°C) and 86°F (30°C).
  • Page 20 KORR™ Medical Technologies, Inc...

  • Page 21: Chapter 5: Conducting A Metabolic Rate Test

    KORR™ Medical Technologies, Inc Chapter 5: Conducting a Metabolic Rate Test 5.1 Warm Up Upon turning on the ReeVue™, it will take a moment to warm up. The warm up screen is shown following the splash screen. It will automatically end and begin calibration when the device has warmed up.
  • Page 22 KORR™ Medical Technologies, Inc “zero”, flow. During this time it is imperative that no gas flows through the ReeVue™. If gas flow is detected, the system will indicate that error number 112 (Device cannot be Zeroed) has occurred. If this error is detected, calibration time will be prolonged.
  • Page 23 KORR™ Medical Technologies, Inc 5.4 Position the nose clip. When the patient is comfortable, place the nose clip on the patient’s nostrils. The nose clip is used to block airflow through the nostrils and ensures that the ReeVue™ analyzes ALL of the exhaled air. A nose clip is not necessary if a full face mask is used for testing.
  • Page 24 KORR™ Medical Technologies, Inc 5.6 Begin Testing The ReeVue™ is designed to measure the patient’s resting energy expenditure. This means that the patient should be encouraged to rest to the greatest degree possible during the test. A reclining position and quiet atmosphere is recommended.
  • Page 25 KORR™ Medical Technologies, Inc Screen 2 • VO The volume of oxygen consumed displayed in milliliters per minute. • REE: The current resting energy expenditure (REE) calculated at that point of testing, displayed in calories per hour. VO2: 339 ml/min...
  • Page 26 KORR™ Medical Technologies, Inc The third and fourth lines remain the same throughout all testing screens. The third line will read “data stable” only when the readings have stabilized. This line is blank if the readings have not yet stabilized.

  • Page 27: Chapter 6: Post Test Options

    KORR™ Medical Technologies, Inc Chapter 6: Post Test Options 6.1 Enter Patient Data After the hose has been removed, the user is asked if they want to enter the subject’s data, height, weight, age, and gender. This data is used to calculate the predicted or normal metabolic rate expected for that patient.
  • Page 28 KORR™ Medical Technologies, Inc 6.1.3 Enter Gender Use the [arrow] keys to enter the subject’s gender, press the [enter] key to accept the gender as it is currently displayed. Use Arrow Keys To Enter Sex > Male Female Figure 6.4 Enter Gender Screen 6.1.4 Enter Weight...
  • Page 29 KORR™ Medical Technologies, Inc 6.2 Test Results Screen The test results screen allows you to scroll through the various values calculated by the REEVUE™. Use the Up and Down [arrows] to scroll through the values. Use the [Chg data] soft key to re-enter the user data. Use the [Print] soft key to print a copy of the report.
  • Page 30 KORR™ Medical Technologies, Inc REE: 2347 kcal/day [Chg Data] [Print] Figure 6.6 Results Screen 1 REE: 2347 kcal/day Normal: 2226 kcal/day 5.4 % Above Normal [Chg Data] [Print] Figure 6.7 Results Screen 2 REE: 9.82 kJ/day Normal: 9.32 kJ/day 5.4 % Above Normal...
  • Page 31 KORR™ Medical Technologies, Inc FFM Estimate: 90.0 kg Test Time: 10:04 [Chg Data] [Print] Figure 6.12 Results Screen 7 6.3 Print Screen The printing screen is shown while the REEVUE™ is printing the report. It will automatically return to the test results screen when the report has printed.
  • Page 32 KORR™ Medical Technologies, Inc 6.4 Print Last Test The print last test screen is shown if the last test was never successfully printed. Press the [Print] soft key to get to the results screen and print the previous test, press the [Skip] soft key to continue on with the warm up sequence.
  • Page 33 KORR™ Medical Technologies, Inc 6.7 Menu Screens The user menu is displayed when the [menu] key is pressed. Only four options are displayed at a time. The [arrow] keys scroll through the menu. The [enter] key selects the current menu option.
  • Page 34 KORR™ Medical Technologies, Inc 6.7.1 Report Style The report menu allows the user to select the style of report to use when a report is printed. The options in this menu depend on the reports that are loaded in the device, and may vary. The [arrow] keys scroll through the menu.
  • Page 35 KORR™ Medical Technologies, Inc 6.7.2 Previous Test Screen The select previous test screen allows the user to view and print test data that is stored in the device. The [arrow] keys change the test ID number. The [enter] key selects the displayed value.
  • Page 36 KORR™ Medical Technologies, Inc 6.7.5 Set Minimum Length Allows user to set the minimum length of test. The minimum time may be set between 10 and 30 minutes. Note: If minimum time is set longer than maximum time, the maximum time will automatically be adjusted to be equal to minimum time.
  • Page 37 KORR™ Medical Technologies, Inc Misc. Reading P: 87.3 kPa 655 mmHg Temp: 19.8 C % RH: 23.8 % Figure 6.21 Verify Misc. Cal Screen...
  • Page 38 KORR™ Medical Technologies, Inc...

  • Page 39: Chapter 7: Troubleshooting

    KORR™ Medical Technologies, Inc Chapter 7: Troubleshooting 7.1 Error Messages The ReeVue™ may detect certain errors and display them on the LCD of the ReeVue™. It will give the error number and a brief description of the problem. Additional information is provided below.
  • Page 40 KORR™ Medical Technologies, Inc 7.1.2 Error 101: System Timed out. No Breath Detected ERROR 101 System Timed Out. No Breath Detected. [Restart] Figure 7.2 Error 101 Screen This error will occur when the ReeVue™ does not detect a breath within two minutes of calibration.
  • Page 41 Extreme temperature or humidity may cause this error. If the message persists while temperature and humidity are stable and within the normal working range, KORR™ Medical Technologies must recalibrate the system. This condition occurs when the ReeVue™ cannot complete its automatic calibration sequence.
  • Page 42 KORR™ Medical Technologies, Inc 7.1.6 Error 105: Negative flow detected, check hose connection ERROR 105 Negative flow detected, check hose connections Figure 7.6 Error 105 Screen This may occur if there is a backwards flow of air. Air should not exit the ReeVue™...
  • Page 43 If you experience this error condition in absence of an external oxygen source, contact KORR™ for further assistance. 7.1.9 Error 108: Serial Buffer Overflowed ERROR 108 Serial Buffer Overflowed. Figure 7.9 Error 108 Screen If this error appears, contact KORR™ Medical Customer Support...
  • Page 44 7.1.10 Error 109: Data Buffer Overflowed ERROR 109 Data Buffer Overflowed. Figure 7.8 Error 109 Screen If this error appears, contact KORR™ Medical Customer Support 7.1.12 Error 111: User Defaults Have Not Been Set ERROR 111 User Defaults Have Not Been Set.
  • Page 45 KORR™ Medical Technologies, Inc 7.1.14 Error 114: Replace O Sensor Soon ERROR 114 Replace O2 Sensor Soon. Figure 7.11 Error 114 Screen This error indicates that the oxygen sensor is almost depleted and should be replaced soon. The Oxygen (O ) sensor in the ReeVue™...
  • Page 46 This error indicates that an error has occurred with the oxygen sensor. Turn off the ReeVue™, and allow it to sit for a few minutes before turning it back on. If the error continues to appear, contact KORR™ Medical Customer Support.
  • Page 47 SERVICE and REPAIRS should only be carried out by the manufacturer or service personnel specifically trained and approved by KORR™ Medical Technologies, Inc. If you feel that your unit needs to be returned to KORR™ for repair or replacement, please identify the serial number found on the back of ReeVue™...

  • Page 48: Chapter 8: Specifications

    KORR™ Medical Technologies, Inc Chapter 8: Specifications ReeVue™ Parameter Specification External 12-volt power supply from device, Power Requirements less than 1.5 Amps. Barometric Pressure Sensor Accuracy ± 2 mmHg Resolution 1 mmHg Min/Max Range 525 to 795 mmHg Temperature Sensor Accuracy ±...
  • Page 49 KORR™ Medical Technologies, Inc ReeVue™ Parameter Specification Tidal Volume 200 to 3000 ml Oxygen Consumption Calculation Range < 70 to > 720 ml /min O2 Resolution 1 ml/min O2 Metabolic Rate Calculation Weir Equation with assumed Calculation Method RQ = 0.83 Range 500 to >...

  • Page 50: Warnings And Precautions

    The ReeVue™ should only be used on a stable surface. ReeVue™ should not be used during transport. Warning: The ReeVue™ should only be used with the KORR™ factory authorized MetaBreather™. Use with any other patient interface device will compromise accuracy and patient safety and may void factory warranty.

  • Page 51: Adverse Events

    KORR™ Medical Technologies, Inc Adverse Events None known.

  • Page 52: Maintaining Device Effectiveness

    KORR™ Medical Technologies, Inc Maintaining Device Effectiveness • Always use a KORR™ factory authorized MetaBreather™ to ensure Metabolic rate measurements and proper functioning of your KORR™ equipment. • Do not connect the mouthpiece or filter before calibration is complete. Wait until the display indicates that the system is waiting for the first breath.

  • Page 53: Warranty

    TWO YEARS from the date of shipment. This warranty covers the repair or replacement, at KORR’s sole discretion, of the product or defective parts. KORR™ reserves the right, at its sole discretion, to perform warranty service at its factory, at an authorized repair station, or at the customer’s facility.

  • Page 54: Service Policy

    KORR™ warranty. Service requests can be submitted via the web at www.KORR.com/support/service or by telephone at (801) 483-2080. Details for shipping service items to the KORR™ factory are available for download on the KORR™ website. KORR™ also provides factory direct technical support to its customers through a technical support group located in Salt Lake City, Utah.
