KALE HELLO LIGHT HL-ML7B60 User Manual

Bee eye zoom 7*60w moving head
Hide thumbs

Advertisement

Quick Links

Download this manual
760
Bee eye Zoom 7*60w moving head
User manual
Please read the instructions carefully before use

Advertisement

loading

Related Manuals for KALE HELLO LIGHT HL-ML7B60

Summary of Contents for KALE HELLO LIGHT HL-ML7B60

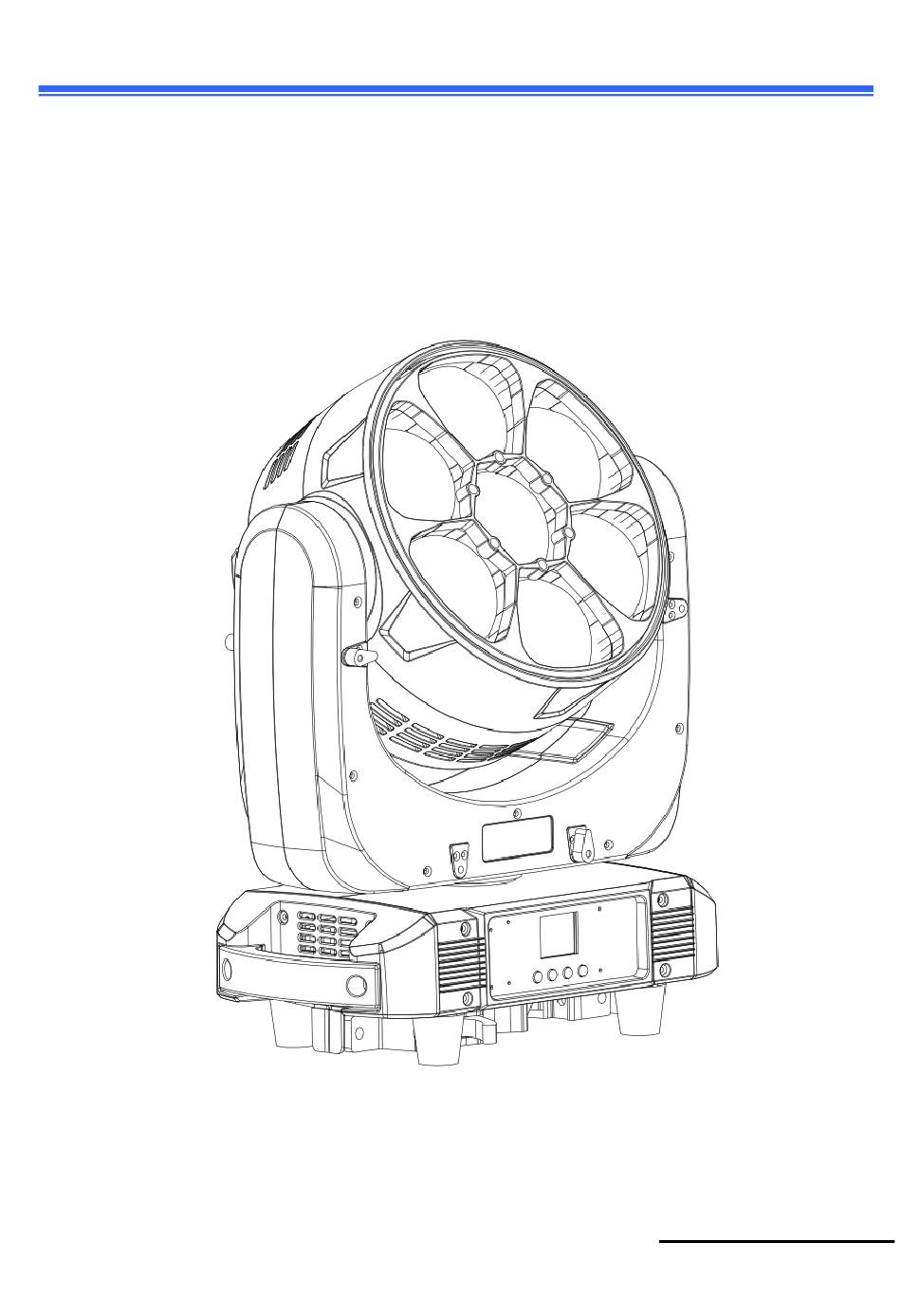

  • Page 1 Bee eye Zoom 7*60w moving head User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..................1 - 2 2. Technical Specifications ..................5 3. How To Control The Unit ..................6 4. DMX Channel List..................16 5. Shape.........................18 6. Trouble shooting ....................19 7. Fixture Cleaning ....................20 statement product well capability intact...
  • Page 3 Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

  • Page 4: Technical Specifications

     DO NOT open the unit within five minutes after switching off.  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself.
  • Page 5 Control Modes: DMX512/mater-Slave/Auto Run/Music Pan/Tilt Pan : 540°/ 360° ,Tiit : 270° Pan/Tilt Resolution: 8/16 bit Construction Display:180° reversible LCD Display Data In/Out socket: 3-pin & 5-pin XLR sockets Power Socket: Powercon in/out Protection Rating: IP20 Features LED single control Outstanding color macro effect Fast,quite operation and flicker free High-efficiency optical system ,wonderful flower effect plus zoom...

  • Page 6: How To Control The Unit

    4.How To Control The Unit Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions...
  • Page 7 Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN" keys to amended Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not save and Exit Pan Degree 1) 540 °...
  • Page 8 2.No 1.Yes Forward or Tilt 2.No Reverse reversed Display 1.Yes setting 2.No 1.CH Value Each channel show CH value Information 2.Temp ____℃ Show the temperature of led board 3.Soft V1.1 Show the version number 21 channels 23 channels 35 channels 42 channels Channel 49 channels...

  • Page 9: Dmx Channel List

    Blue ： 0--255 Alone White ： 0--255 Strobe ： 0-255 5.DMX Channel List Model 1 - CH21 Channel Display Function Value CH-1 Red dimming 0 --- 255 CH-2 Red adjustment Red adjustment 0 --- 255 CH-3 Green Green dimming 0 --- 255 CH-4 Green adjustment Green adjustment...
  • Page 10 R DOWM,G100%,B0% 36--55 R0%,G100%,B UP 56--75 R0%,G DOWM,B100% 76--95 CH-9 Color temperature R UP,G0%,B100% 96--115 R100%,G0%,B DOWM 116--135 R100%,G UP,B UP 136--155 R dowm,G dowm, B 100% 156--175 R100%G100%B100%W100% 176--195 2800K 196--200 3200K 201--205 3500K 206--210 4000K 211--215 4500K 216--220 5000K 221--225...
  • Page 11 CH-9 Color temperature 5500K 226--230 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 CH-10 Macro color 0--9 Macro color 1 10--23 Macro color 2 24--37 CH-10 Macro color ..Macro color 16 234--247 Macro color 17 248--255 Turn on the light 0---3 CH-11...
  • Page 12 Random strobe 204--255 CH-12 Dimmer dark to bright linear dimming 0 --- 255 CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255 CH-14 Pan control 0 --- 255 CH-15 Pan adjustment Pan adjustment control 0 --- 255 CH-16 Tilt Tilt control 0 --- 255 CH-17 Tilt adjustment...
  • Page 13 CH-21 Lens rotation Clockwise infinite rotation 156-205 Counterclockwise rotation 206-255 Model 2 - CH23 Channel Display Function Value CH-1 0-540° 0 --- 255 CH-2 Pan adjustment 16bit adjustment 0 --- 255 CH-3 Tilt 0-205° 0 --- 255 CH-4 Tilt adjustment 16bit adjustment 0 --- 255 CH-5...
  • Page 14 Synchro strobe speed 4---203 CH-9 Strobe From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-10 R dimming dark to bright linear dimming 0-255 CH-11 G dimming dark to bright linear dimming 0-255 CH-12 B dimming dark to bright linear dimming 0-255 CH-13 W dimming...
  • Page 15 R dowm,G dowm, B 100% 156---175 R100%,G100%,B100%,W100% 176---195 2800K 196---200 3200K 201---205 3500K 206---210 4000K 211---215 4500K 216---220 5000K 221---225 Color 5500K 226--230 temperature CH-14 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 0--9...
  • Page 16 CH-15 Macro color Macro color 1 10--23 Macro color 2 24--37 ..CH-15 Macro color Macro color 16 234--247 Macro color 17 248--255 0--9 Monochrome pattern 1 10--19 Monochrome pattern 2 20--29 ....CH-16 Static pattern Monochrome pattern 12 120--129 Mixed color pattern 1 130--145...
  • Page 17 CH-17 0--9 Monochrome dynamic pattern 1 10--17 Monochrome dynamic pattern 2 18--25 ... Monochrome pattern 21 170--177 CH-17 Dynamic Mixed color dynamic pattern 1 178--185 pattern Mixed color dynamic pattern 2 186--193 ....Mixed color dynamic pattern 9 242--249 Mixed color dynamic pattern 10 250--255...
  • Page 18 CH-21 Back color B dark to bright linear dimming 0-255 CH-22 Back color W dark to bright linear dimming 0-255 0-250 CH-23 Reset Reset within 5s 251--255 Model 3 - CH35 Channel Display Function Value CH-1 Red dimming 0 --- 255 CH-2 Red adjustment Red adjustment...
  • Page 19 R100%,G UP,B0% 16---35 R DOWM,G100%,B0% 36---55 R0%,G100%,B UP 56---75 R0%,G DOWM,B100% 76---95 CH-9 Color temperature R UP,G0%,B100% 96---115 R100%,G0%,B DOWM 116--135 R100%,G UP,B UP 136---155 R dowm,G dowm, B 100% 156---175 R100%,G100%,B100%,W100 176---195 2800K 196---200 3200K 201---205 3500K 206---210 4000K 211---215 4500K 216---220...
  • Page 20 5000K 221---225 CH-9 Color temperature 5500K 226--230 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 0--9 CH-10 Macro color Macro color 1 10--23 Macro color 2 24--37 ..Macro color 16 234--247 CH-10 Macro color Macro color 17 248--255 Turn on the light 0---3...
  • Page 21 slow to fast (1HZ-25HZ) 4---203 Random strobe 204--255 CH-12 Dimmer dark to bright linear dimming 0 --- 255 CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255 CH-14 Pan control 0 --- 255 CH-15 Pan adjustment Pan adjustment control 0 --- 255 CH-16 Tilt Tilt control...
  • Page 22 0~60° 0--155 CH-21 Lens rotation Clockwise infinite rotation 156--205 Counterclockwise rotation 206--255 0--9 Monochrome dynamic pattern 10--17 Monochrome dynamic pattern 18--25 CH-22 Pattern rotation ... Monochrome pattern 21 170--177 Mixed color dynamic pattern 1 178--185 Mixed color dynamic pattern 2 186--193 ..
  • Page 23 Pattern effect 0--9 speed CH-23 Forward, from fast to slow（wit 10--132 h 22CH） Reverse, from slow to fast(with 133--255 22CH) CH-24 Pattern effect fade Pattern effect fade 0-255 CH-25 Background R Pattern effect R 0-255 CH-26 Background G Pattern effect G 0-255 CH-27 Background B...
  • Page 24 CH-34 Background strobe Background strobe 0-255 CH-35 Background Background selection 0-255 pattern selection Model 4 - CH42 Channel Display Function Value CH-1 Red dimming 0 --- 255 CH-2 Red adjustment Red adjustment 0 --- 255 CH-3 Green Green dimming 0 --- 255 CH-4 Green adjustment Green adjustment...
  • Page 25 R DOWM,G100%,B0% 36---55 R0%,G100%,B UP 56---75 CH-9 Color temperature R0%,G DOWM,B100% 76---95 R UP,G0%,B100% 96---115 R100%,G0%,B DOWM 116--135 R100%,G UP,B UP 136---155 R dowm,G dowm, B 100% 156---175 R100%,G100%B100%W100% 176---195 2800K 196---200 3200K 201---205 3500K 206---210 4000K 211---215 CH-9 Color temperature 4500K 216---220 5000K...
  • Page 26 5500K 226--230 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 CH-10 Macro color 0--9 Macro color 1 10--23 CH-10 Macro color Macro color 2 24--37 ..Macro color 16 234--247 Macro color 17 248--255 Turn on the light 0---3 Synchro strobe speed CH-11...
  • Page 27 Random strobe 204--255 CH-12 Dimmer dark to bright linear dimming 0 --- 255 CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255 CH-14 Pan control 0 --- 255 CH-15 Pan adjustment Pan adjustment control 0 --- 255 CH-16 Tilt Tilt control 0 --- 255 CH-17 Tilt adjustment...
  • Page 28 CH-21 Lens rotation Clockwise infinite rotation 156--205 Counterclockwise rotation 206--255 CH-22 R1 LED dimming R1 LED dimming 0-255 CH-23 G1 LED dimming G1 LED dimming 0-255 CH-24 B1 LED dimming B1 LED dimming 0-255 CH-25 R2 LED dimming R2 LED dimming 0-255 CH-26 G2 LED dimming...
  • Page 29 CH-2 Red adjustment Red adjustment 0 --- 255 CH-3 Green Green dimming 0 --- 255 CH-4 Green adjustment Green adjustment 0 --- 255 CH-5 Blue Blue dimming 0 --- 255 CH-6 Blue adjustment Blue dimming 0 --- 255 CH-7 White White dimming 0 --- 255 CH-8...
  • Page 30 R100%,G UP,B UP 136---155 R dowm,G dowm, B 100% 156---175 R100%,G100%,B100%,W100 176---195 2800K 196---200 3200K 201---205 3500K 206---210 4000K 211---215 Color temperature 4500K 216---220 CH-9 5000K 221---225 5500K 226--230 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255...
  • Page 31 0--9 Macro color 1 10--23 CH-10 Macro color Macro color 2 24--37 ..Macro color 16 234--247 Macro color 17 248--255 Turn on the light 0---3 CH-11 Strobe Synchro strobe speed slow to fast (1HZ-25HZ) 4---203 Random strobe 204--255 CH-12 Dimmer dark to bright linear dimming...
  • Page 32 CH-17 Tilt adjustment Tilt adjustment control 0 --- 255 Mode -1 0 --- 49 Mode -2 50 --- 99 CH-18 Dimming Mode Mode -3 100---149 Mode -4 150---255 0-250 CH-19 Reset Reset within 5s 251---255 CH-20 Zoom Zoom 0-255 0~60° 0--155 CH-21 Lens rotation...
  • Page 33 CH-26 .... 0-255 CH-46 R7 LED dimming R7 LED dimming 0-255 CH-47 G7 LED dimming G7 LED dimming 0-255 CH-48 B7 LED dimming B7 LED dimming 0-255 CH-49 W7 LED dimming W7 LED dimming 0-255 Model 6 - CH51 Channel Display Function...
  • Page 34 CH-7 Lens rotation fast to slow Counterclockwise rotation from 206-255 slow to fast CH-8 Dimmer dark to bright linear dimming 0 --- 255 Turn on the light 0---3 CH-9 Strobe Synchro strobe speed 4---203 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-10 R dimming...
  • Page 35 R0%,G100%,B UP 56---75 R0%,G DOWM,B100% 76---95 CH-14 Color R UP,G0%,B100% 96---115 temperature R100%,G0%,B DOWM 116---135 R100%,G UP,B UP 136---155 R dowm,G dowm, B 100% 156---175 R100%,G100%,B100%,W100% 176---195 2800K 196---200 3200K 201---205 3500K 206---210 4000K 211---215 4500K 216---220 5000K 221---225 5500K 226--230...
  • Page 36 CH-14 Color 6000K 231--235 temperature 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 0--9 CH-15 Macro color Macro color 1 10--23 Macro color 2 24--37 ..Macro color 16 234--247 CH-15 Macro color Macro color 17 248--255 0--9 Monochrome pattern 1 10--19 Monochrome pattern 2 20--29...
  • Page 37 Monochrome pattern 12 120--129 Mixed color pattern 1 130--145 Mixed color pattern 2 146--161 ..Mixed color pattern 7 226--241 Mixed color pattern 8 242--255 0--9 CH-17 Dynamic Monochrome dynamic pattern 1 10--17 pattern Monochrome dynamic pattern 2 18--25 ..
  • Page 38 Mixed color dynamic pattern 10 250--255 Forward, from fast to slow（wit h 0--127 17CH） CH-18 Dynamic pattern speed Reverse, from slow to fast(with 128--255 17CH) CH-19 Back color R dark to bright linear dimming 0-255 CH-20 Back color G dark to bright linear dimming 0-255 CH-21 Back color B...
  • Page 39 CH-48 R7 LED dimmer R7 LED dimming 0-255 CH-49 G7LED dimmer G7 LED dimming 0-255 CH-50 B7LED B7 LED dimming 0-255 CH-51 W7LED dimmer W7 LED dimming 0-255 Model 7 - CH56 Channel Display Function Value CH-1 Red dimming 0 --- 255 CH-2 Red adjustment Red adjustment...
  • Page 40 R100%,G UP,B0% 16---35 R DOWM,G100%,B0% 36---55 R0%,G100%,B UP 56---75 CH-9 Color temperature R0%,G DOWM,B100% 76---95 R UP,G0%,B100% 96---115 R100%,G0%,B DOWM 116--135 R100%,G UP,B UP 136---155 R dowm,G dowm, B 100% 156---175 R100%,G100%,B100%,W100 176---195 2800K 196---200 3200K 201---205 3500K 206---210 CH-9 Color temperature 4000K 211---215...
  • Page 41 5000K 221---225 5500K 226--230 6000K 231--235 6500K 236--240 7000K 241--245 7500K 246--250 8000K 251--255 0--9 Macro color 1 10--23 CH-10 Macro color Macro color 2 24--37 ..Macro color 16 234--247 Macro color 17 248--255 Turn on the light 0---3 CH-11 Strobe...
  • Page 42 slow to fast (1HZ-25HZ) 4---203 Random strobe 204--255 CH-12 Dimmer dark to bright linear dimming 0 --- 255 CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255 CH-14 Pan control 0 --- 255 CH-15 Pan adjustment Pan adjustment control 0 --- 255 CH-16 Tilt Tilt control...
  • Page 43 0~60° 0--155 CH-21 Lens rotation Clockwise infinite rotation 156--205 Counterclockwise rotation 206--255 0--9 Monochrome pattern 1 10--17 Monochrome pattern 2 18--25 ....CH-22 Static pattern Monochrome pattern 21 170--177 Mixed color pattern 1 178--185 Mixed color pattern 2 186--193 ..
  • Page 44 Dynamic pattern Reverse, from slow to fast(with 133--255 speed 22CH) CH-23 CH-24 Pattern effect fade Pattern effect fade 0-255 CH-25 color R dark to bright linear dimming 0-255 CH-26 color G dark to bright linear dimming 0-255 CH-27 color B dark to bright linear dimming 0-255 CH-28...
  • Page 45 CH-37 G1 LED dimming G1 LED dimming 0-255 CH-38 B1 LED dimming B1 LED dimming 0-255 CH-39 .... 0-255 CH-54 R7 LED dimming R7 LED dimming 0-255 CH-55 G7 LED dimming G7 LED dimming 0-255 CH-56 B7 LED dimming B7 LED dimming 0-255...

  • Page 46: Shape

    6. Shape...

  • Page 47: Trouble Shooting

    7. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 48: Fixture Cleaning

    8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. ...
