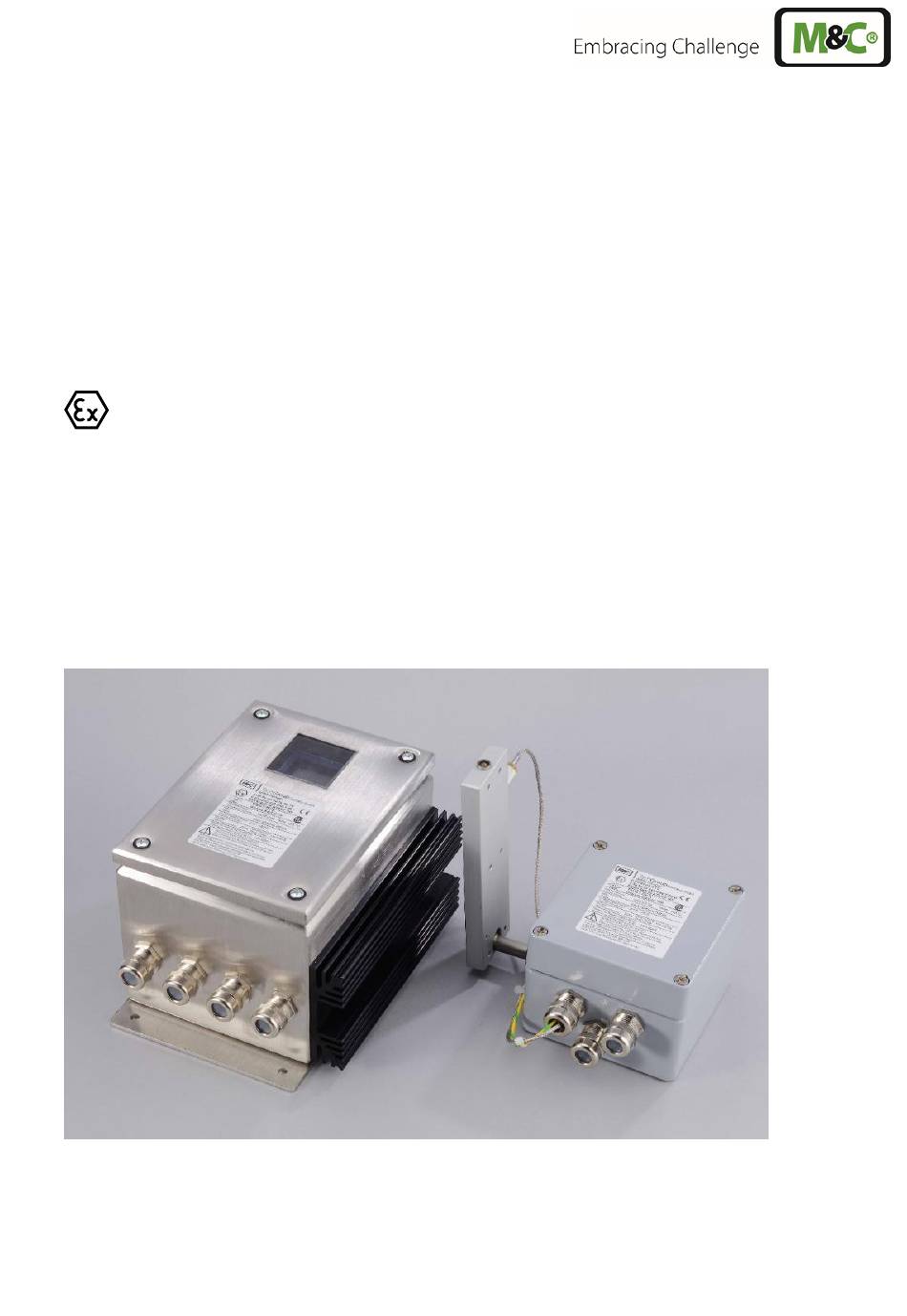

- Page 1 Regulated Ex-Heater HEX5.0-1.08 with internal regulator, HEX5.0-2.08 with external regulator II 3 G Instruction Manual Version 1.01.00...
- Page 2 This Operating Manual does not claim completeness and may be subject to technical modifications. © 06/2016 M&C TechGroup Germany GmbH. Reproduction of this document or its content is not allowed without permission from M&C. Version: 1.01.00 HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com...
-
Page 3: Table Of Contents
Electrical connection HEX 5.0-1.08 ................. 14 Figure 4 Electrical connection HEX 5.0-2.08 ................. 15 Figure 5 Example: Heater HEX5.0-1.08 mounted on gas sample probe SP3200 ......16 Figure 6 Circuit diagram HEX 5.0-1.08 ..................18 Figure 7 Circuit diagram HEX 5.0-2.08 ..................19 Figure 8 Option 2 x PT100: Connection diagrams HEX 5.0-1.08 and HEX 5.0-2.08 ..... -
Page 4: General Information
The requirements of the directive 2014/30/EU “Electromagnetic compatibility“ are met. Low Voltage Directive The requirement of the directive 2014/35/EU “Low Voltage Directive“ are met. Declaration of conformity The EU Declaration of conformity can be downloaded from the M&C homepage or directly requested from M&C. HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 5: Safety Instructions
Make sure that you install the device in a weather-protected location. The device should not be exposed to either direct sun, rain or moisture. Installation, maintenance, inspections and any repairs of the devices must be carried out only by qualified skilled personnel in compliance with the current regulations. www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 6: Used Terms And Signal Indications
These are persons with necessary qualification who are familiar with installation, use and maintenance of the product. These are important information about the product or parts of the instruction manual referring to operating in hazardous areas. HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 7: Information For Use In Hazardous Areas
Certificate. This also refers to any repair work and service using parts which are not M&C approved and not specified for usage in explosive atmospheres. Please don’t hesistate to contact M&C or your M&C distributer if you have any questions about parts, repair work and services of the device. www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 8: Warranty
If you return a device to M&C, please be sure that it is properly packaged and shipped with protective packaging. The repaired or replaced device will be shipped free of delivery charges to the point of use. HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 9: Introduction
Indication on regulator K1 when the operating temperature “AN” (ON) is reached. Indicator K3 shows that the heater is on. Figure 1 Version HEX 5.0-1.08 and Version HEX 5.0-2.08 www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 10: Serial Numbers
7.2 POWER SUPPLY The probe can be operated on alternating current in the range of 240 V 50 / 60 Hz max. 800 W, alternatively 120 V,50 / 60 Hz max. 830 W. HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 11: Technical Data
Temperature status alarm 10 °C (18 °F) lower than T Switch capacity 250 V 3 A AC, 0.25 A DC. 1 contact NO, potential-free. Over temperature limiter 5 °C (9 °F) higher than T manual Reset www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... - Page 12 75 (167 °F) 70 (158 °F) 60 (140 °F) Only for Version HEX5.0-2 20 S 9619 75 (167 °F) 70 (158 °F) 60 (140 °F) The programming and locking of the temperature regulator is made at works. HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com...
-
Page 13: Mounting
+70°C (158 °F). The heated part of the device must be tightly mounted. A minimum distance of 100 mm (3.94”) to other components has to be kept in WARNING! order to avoid an accumulation of heat. www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 14: Electrical Connection
Connect the housing of the temperature controller, and if applicable the electrical connection box of the HEX5.0-2.08, to earth (equipotential bonding). Electrical connections electric heater HEX 5.0-1.08 Figure 3 Electrical connection HEX 5.0-1.08 HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 15: Starting-Up
• Then close lid of the housing and switch on the power supply. High surface temperatures! Touching may result in burns. When the ambient temperature is higher than 40°C (104 °F), the WARNING! temperature of the protection and isolating cover will be more than 60°C (140 °F). www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 16: Closing Down
Figure 5 Example: Heater HEX5.0-1.08 mounted on gas sample probe SP3200 The heater heats-up 1.5 °C per minute (2.7 °F per minute) by default via a programmed temperature ramp. The total heating-up time is approx. 2 h for example for the gas sample probe SP3200 with HEX5.0-1/2.08 regulated to 180 °C (356 °F). -
Page 17: Cleaning
NOTE! 15 APPENDIX Circuit diagrams Connection and circuit diagrams option 2 x PT100 For additional manuals and data sheets, please have a look at our home page www.mc-techgroup.com www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 18: Figure 6 Circuit Diagram Hex 5.0-1.08
Power Keylock Values in brackets are for controller 703 Power N Power PE Figure 6 Circuit diagram HEX 5.0-1.08 HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 19: Figure 7 Circuit Diagram Hex 5.0-2.08
Power L Keylock Values in brackets are for controller Power N Power PE Figure 7 Circuit diagram HEX 5.0-2.08 www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 20: Figure 8 Option 2 X Pt100: Connection Diagrams Hex 5.0-1.08 And Hex 5.0-2.08
Regler / Controller HEX5.0-1.08 2x PT100 Regler / Controller HEX5.0-2.08 2x PT100 Figure 8 Option 2 x PT100: Connection diagrams HEX 5.0-1.08 and HEX 5.0-2.08 HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com... -
Page 21: Figure 9 Option 2 X Pt100: Circuit Diagram Hex 5.0-1.08
Power L Keylock Power N Power PE Figure 9 Option 2 x PT100: Circuit diagram HEX 5.0-1.08 www.mc-techgroup.com HEX5.0-1.08, HEX5.0-2.08 | 1.01.00... -
Page 22: Figure 10 Option 2 X Pt100: Circuit Diagram Hex 5.0-2.08
Power L Keylock Power N Power PE Figure 10 Option 2 x PT100: Circuit diagram HEX 5.0-2.08 HEX5.0-1.08, HEX5.0-2.08 | 1.01.00 www.mc-techgroup.com...
