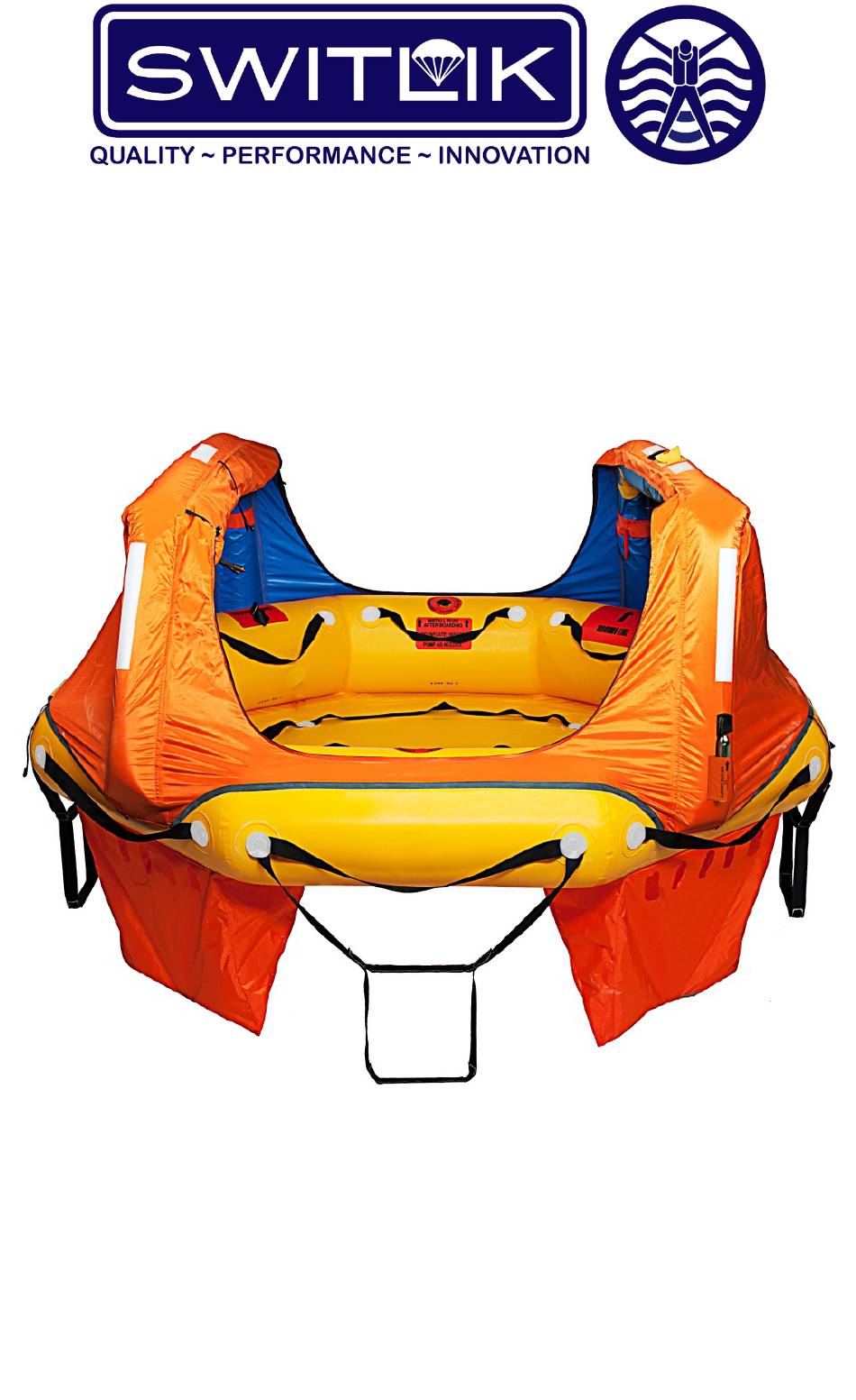

- Page 1 Coastal Passage Raft OWNER'S Manual...
- Page 3 This publication is issued as the owner's manual for the Switlik Coastal Passage Raft, model CPR-1140-( ). All rights reserved. Copyright © 2013 by Switlik Parachute Company, Inc. This manual may not be reproduced in whole or in part, by any means, without permission.
-
Page 4: Table Of Contents
Table of Contents Chapter Page WARNINGS Description Launching Righting the Raft Boarding Heaving Line Knife Combination Valves Arches/Canopy Survival Equipment Buoyancy Tube Redundancy System Servicing Storage Survival Tips... -
Page 5: Warnings
WARNINGS WARNING! Read these instructions fully before use. Failure to comply with instructions may result in injury or death. WARNING! This device must be used in accordance with the instructions in this manual for maximum performance. Failure to comply with instructions could result in a lower level of performance or in failure of the device, which could result in death. -
Page 6: Description
Description The Switlik Coastal Passage Raft is a lightweight (40 lbs), single- tube life raft providing a minimum of 1,140 lbs of buoyancy. SOLAS-grade Reflective Tape Bright Orange Exterior Light Canopy Independently- Inflated Canopy Arches Inflation System Lifeline Reinforced Weighted... - Page 7 Description continued Features: Convertible Canopy System. Manually-operated, gas-inflated canopy arches are not directly connected to the main buoyancy tube, improving the integrity of the raft. Configurable canopy allows for 360° visibility. Canopy can be configured from furled to fully enclosed, or ...
-
Page 8: Launching
Launching Rafts packed in the Valise Remove raft from storage location. Open yellow ripcord cover on front of valise. Grab the ripcord handle and pull out enough of the mooring line to tie off to a secure point on the boat. - Page 9 Launching continued Rafts packed in the Hard Container If you need to manually deploy the raft, or your raft does not have a hydrostatic release, first make sure the painter line (coming out of the raft container) is secured to the cradle or a strong point on the boat.
-
Page 10: Righting The Raft
Righting the Raft Your life raft was designed to inflate right-side up. However, wind and waves may cause it to inflate upside down. To right the raft, climb a boarding ladder near the inflation cylinder on the bottom of the raft. Use the righting strap to help pull yourself up. -
Page 11: Boarding
Boarding The CPR raft has 4 boarding stations, however, with the canopy furled, the raft can be boarded at any point around the raft. The preferred boarding method is to enter the raft directly from the distressed vessel, staying as dry as possible in the process. -
Page 12: Heaving Line
Heaving Line A heaving line with a throwing ring is attached to the buoyancy tube. Use this line to help pull in survivors having difficulty getting to the raft. When not in use, coil the line up and place it, along with the throwing ring, in its holder. -
Page 13: Knife
Knife The knife is located on the buoyancy tube, near the point of attachment of the mooring line. It’s designed to smoothly cut line, yet prevent accidental puncturing of the raft. Use it, if necessary, to cut the mooring line free of the distressed vessel. If the vessel is not on fire or sinking, it’s best to remain attached. -
Page 14: Combination Valves
Combination Valves The buoyancy tube has two combination valves. These valves function both as a topping off valve, for use with the manual inflation pump (see Survival Equipment section), and a pressure relief valve. After pulling the mooring line to inflate the raft, excess air pressure may bleed off through these valves. -
Page 15: Arches/Canopy
Arches/Canopy continued Two, independent arches are used on the raft canopy. Each arch is furled and secured with furling ties to the buoyancy tube. The canopy should remain furled until everyone has boarded the raft. When the canopy is needed, release the furling ties and pull the beaded inflation handle located on each arch. - Page 16 Arches/Canopy continued The canopy top is furled to one of the arches. Release the furling ties and close the zipper to completely enclose the raft.
- Page 17 Arches/Canopy continued There are 2 zipper pulls on the canopy top. They can be used to make side openings in the canopy, if desired. Furling ties are provided to hold these doors open. These openings allow for 360° visibility and good ventilation to help minimize sea sickness.
- Page 18 Arches/Canopy continued Each arch also contains an oral inflation tube. These tubes can be used to add pressure to the arches when needed. Remove the black cap and blow air into the arch, then place the cap back on when finished. To deflate the arch, pull the black cap off the oral tube, invert the cap and push it back into the end of the oral tube.
-
Page 19: Survival Equipment
Survival Equipment The following survival equipment is included with your raft: A water-proof, LED flashlight, powered by hand-cranking or an integrated solar panel. When charging by hand-cranking, wind the handle about 3 revolutions per second. If charging with the solar panel, leave the flashlight in direct sunlight for 8 hours for a full charge. - Page 20 Survival Equipment continued A repair clamp kit. This kit includes 2 repair clamps. These clamps can be used to repair tears in the buoyancy tube. 1. Loop cord around your wrist to prevent loss. 2. Dip plug in water to make insertion easier. 3.
- Page 21 Survival Equipment continued A manual inflation (hand) pump, with hose. Use this pump to add air to the buoyancy tube, as needed. When air is needed, screw the hose onto the pump outlet. Remove the rubber plug from the combination (topping off) valve on the buoyancy tube.
-
Page 22: Buoyancy Tube Redundancy System
Buoyancy Tube Redundancy System This Switlik raft provides two separate chambers within the buoyancy tube by using two internal sleeves, which are each closed at one end. The open ends are attached to the inside of the buoyancy tube at the same position where bulk heads would normally be found. - Page 23 Buoyancy Tube Redundancy System Acting much like an inner tube in an automobile tire, the inner sleeves retain all the air originally in the undamaged half of the life raft. Although buoyancy was reduced by 50%, it was still sufficient to support the rated capacity of the raft, with no loss of floor area.
-
Page 24: Servicing
The frequency of these intervals starts from the date of manufacture. The CPR Life Raft must be serviced every 5 years by an authorized service center. Check the factory website, www.switlik.com, for an authorized service center near you. -
Page 25: Storage
Storage Valise-packed rafts should be stored out of the weather, but close enough at hand to be retrieved quickly in an emergency. Rafts in hard containers should be mounted in a cradle, which is secured to the deck. The container should be oriented so that the drain holes are facing down, allowing unobstructed drainage. -
Page 26: Survival Tips
Survival Tips Seven Steps to Survival From AMSEA: The Alaska Marine Safety Education Association Recognition - admit that your life is in danger. Act! Inventory - decide what can help and hurt. Do First Aid. Shelter – preserve body heat with insulating materials. ... - Page 28 1325 E. State Street Trenton, NJ 08609 (609) 587-3300 (609) 586-6647 FAX www.switlik.com Manual P/N S-4358-1, revision A, dated 8/13.
