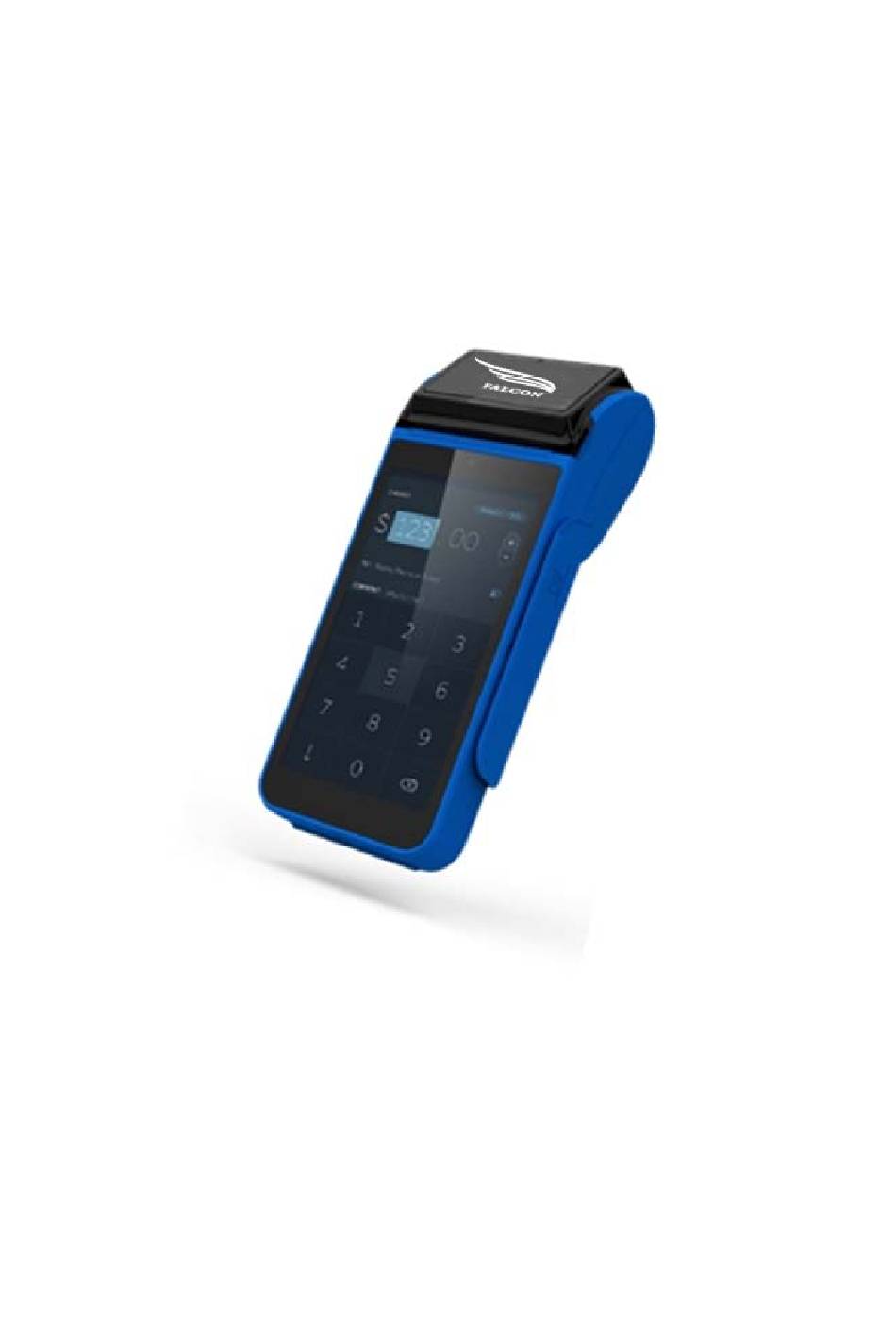

- Page 1 Smart POS User Manual HMPOS4 ...
- Page 2 Disclaimer We assumes no liability for loss or damages arising directly or indirectly from any misuse of terminal and accessories or non‐compliance with the instructions set out in this User Manual. All rights reserved. Specifications and external appearance are subject to change without prior notice. Configuration Configuration Main function Notes Network communication GPRS/CDMA/WCDMA/CDMA Standard 2000/EVDO/FDD‐LTE/TD‐LTE Wifi Standard Bluetooth Standard Optional features 1D barcode scanner Option 2D barcode scanner Option Front camera Option Notes Please kindly be noted that the device will probably cause radio interference in non‐laboratory environment, end users need to take corresponding activities when necessary. Product instructions 1.LED ...
- Page 3 1.Pen for E‐signature（option） 2.1D/2D barcode scanner（option） 3.Rear side camera 4.Loudspeaker 5.Battery position 1.MIC 2.Contact IC card reader 3.Installer for hand belt 1. Magnetic card swipe 1.Power on/off 2.Customized function key 3.Micro USB 4.Mini USB Product parameter Power ...
- Page 4 Volt：DC 5V Currency：2A Dimension：197*83*59（mm） Net weight：490g Working condition Working temperature: 0℃～45℃ Working humidity：10%～93%（40℃） Instructions for installment 1.Working condition: temperature 0℃～45℃,humidity 10%～93%,or the device will not be stable while working 2. Connect the power adapter to device and connect the other side to a specific safe 220V/50HZ socket. 3. With fool‐proofing design battery, insert battery as picture shown below, 1 stands for red wire on the left,2 stands for black wire on the right. 1. Red wire 2. Black wire Warning Do not put battery into fire;ensure no battery short circuit of Positive and negative pole; maximum charging voltage is 4.2V； Notice There is explosion danger if use wrong type battery dispose worn out battery as instructions ...
- Page 5 Power ON/OFF operation Power ON operation: after installed battery/connect power adapter, press power bottom for 2s, screen on, device goes to working mode; press power bottom for 2s, choose shutdown item, screen off, device goes to power off mode; Magnetic card, IC card, SIM card, PSAM card, Micro SD card and contactless IC card 1. While swipe cards, swipe with constant speed, close to slot bottom, magnetic stripe should face the screen as the silk‐screen directions, align at card slot, be sure magnetic cards is intact and in good condition. 2.
- Page 6 1 . Paper room Trouble Shooting and advised solution: Fault phenomenon Elimination methods No display on screen 1. check if battery installed right 2. check if battery is enough for work Cannot read card 1. check if card slot is clean 2. check if card has enough magnet info. Read magnetic card data incorrectly 1. swipe card with constant speed, close to slot bottom 2. magnetic stripe should face the screen, align at card slot 3. try to swipe card in another direction IC card data read incorrectly 1. Ensure the chip side is upward, card be inserted to the top ...
- Page 7 Notes: We do not provide free warranty or take any responsibility if you operate against mentioned instructions. Warnings： 1. Hereby, Sinocan International Technologies Co., Ltd declares that this Smart POS ，HMPOS4 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Use the Smart POS in the environment with the temperature between 0℃ and 45℃ 2. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ...
- Page 8 Adapter Model: PDN‐12A‐050200 Input: AC 100‐240V 50/60Hz 0.5A Output: DC 5.0V, 2A Manufacturer: Sinocan International Technologies Co., Ltd Address: 8th,Floor, Block A, Research Base of Huazhong Universtity of Science & Technology, Yuehai Street, Nanshan District, Shenzhen City, China Tel: +86‐755‐ 86970012 Fax:+86‐755‐ 86612352 E‐mail: sinocan_rd30@sinocan.com.cn ...
