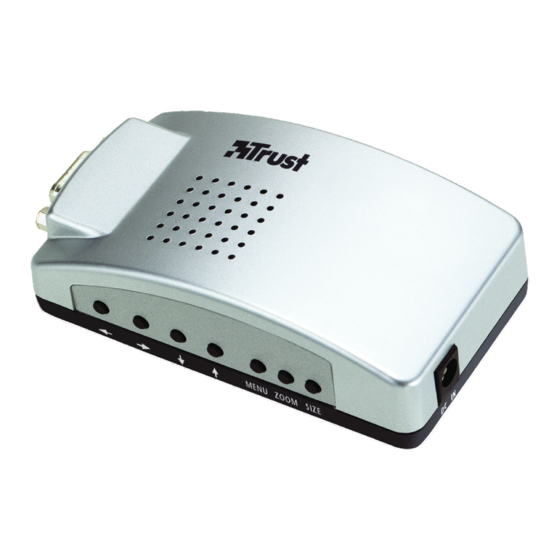

- Page 1 TeleViewer TELEVIEWER User's Manual Version 1.0...
- Page 2 TeleViewer Thank you Thank you very much for purchasing this product from the Trust range. We wish you hours of fun with it. Please read this manual carefully before using the product. Registration Register your purchase now at the Trust Internet site (www.trust.com) and you could win one of the fabulous prizes.
-
Page 3: Table Of Contents
TeleViewer Contents Introduction ......................2 Conventions used in the manual ..............2 Contents of the package ................2 Minimum system requirements ..............2 Safety ........................3 Connection ......................4 Use ........................6 Troubleshooting....................7 Specifications.....................7... -
Page 4: Introduction
TeleViewer 1. Introduction The manual is intended for users of the Trust TeleViewer. Prior knowledge is not necessary to install and use this product. If you have any questions after reading this manual, please contact one of the Trust service centres. You will find information on the service centre nearest to you at the back of this manual. -
Page 5: Safety
2. Safety Before using the product, please read the following instructions carefully. Only use the TeleViewer in dry areas. Disconnect the power plug from the mains supply before cleaning the appliance. Do not use a liquid cleaning product or a spray. Clean the appliance with a damp cloth. -
Page 6: Connection
Connect the (L) plug on the Y cable for VGA to the VGA outlet on your computer and securely tighten the fixing screws (see figure 1). Connect the (J) plug to the (F) plug on the TeleViewer and securely tighten the fixing screws (see figure 1). - Page 7 (see figure 1). Connect the plug (M) to the plug (A) on the TeleViewer. 10. Connect your TV or video recorder to the desired video output on the TeleViewer. You can choose from composite video (C), S-VHS (D) or RGB-video (E) (see figure 1).
-
Page 8: Use
Figure 2: Block diagram for the TeleViewer connections 4. Use You can adjust the picture using the buttons on the TeleViewer. Follow the instructions below to adjust the picture. Using switch 4 (B), switch to the desired video output (see figure 1). Use the screwdriver supplied to switch between outputs. -
Page 9: Troubleshooting
PAL / NTSC settings are Set the correct standard using not correct. switches 1, 2 and 3. Check the FAQ's on Internet (www.trust.com). If you still have problems with your TeleViewer, please contact the Trust Helpdesk. 6. Specifications Inputs Outputs...
