AutoMate Equipment Specific Installation Kit

Fits Raven 4X0/6X0 Rate Controllers

Overview

A series of equipment-specific kits have been developed to allow the interface of

the AutoMate system with your product rate controller.

necessary components and instructions to connect AutoMate with the rate

controllers listed above. Please read this manual thoroughly before beginning the

Unpack the installation kit and identify the required parts as shown.

REF

ITEM

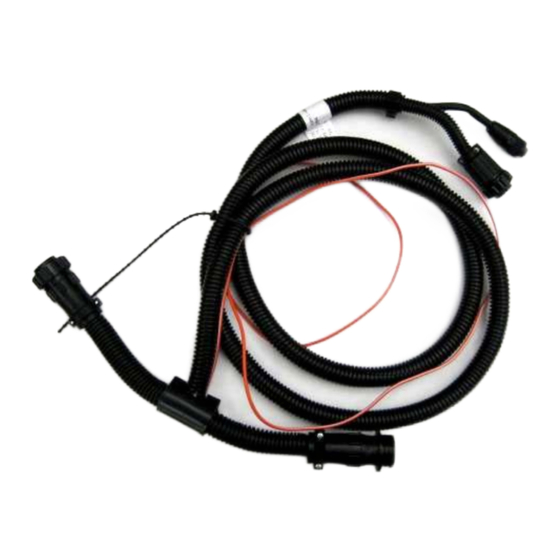

Interface Cable

Tie Straps

Installation

Instructions

September 2007

P/N: 750-3001

QTY

COMMENTS

Raven 4X0/6X0

Black, 13 inch

This kit contains the

PHOTOGRAPH

Not Shown

876-0102 Rev A2

Table of Contents

Do you have a question about the Hemisphere GPS 750-3001 and is the answer not in the manual?

Page 1 AutoMate Equipment Specific Installation Kit P/N: 750-3001 Fits Raven 4X0/6X0 Rate Controllers Overview A series of equipment-specific kits have been developed to allow the interface of the AutoMate system with your product rate controller. This kit contains the necessary components and instructions to connect AutoMate with the rate controllers listed above.
Page 2 Installation: Install the AutoMate interface to the rate controller with the following steps. 1. Disconnect the control cable from the back of your rate controller. Control Cable Fig. 1: Rate Controller 2. Connect the Interface Cable (A) to your rate controller. 3.
Page 3 6. In order for AutoMate to have control of the boom sections the rate controller Master Switch must be in the ON position and the individual section switches must all be in the OFF position. Important: If the conditions of step 6 are met, AutoMate will begin to spray if 1) AutoMate recognizes that it is in an un-...
Page 4 Fig. 1: Schematic AutoMate Specific Installation Kit, Raven 4X0/6X0 Rate Controller - 4 -...
