Summary of Contents for Intelligent Telematics IT1000

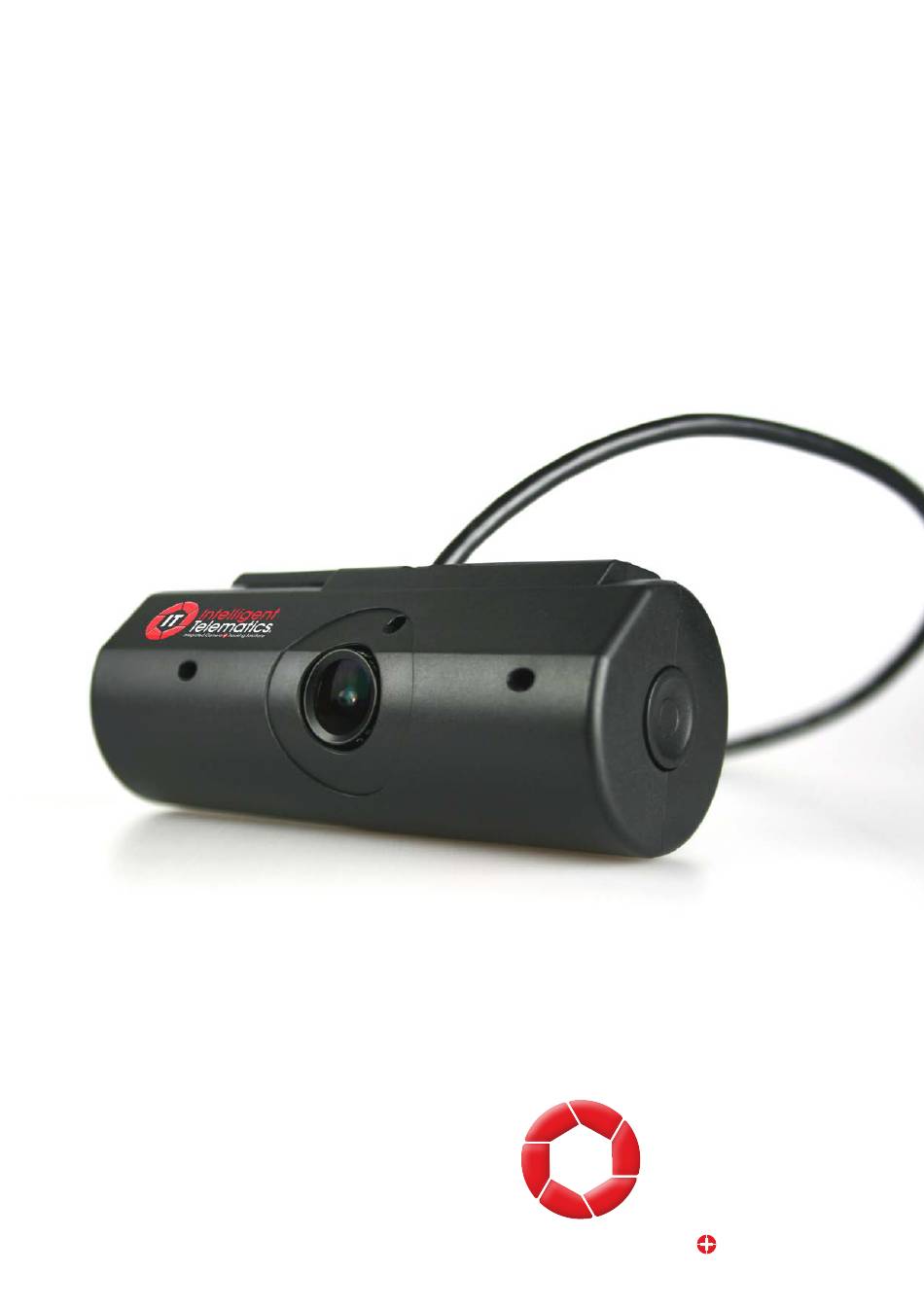

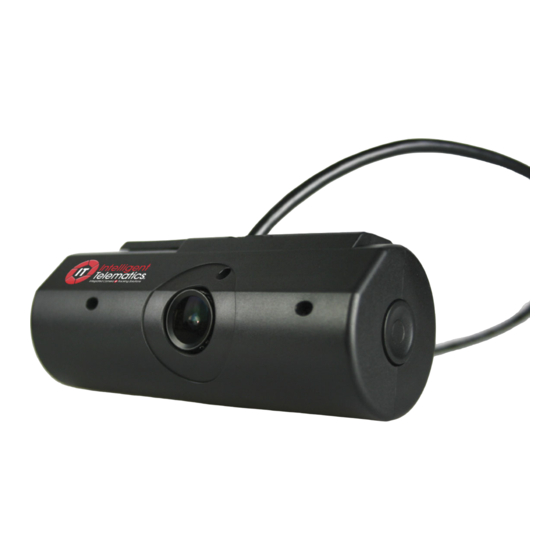

- Page 1 IT1000 3G Vehicle Camera Installation Guide Version: IT2014-001 Intelligent Telematics ® ® Integrated Camera Tracking Solutions...
-
Page 2: Contents Of Box
VPN (Virtual Private Network) ensuring a secure & stable data connection for the IT1000 devices to the specified server. To enable a fully auditable service the data from the IT1000 once stored on the server can only be accessed by authorized personnel, who are designated their own username and password for the server access. - Page 3 Software images and screenshots shown in this manual may differ in appearance from the software being used dependant on the version in use. • The stability of the GSM transmission of the IT1000 unit may vary from country to country dependant on the infrastructure employed by carriers and their reception capabilities. •...
-
Page 4: Glossary Of Terms
IT1000 3G Vehicle Camera Installation Guide Version: IT2014-001 Glossary of Terms Telematic Video System High Dynamic Range Internet Protocol Peer To Peer Transmission Control Protocol GPIO General Purpose Input, Output User Datagram Protocol Short Message Service Global System For Mobile... -
Page 5: Installation
However, further consideration need to be taken to avoid sunscreens and blinds. The IT1000 can be fitted to the bottom of the windscreen providing that it does not encroach in to the swept area by more than 40mm. In this position it is important to wrap the cable down underneath the IT1000 so as to look as neat as possible. -
Page 6: Shield Installation
In vehicles with a rear view mirror in place you can fix the IT1000 in front of or slightly to the left hand side of the mirror so that it is hidden from the drivers view and not a distraction’... - Page 7 In vehicles with a rear view mirror in place you can fix the IT1000 in front of or slightly to the left hand side of the mirror so that it is hidden from the drivers view and not a distraction.
- Page 8 Red 12 – 32v + Permanent Live Brown 12 - 32v—Ground Black 12—32v Ignition Live The IT1000 has a voltage range of 7-32v, when installing the IT1000 you must ensure you connect to a suitable power source within the vehicle in accordance with FCS1362. http://www.fcs.org.uk/my%20files/ fcs_pdfs/codesofpractice/fcs1362_2010.pdf.
-
Page 9: Device Calibration
When you login into the server you will see all your devices and will be able to check the connectivity of the IT1000 installed, a short video will be present along with it’s last connection time to the server and location. -
Page 10: Device Configuration
IT1000 3G Vehicle Camera Installation Guide Version: IT2014-001 Device Configuration The configuration of the IT 1000 can also be updated and amended via the VTS server. Open a browser and enter “travido.info“ into the address line. You then access the login page. - Page 11 IT1000 3G Vehicle Camera Installation Guide Version: IT2014-001 Device Configuration - Continued Click the “edit” button here. You now can edit each device and the “configure” button appears. Device details Click the “Configure“ button. The configuration page appears. Editable device entries...
- Page 12 IT1000 3G Vehicle Camera Installation Guide Version: IT2014-001 Device Configuration - Continued “Configure your device “ - bespoke based on your requirements. Low level When the device reaches this G Force level the camera will store a pre and post instant video but will not send over 3G.
