Summary of Contents for Intelligent Telematics IT1000

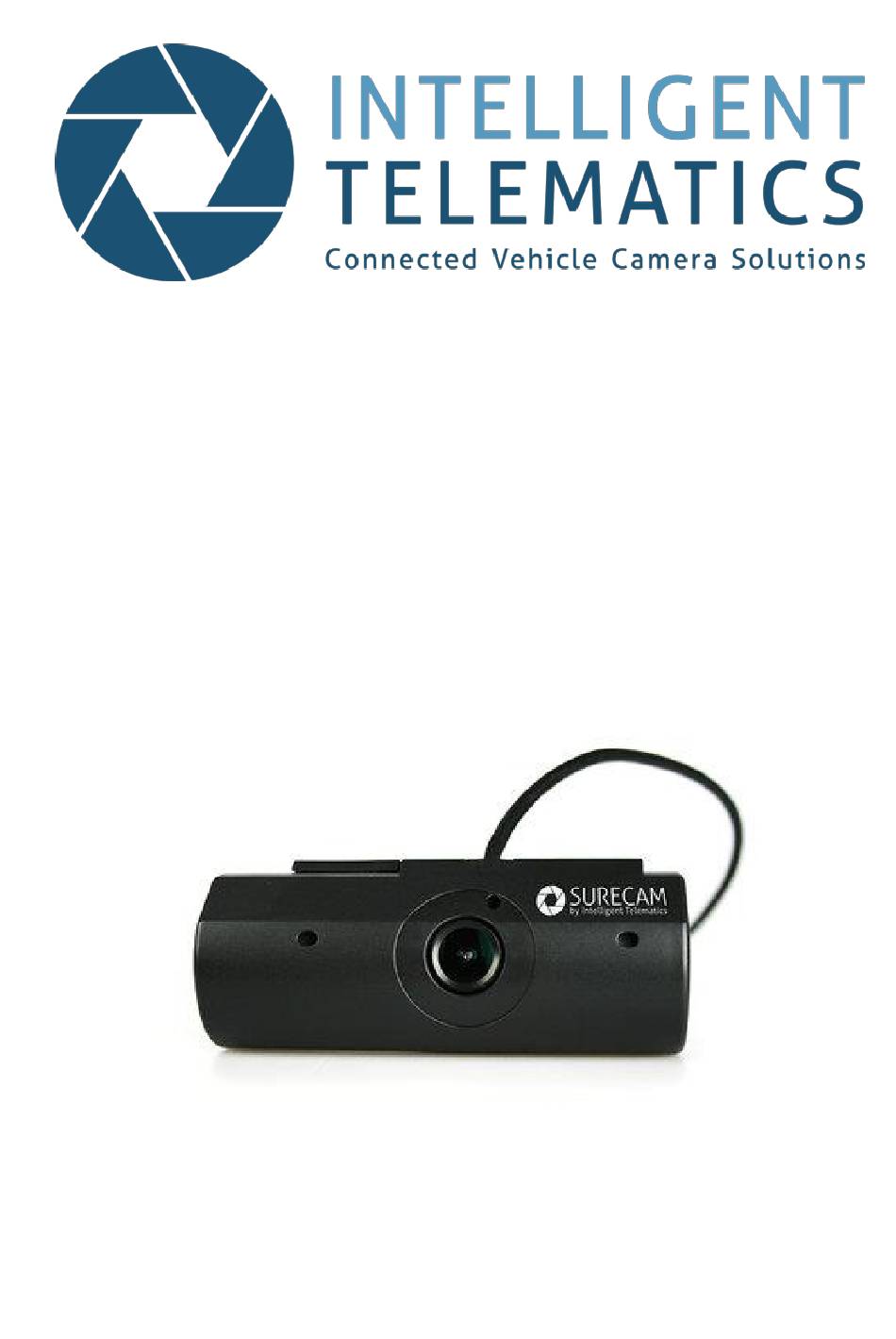

- Page 1 Intelligent Telematics IT1000 Camera Maintenance Guide...
-
Page 2: Table Of Contents
Contents: 1. How to replace SD card – Page 3 2. How to replace SIM card – Page 4 3. How to Replace Camera and Commissioning Process – Page 5 4. How to Replace Triangle Bracket – Page 6 5. How to Replace Adjustable Bracket – Page 7 6. -
Page 3: How To Replace Sd Card
Please ensure that the vehicle ignition is turned off before continuing • If you are reusing an SD card from another IT1000 please ensure that the SD card has been reformatted via your PC. The SD Card can be replaced while still connected to the vehicle there is no need to unplug the camera. -
Page 4: How To Replace Sim Card
How to Replace SIM Card Important Notes: • Please ensure that the vehicle ignition is turned off before continuing The SIM Card can be replaced while still connected to the vehicle there is no need to unplug the camera. Steps: Step 1) Use a 2.5mm Allen key to release the tab at the rear of the windscreen mount, there is no need to fully undo the tab just a few turns will allow you to remove the camera. -
Page 5: How To Replace Camera And Commissioning
How to Replace Camera and Commissioning Process Important Notes: • Please ensure that the vehicle ignition is turned off before continuing. Step 1) Use a 2.5mm Allen key to release the tab at the rear of the windscreen mount, there is no need to fully undo the tab just a few turns will allow you to remove the camera. -
Page 6: How To Replace Triangle Bracket
How to Replace Triangle Bracket Important Notes: • Please ensure that the vehicle ignition is turned off before continuing. • Ensure that you have both the large triangle mount and the tab and screw, these will be needed. Step 1) Turn engine on and place the heating on full and onto the windscreen, place the large mount onto the windscreen vent. -
Page 7: How To Replace Adjustable Bracket
How to Replace Adjustable Bracket Important Notes: • Please ensure that the vehicle ignition is turned off before continuing. Step 1) Turn engine on and place the heating on full and onto the windscreen, place the adjustable mount tape side down onto the windscreen vent. This is to warm both the windscreen and tape so that when it is placed onto the windscreen it bonds correctly. -
Page 8: Basic Fault Diagnostics
Basic Fault Diagnostics The easiest way to diagnose a camera fault is via the VTS server. The server will list camera faults such as an offline device or SD card issues. If a camera is showing as offline there could be a few causes to this: •... -
Page 9: Explanation Of Led Light Status
Explanation of LED Light Status LED Colour LED Flash Pattern Reason For Pattern Solid GPS Connection Orange No GPS Available Solid Modem Error Slow Flash Modem is Connected Correctly Solid Device Ready To Record Flashing Sending Footage To The Server 2 Flashes Struggling To Connect To Server Green...
