INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Activates Reverse camera input in Audi, Porsche and Volkswagen vehicles with 4G systems.
- Rear-view camera input with PDC setting.
- Front camera input with timed activation/deactivation setting.
- On-screen display and setup.
PARTS INCLUDED:
RVCAD-81H Module

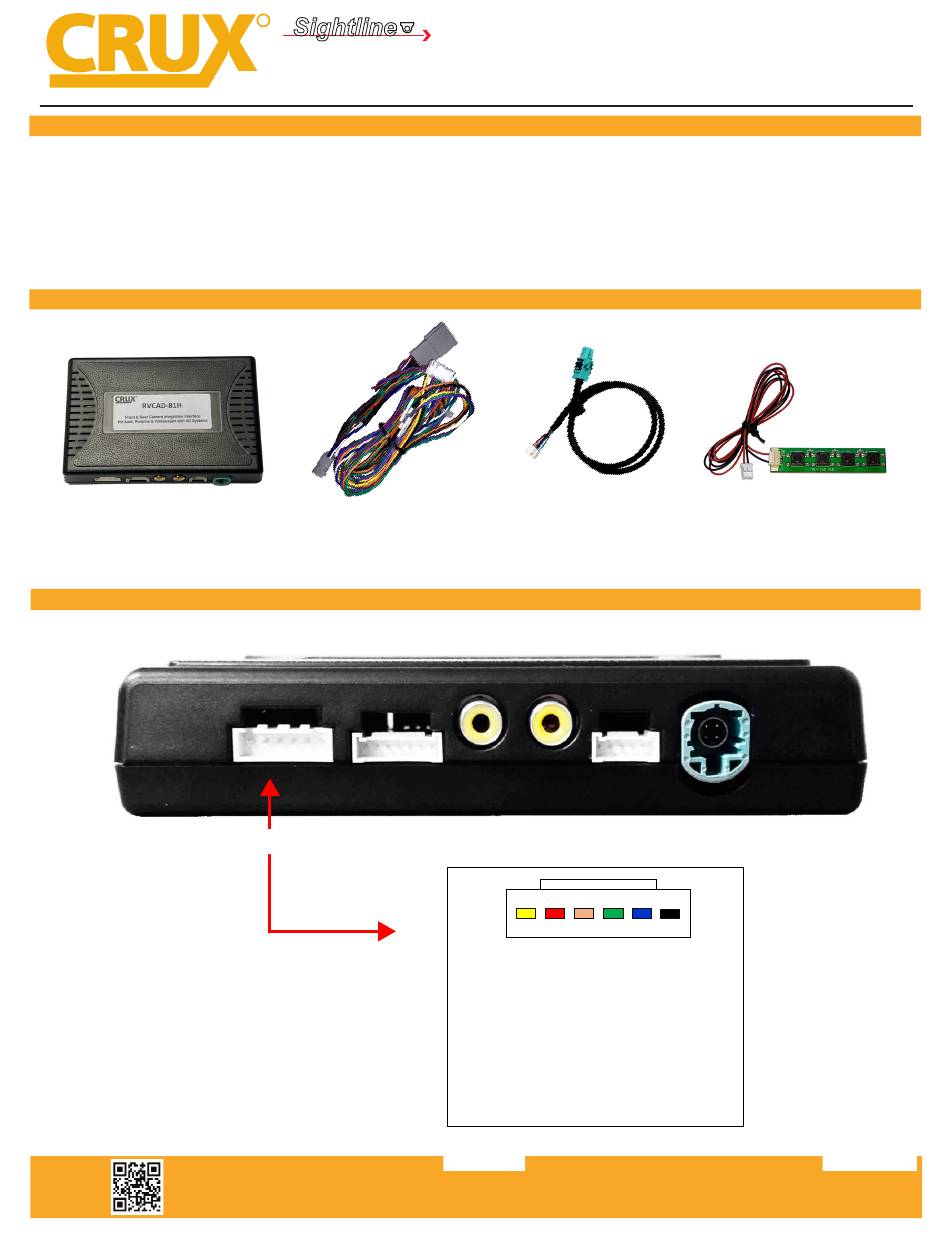

CONNECTOR PIN ASSIGNMENT:
Sightline
R
REAR-VIEW INTEGRATION
AUDI, PORSCHE and VOLKSWAGEN with 4G MIB/MIB1 & PCM4/4.1 Systems
RVCAD-81H Harness
Power/CAN
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

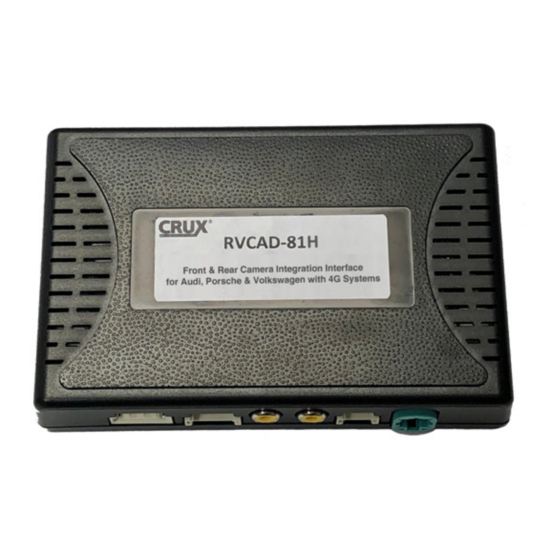

Front & Rear View Integration Interface with AV Inputs for
LVDS Cable
FRONT
REAR
POWER Harness
① ② ③ ④ ⑤ ⑥
① ACC (Yellow)
② FRONT/REAR_POWER (Red)
③ CAN - HIGH (Orange)
④ CAN - LOW (Green)
⑤ MMI (Blue)
⑥ GND (Black)
1 of 8
RVCAD-81H
Programming Keypad
rev.051121
