Crux SOCGM-18L Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.
- Supports non-amplified Systems only.
- Retains chime functions.
- Retains RAP (Retained Accessory Power).
PARTS INCLUDED:

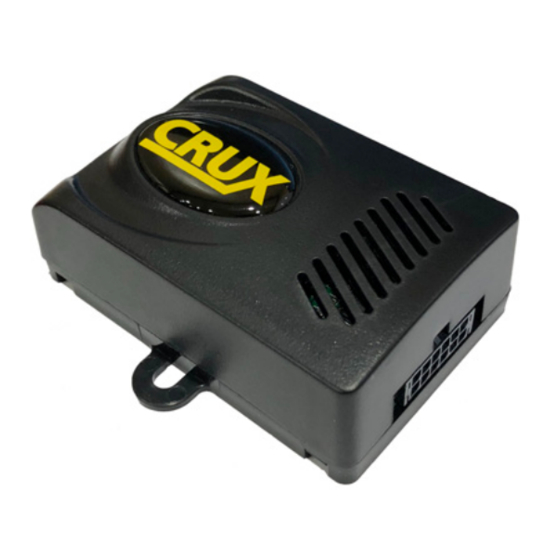

SOCGM-18L Module

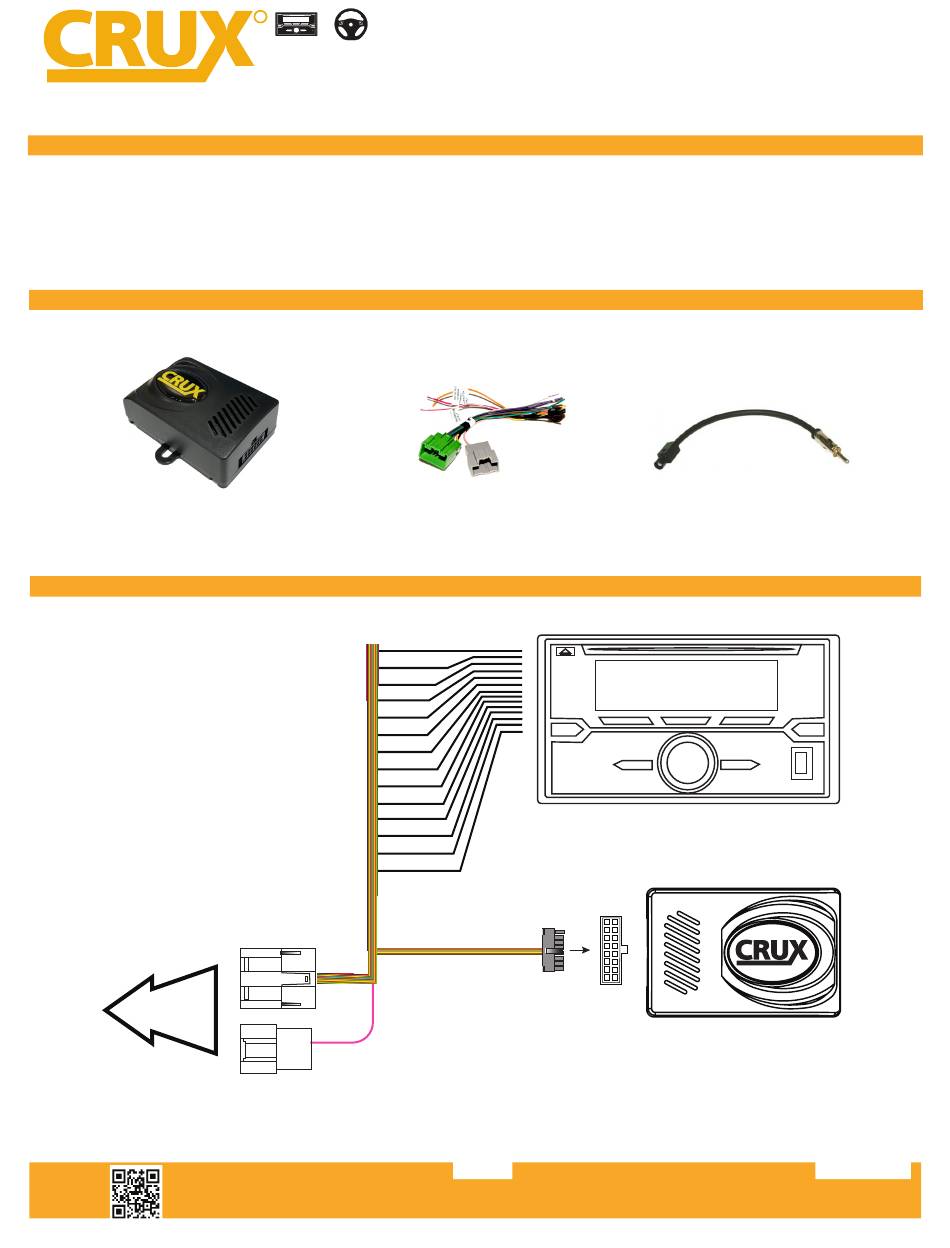

INSTALLATION DIAGRAM:
Illumina�on (+)
+12V Constant
+12V ACC
Right Front (+)
Right Front (-)
Le� Front (+)
Le� Front (-)
Right Rear (+)
Right Rear (-)
Le� Rear (+)
Le� Rear (-)
TO FACTORY
HARNESS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
+
RADIO REPLACEMENT
SWC RETENTION
Reverse Red/White
Orange
Yellow
Red
Ground Black
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
Green
Green/Black
16-Pin Green
Connector
20-Pin Gray
Connector
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SOCGM-18L Harness
16-Pin Black
Connector
1 of 2
SOCGM-18L
Radio Replacement Interface for
GM LAN v2 (LIN) Bus Vehicles
Antenna Adapter
AFTERMARKET
RADIO
INTERFACING SOLUTIONS
rev.071720
